ViewSonic IFP7550 Touchscreen

ViewSonic IFP7550 - Touchscreens, ViewSonic IFP7550, 75? ViewBoard 4K Ultra HD Interactive Flat Panel
  • Ultra HD Resolution
  • 20-point Multi-touch Interactive Screen
  • Qwizdom Oktopus™ and Ximbus™ Solutions
  • Out-of-Box Collaboration
Read More
$3,989.15
Add to Quote
ViewSonic ViewBoard Interactive Touchscreen Model Overview
ViewSonic ViewBoard interactive flat panel displays are the best choice for the ultimate digital whiteboard solution. ViewBoard displays make presentations, brainstorming, and decision-making easier with content sharing and interactive touch at your fingertips. An extraordinarily natural and responsive handwriting experience is provided by the very accurate interactive screen. Multiple users may concurrently write or draw on the massive ViewBoard panel using their fingers, styluses, or both. Over wireless or cable networks, ViewBoard Cast software allows content from mobile devices to be streamed to a ViewSonic display.

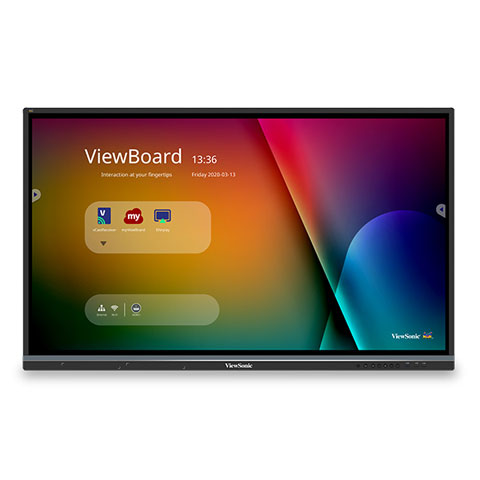

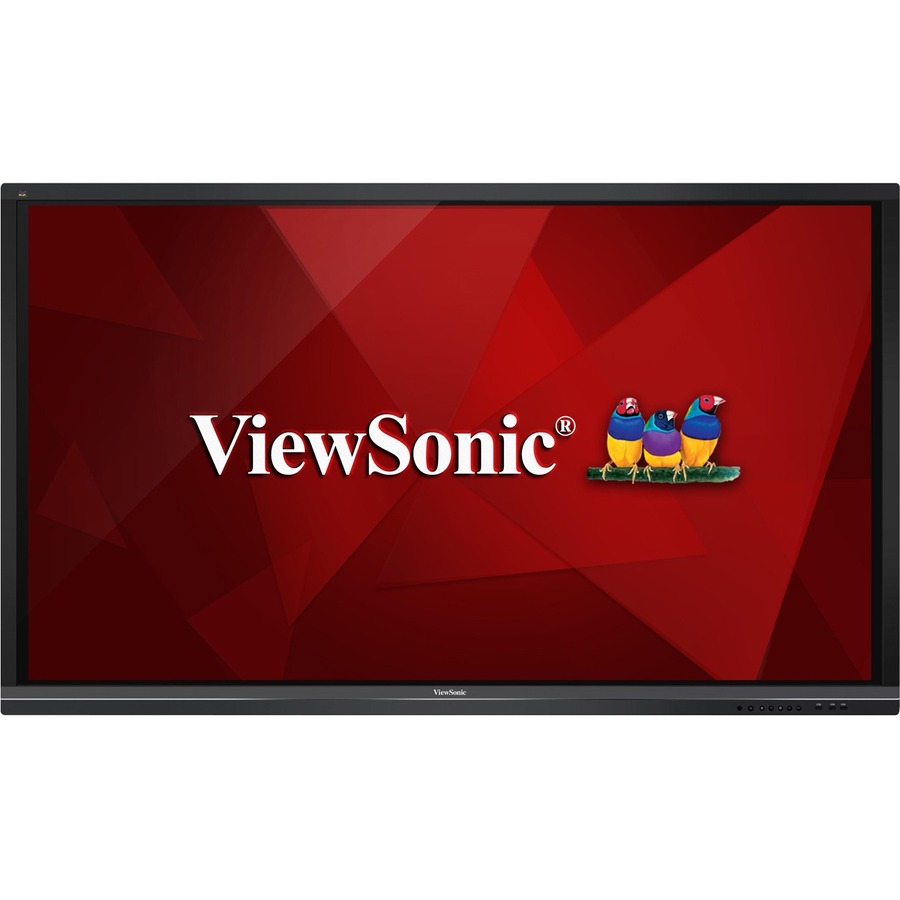

ViewSonic IFP7550 Touchscreen Overview
Featuring 4K Ultra HD resolution and an immersive 20-point touch screen, the ViewSonic® ViewBoard™ IFP7550 delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With vBoard™ Embedded software, this 75" interactive flat panel lets multiple users write or draw on the screen with their fingers and styluses. For more robust annotation options, ViewBoard® Interactive Annotation Software for Windows PC is available via a free download. With a built-in quad-core processor, as well as versatile connectivity options including multiple HDMI, VGA, RS232, RJ45, and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This display delivers optional slot-in PC capability for more computing-intensive interactive applications. The IFP7550 features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.
Display & Graphics
Screen Size:
75"
Display Screen Type:
LCD
Backlight Technology:
LED
Screen Mode:
4K UHD
Screen Resolution:
3840 x 2160
Scan Format:
2160p
Aspect Ratio:
16:9
Response Time:
8 ms
Contrast Ratio:
1,200:1
Brightness:
350 Nit
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Touchscreen Information
Touchscreen:
Yes
Multi-touch Screen:
Yes
Number of Touch Points:
20
Touchscreen Technology:
Infrared (IrDA)
Processor & Chipset
Processor Manufacturer:
ARM
Processor Type:
Cortex A53
Processor Speed:
1.20 GHz
Processor Core:
Quad-core (4 Core)
Memory
Standard Memory:
2 GB
Audio
Speakers:
Yes
Number of Speakers:
2
RMS Output Power:
32 W
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Wireless LAN:
Yes
Interfaces/Ports
HDMI:
Yes
Number of HDMI Inputs:
3
Number of HDMI Outputs:
1
Total Number of USB Ports:
8
Number of USB 2.0 Ports:
3
Number of USB 3.0 Ports:
3
USB:
Yes
Number of Network (RJ-45) Ports:
1
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Number of VGA Ports:
1
VGA:
Yes
Composite Video:
Yes
DisplayPort:
Yes
Serial:
Yes
S/PDIF Out:
Yes
Software
Operating System Platform:
Android
Operating System:
Android 5.1 Lollipop
Software Included:
vBoard Embedded software
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Consumption:
430 W
Physical Characteristics
Color:
Black
VESA Mount Compatible:
Yes
VESA Mount Standard:
800 x 400
Height:
41"
Width:
69.4"
Depth:
11"
Weight (Approximate):
128.97 lb
Miscellaneous
Package Contents:
  • ViewBoard IFP7550 Collaboration Display
  • VGA cable (5 meters)
  • 4 x Power cable (3 meters)
  • Remote control
  • USB cable for touch control (5 meters)
  • Audio cable (5 meters)
  • AV cable
  • 3 x Touching pen
  • ViewSonic CD-ROM Wizard
  • Quick Start Guide
  • RS232 adapter
  • Camera plate
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • cTUVus
  • RoHS
  • WEEE
  • ErP
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
