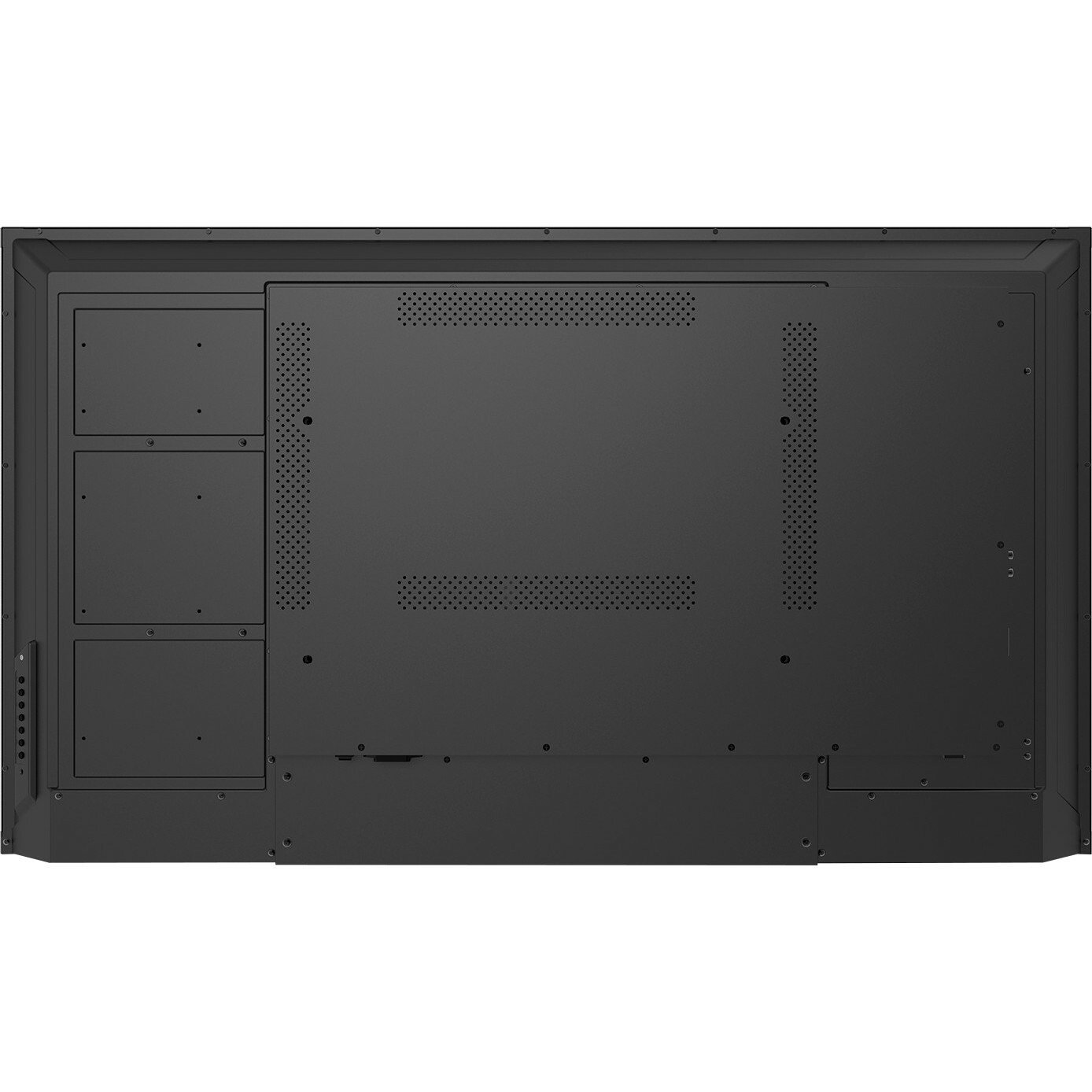

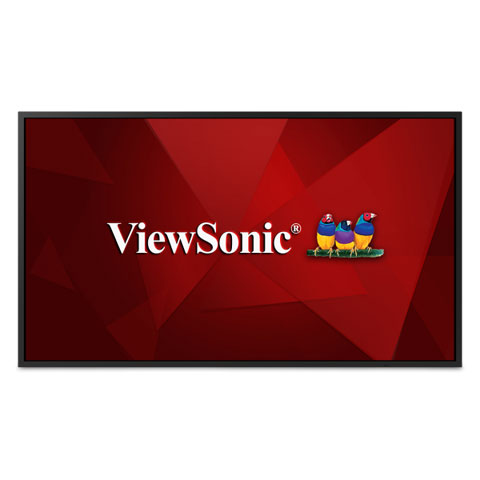

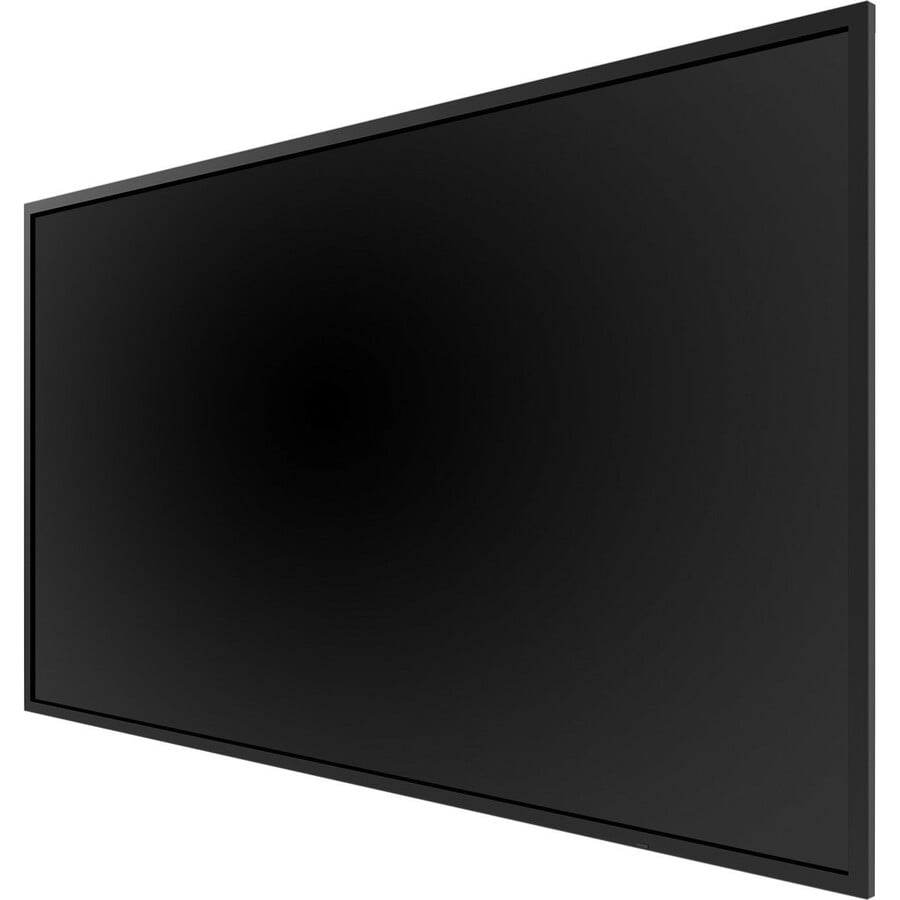

ViewSonic CDE5520 Digital Signage Display

ViewSonic CDE5520 - Digital Signage Display, ViewSonic CDE5520, 55" 4K Ultra HD Large Format Presentation Display,3840 x 2160 Resolution,Powerful All-in-One SoC Platform.
  • Digital Signage Display - Ideal for rack, passageway, booth or display counter
  • 55" Viewsonic Signage Display - Ideal for showing different types of advertisements and content
  • Experience luminescent visual images with LCD display
  • 3840x2160 Display - Delivers a breathtaking ultra HD viewing experience with immersive pictures that are dynamic, clear, and as expansive as life
  • Direct LED lighting offers a brighter picture result
  • 2160p 4K UHD - Regardless of wherever or whenever the content is watched and no matter how detailed it is, this signage system is made to impress its viewers
Read More
$1,217.29
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
ViewSonic Digital Displays Digital Signage Display Model Overview
ViewSonic digital displays provide with everything you need for brilliant digital signage right out of the box, including elegant thin-bezel designs, outstanding resolutions, and simple installation. The process of physical deployment, content generation, and message transmission could not be simpler. For public, retail, and transit contexts, ViewSonic commercial displays create almost seamless, high-impact video walls. These displays deliver clear, colorful pictures with exceptional sound and multimedia performance, thanks to Full HD and 4K Ultra HD resolutions, high brightness, broad viewing angles, and twin stereo speakers.
ViewSonic CDE5520 Digital Signage Display Overview

The ViewSonic® CDE5520 is a 55" premium 4K wireless presentation display. With features including a razor-sharp resolution of 3840 x 2160, 450-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 10W speakers, and wireless screen sharing, the display transforms meeting rooms into dynamic communications hubs. The built-in ViewBoard® screen sharing software, ViewBoard® Cast (along with the optional ViewSonic® vCastSender app), enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with twin dual-core processors, 3GB RAM, and 16GB of internal memory, the CDE5520 can play multimedia from internal storage or a USB flash drive. And with remote configuration and content management system support, the ViewSonic® CDE5520 is also suitable for a wide array of diverse signage applications. Chrome, Android, Windows, Mac OS, and iOS compliant

ULTRA HD RESOLUTION

With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

POWERFUL ALL-IN-ONE SOC PLATFORM

The ViewSonic® EMBEDDED Signage Platform (VESP) is a Linux-based Kernel OS, all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.

FREE VIEWBOARD ® CAST CONTENT SHARING SOFTWARE

ViewBoard® Cast enables content to be streamed from mobile devices onto the display via wireless or cable networks. Multiple users can simultaneously annotate content (such as documents, cloud files, multimedia, etc.) on their devices in real time, and then stream and share that content onto the ViewSonic large format display. One-to-one, one-to-many, and 4-in-1 multi-screen options are also available.

AV CONTROL SYSTEM CERTIFIED

The AV control system is at the heart of all integrated AV systems and impacts the overall effectiveness of the entire system. Proper programming is essential for completing profitable projects, gaining user confidence and client satisfaction, and promoting relationships. These wireless presentation displays are Crestron, Extron and AMX certified.

EMBEDDED LAN AND OPTIONAL WIRELESS CONNECTIVITY

An integrated RJ45 connection, as well as optional Wi-Fi capabilities, provide easy network connection options for content streaming.

CONTINUOUS DISPLAY MAINTENANCE

Included vController™ software provides a simple and intuitive interface for local display management, while an optional 42Gears SureMDM app allows users to monitor and remotely diagnose irregularities from virtually any location.

RELIABLE 24/7 OPERATION

Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.

DUAL INTEGRATED SPEAKERS

Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.

3-YEAR LIMITED WARRANTY

Have peace of mind in the quality and reliability of your ViewSonic display-backed by one of the industry's best pixel performance policies and a 3-year limited warranty.

Technical Information
Bezel Width:
0.55"
Processor & Chipset
Processor Type:
Cortex A73
Processor Speed:
1.40 GHz
Processor Core:
Dual-core (2 Core)
Memory
Standard Memory:
3 GB
Display & Graphics
Screen Size:
55"
Display Screen Type:
LCD
Display Resolution:
3840 x 2160
Backlight Technology:
Direct LED
Video
Scan Format:
2160p
Brightness:
400 Nit
Network & Communication
Ethernet:
Yes
Wireless LAN:
Yes
Interfaces/Ports
USB:
Yes
DVI:
Yes
HDMI:
Yes
Serial:
Yes
Number of USB 2.0 Ports:
2
Number of HDMI Inputs:
2
Number of DVI Ports:
1
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
VESA Mount Standard:
400 x 200
Height:
28.1"
Width:
48.9"
Depth:
2.9"
Weight (Approximate):
37.04 lb
Miscellaneous
Package Contents:
  • CDE5520 Digital Signage Display
  • Remote Control with Batteries
  • Quick Start Guide
  • Power Cable (1.8m)
  • HDMI Cable (1.8m)
  • RS232 Cable (1.8m)
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0766907007244
UPC: 766907007244
EAN: 0766907007244
UNSPSC: 43211902
