Full specifications (PDF)
Bezel Width:
0.51"

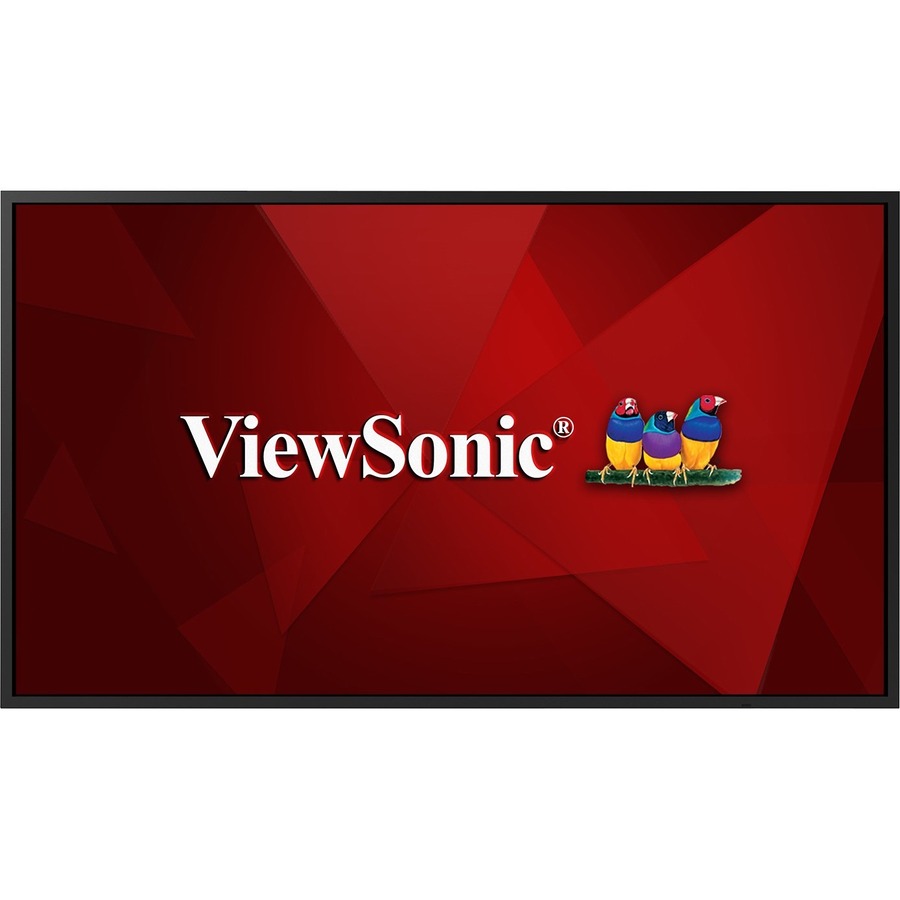

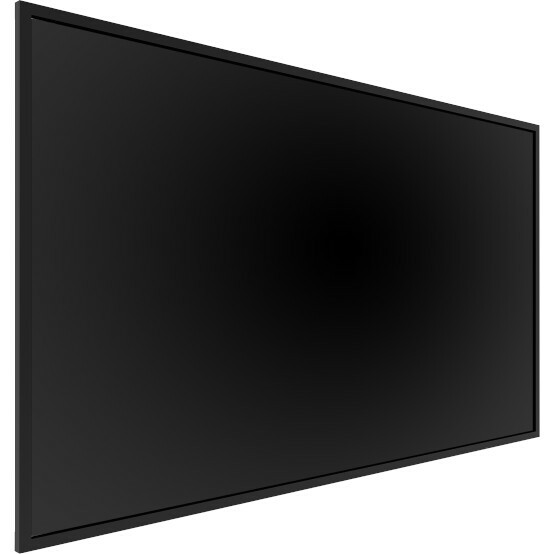

ViewSonic CDE4320-W1 Digital Signage Display
Part Number:
CDE4320-W1
Model:
Digital Displays
ViewSonic Digital Displays Digital Signage Display Model Overview
ViewSonic digital displays provide with everything you need for brilliant digital signage right out of the box, including elegant thin-bezel designs, outstanding resolutions, and simple installation. The process of physical deployment, content generation, and message transmission could not be simpler. For public, retail, and transit contexts, ViewSonic commercial displays create almost seamless, high-impact video walls. These displays deliver clear, colorful pictures with exceptional sound and multimedia performance, thanks to Full HD and 4K Ultra HD resolutions, high brightness, broad viewing angles, and twin stereo speakers.
ViewSonic CDE4320-W1 Digital Signage Display Overview
The ViewSonic® CDE4320 is a 43'' (42.51" viewable) premium 4K large format presentation display purpose-built to deliver eye-catching imagery for hotels, restaurants, retail, business, and more. With stunning 3840x2160 resolution, 350-nit high brightness, wide viewing angles, and dual 10W speakers, this display provides immersive, high-impact messaging wherever needed. In addition to HDMI and DVI inputs to connect with various high definition devices, this display utilizes an integrated multi-core processor and 16GB of internal memory, allowing customers to playback multimedia content via USB without the need for a PC. To make life even easier, the bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop, and its flicker-free and blue light filter technologies help provide a comfortable viewing environment. Bundle includes display and USB Wi-Fi adapter.
Technical Information
Processor & Chipset
Processor Manufacturer:
ARM
Processor Type:
Cortex A73
Processor Speed:
1.40 GHz
Processor Core:
Quad-core (4 Core)
Memory
Standard Memory:
3 GB
Memory Technology:
DDR4 SDRAM
Display & Graphics
Screen Size:
42.5"
Display Screen Type:
LCD
Display Resolution:
3840 x 2160
Backlight Technology:
Direct LED
Video
Scan Format:
2160p
Color Depth:
8-bit+FRC
Brightness:
350 Nit
Network & Communication
Ethernet:
Yes
Interfaces/Ports
USB:
Yes
DVI:
Yes
HDMI:
Yes
Serial:
Yes
Number of USB 2.0 Ports:
2
Number of DVI Ports:
1
Software
Operating System:
Android 8.0 Oreo
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
VESA Mount Standard:
400 x 200
Mount Type:
Wall Mountable
Height:
21.9"
Width:
38.2"
Depth:
3.3"
Weight (Approximate):
23.20 lb
Miscellaneous
Package Contents:
- 43" Display, 24/7
- Remote control
- Batteries
- Quick Start Guide
- Power cable
- HDMI Cable
- RS232 cable
- USB Wi-Fi adapter
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC:
43211902
