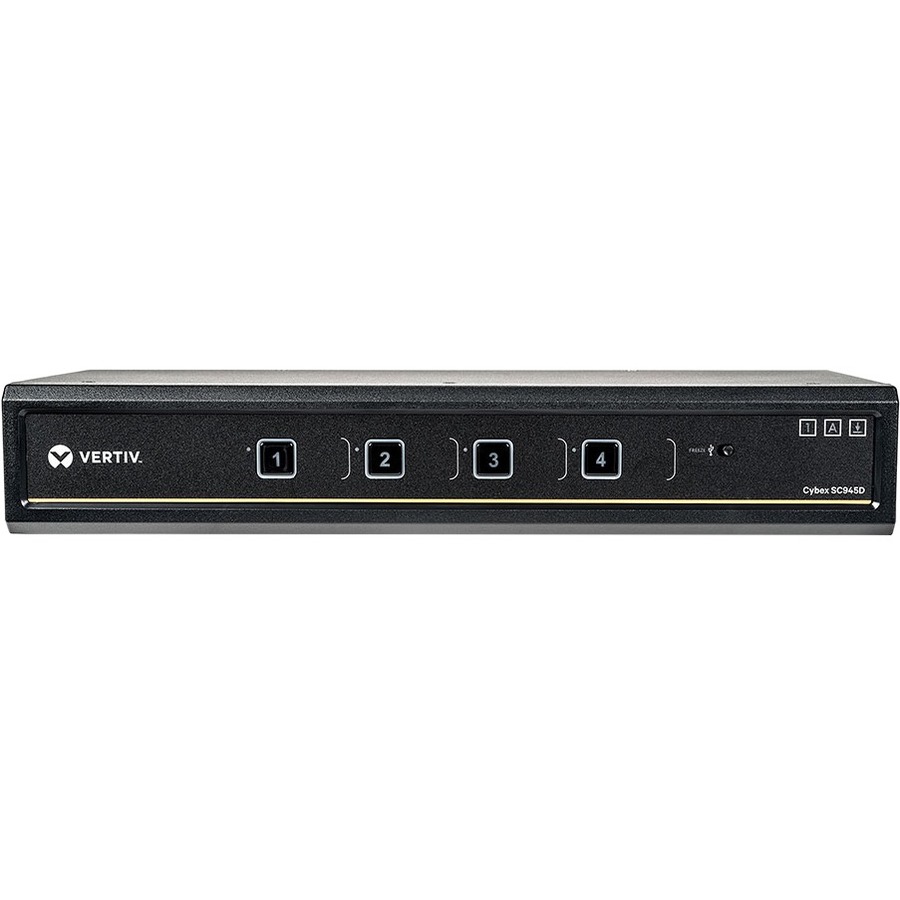

Vertiv SC945D-001 Network Switch

Part Number: SC945D-001
Model: Parts

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Computers Supported
4
Number of Local Users Supported
1
Device Type
Secure Desktop KVM
Maximum Video Resolution
3840 x 2160

Product Description:

  Vertiv Cybex SC900 Secure Desktop KVM|4 Port Dual-Head|DisplayPort DPP| TAA, 4K UHD | NIAP PP 3.0 Compliant | Audio/USB | Secure Isolated Channels | 3-Year Full Coverage Factory Warranty, Optional Extended Warranty Available

Vertiv Parts Security Equipment Model Overview

Parts and products from Vertiv.
Vertiv SC945D-001 Network Switch Overview

The Vertiv Cybex SC900 Secure Desktop KVM Switches (SC945D-001) are TAA compliant, 4 Port KVM switches with DisplayPort video type and Dedicated Peripheral Port (DPP). They guard against desktop cyber intrusion in government agencies and security conscientious organizations. These switches meet the NIAP Protection Profile (PP) for Peripheral Sharing Switch (PSS) v.3.0. They allow users to switch safely and securely between computers operating at different classification levels from a single set of peripherals, providing continuous access to critical data. The SC900 series models support 2, 4, or 8 networks, a single monitor and Common Access Cards (CAC) through a dedicated port. They provide high resolution up to 4K UHD @ 30 Hz and compatibility using HDMI, DisplayPort, and DVI technology. A CAC port provides secure connection for user authentication, and an optional Dedicated Peripheral Port (DPP) provides secure connection to CAC readers and other authentication devices.

More from the Manufacturer

Technical Information
Number of Computers Supported:
4
Number of Local Users Supported:
1
Device Type:
Secure Desktop KVM
Video
Maximum Video Resolution:
3840 x 2160

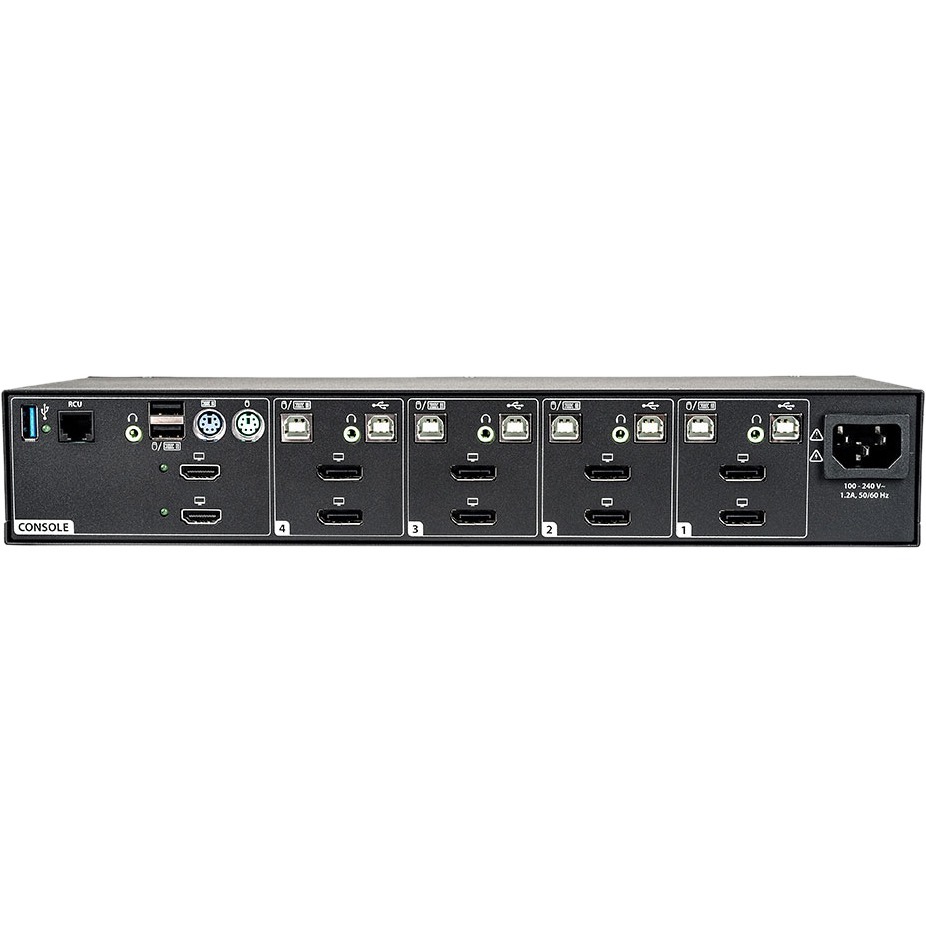

Interfaces/Ports
PS/2 Port:
Yes
USB:
Yes
HDMI:
Yes
DisplayPort:
Yes
Number of PS/2 Ports:
2
Number of USB Ports:
11
Number of HDMI Ports:
2
Number of DisplayPorts:
8
Physical Characteristics
Form Factor:
Desktop
Height:
2.2"
Width:
13.7"
Depth:
5"
Weight (Approximate):
3.70 lb
Miscellaneous
Country of Origin:
United States
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0636430075051, 0818214480088, 0818214996107, 0818240120507
UPC: 636430075051, 818214480088, 818214996107, 818240120507
EAN: 0636430075051, 0818214480088, 0818214996107, 0818240120507
UNSPSC: 43211601
