Vertiv SC845DPH-400 Ethernet Switch

Part Number: SC845DPH-400
Model: Parts
Add to My Shopping List Add to Compare
$1,082.37

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
KVM Technology
Digital & Analog
Connectivity Technology
Wired
Number of Computers Supported
4
Number of Local Users Supported
1

Product Description:

  Vertiv Cybex SC800 Secure KVM| 4 Port Universal DP/H Single Display| CAC PP4.0, Secure Desktop KVM Switches | Secure KVM Switch | Single Head | NIAP Certified | Secure Keyboard | 2 to 8 Port, Secure Isolated Channels | Running up to UHD 4K at 60Hz | 3-Year Full Coverage Factory Warranty, Optional Extended Warranty Available
Explore all Vertiv Parts Security Equipments
Add to Quote
Vertiv SC845DPH-400 Ethernet Switch
Vertiv SC845DPH-400 Ethernet Switch
Vertiv SC845DPH-400 Ethernet Switch Vertiv SC845DPH-400 Ethernet Switch

Vertiv Parts Security Equipment Model Overview

Parts and products from Vertiv.
Vertiv SC845DPH-400 Ethernet Switch Overview

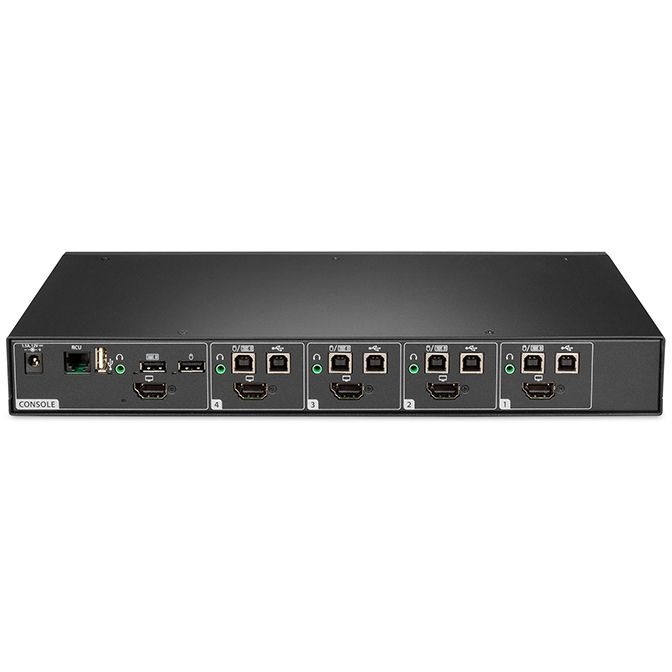

The Vertiv Avocent Cybex SC845DPH-400 secure desktop KVM switch provides secure connectivity across multiple resources. It lets users switch between computers with different security levels while preventing data leaks. Designed for security-conscious organizations, the SC845DPH-400 isolates each connected system, enforcing unidirectional data flow to safeguard sensitive information. It supports a maximum resolution of 3840 x 2160 at 60 Hz on a single display, delivering crisp, clear visuals. The four universal video ports (DisplayPort and HDMI) allow easy connection of up to two systems, while a 3.5mm audio jack supports alerts and notifications. Certified to the latest NIAP Common Criteria Protection Profile for Peripheral Sharing Switch (version 4.0), the SC845DPH-400 also features active intrusion detection and tamper-evident labels to alert users of unauthorized access. With a universal power supply and 4K support, it offers both security and performance in a streamlined solution.

More from the Manufacturer

Technical Information
KVM Technology:
Digital & Analog
Connectivity Technology:
Wired
Number of Computers Supported:
4
Number of Local Users Supported:
1
Number of Remote Users Supported:
0
Maximum Operating Distance:
10 ft
Device Type:
Secure KVM
Features:
  • Tamper Resistant
  • Intrusion Detection
Video
Graphic Mode:
4K
Maximum Video Resolution:
3840 x 2160
Interfaces/Ports
Network (RJ-45):
No
PS/2 Port:
Yes
USB:
Yes
HDMI:
Yes
DVI:
No
VGA:
No
DisplayPort:
Yes
Management Port:
No
Number of Network (RJ-45) Ports:
0
Number of PS/2 Ports:
4
Number of USB Ports:
3
Number of HDMI Ports:
4
Number of DVI Ports:
0
Number of VGA Ports:
0
Number of DisplayPorts:
4
Power Description
Input Voltage Range:
100VAC-240VAC
Physical Characteristics
Form Factor:
  • Desktop
  • Rack-mountable
Rack Height:
1U
Height:
1.7"
Width:
13.7"
Depth:
5"
Weight (Approximate):
3 lb
Miscellaneous
Package Contents:
  • Cybex SC800 Secure Desktop KVM, TAA Compliant (SC845DPH-400)
  • Power Supply
Certifications & Standards:

NIAP 4.0 Certified

Energy Star:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0636430089638
UPC: 636430089638
EAN: 0636430089638
UNSPSC: 43211604
