Vertiv LV5020P-001 Ethernet Switch

Part Number: LV5020P-001
Model: Parts
$2,430.53

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wired
Number of Computers Supported
1
Number of Remote Users Supported
1
Maximum Operating Distance
330 ft

Product Description:

  Vertiv Avocent LongView, Dual Monitor, USB, Audio, CATx up to 100m / 330ft, LongView DP, audio, CatX Extender 150 Meters/500 ft (Single Head 4K 30 Hz Support)

Vertiv Parts Security Equipment Model Overview

Parts and products from Vertiv.
Vertiv LV5020P-001 Ethernet Switch Overview

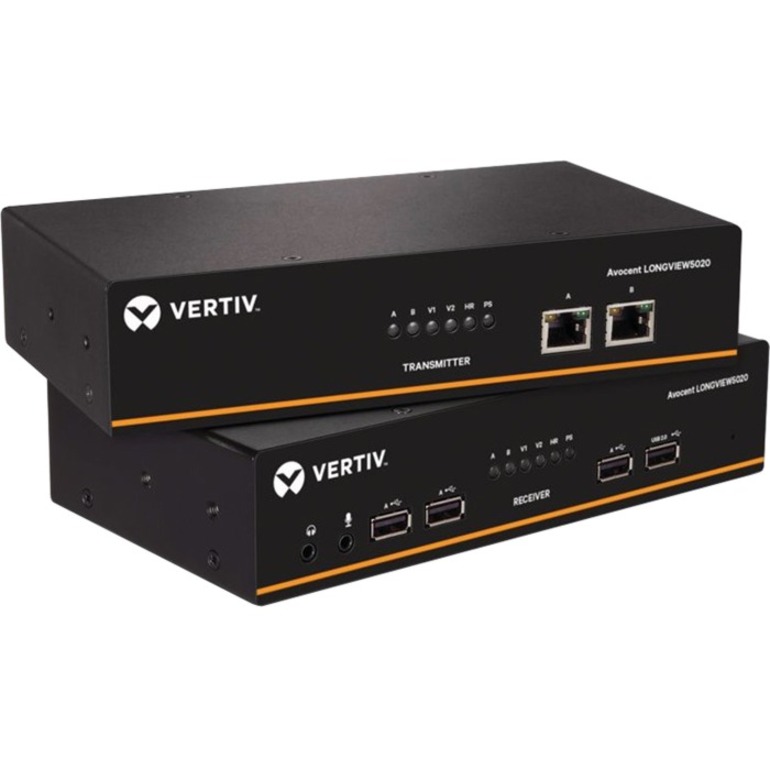

The Vertiv™ Avocent® LongView 5020 KVM Extender Kit uses DisplayPort technology to provide ultra-high-resolution 4K (3840x2160) video transmission and remote KVM control. The LV5020P extends the distance between the user and their computing system by up to 330 feet, making it ideal for environments such as broadcast, IT, industrial operations, transportation, emergency management, and military applications. With pixel-perfect video quality and seamless KVM functionality, this extender moves critical computing assets to secure, climate-controlled locations without compromising performance. It supports instant, lag-free interaction with human interface devices like keyboards, mice, webcams, and touchscreens. The LV5020P ensures smooth performance with no signal degradation or delays, making it an ideal solution for high-performance, mission-critical setups.

More from the Manufacturer

Technical Information
Connectivity Technology:
Wired
Number of Computers Supported:
1
Number of Remote Users Supported:
1
Maximum Operating Distance:
330 ft
Device Type:
KVM Extender
Video
Graphic Mode:
4K
Maximum Video Resolution:
3840 x 2160
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
DisplayPort:
Yes
Number of Network (RJ-45) Ports:
6
Number of USB Ports:
6
Power Description
Input Voltage:
  • 120 V AC
  • 240 V AC
Input Voltage Range:
100V AC to 240V AC
Power Consumption:
20 W
Physical Characteristics
Rack Height:
1U
Form Factor:
Rack-mountable
Transmitter Height:
1"
Transmitter Width:
4.70"
Transmitter Depth:
3"
Receiver Height:
1.76"
Receiver Width:
7.92"
Receiver Depth:
4.80"
Transmitter Weight (Approximate):
1.65 lb
Receiver Weight (Approximate):
1.65 lb
Miscellaneous
Package Contents:
  • LongView Dual Display Port,USB,audio,CATx 150M
  • Power Adapter
Certifications & Standards:
  • CE
  • FCC
  • UL
Country of Origin:
United States
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0636430078786
UPC: 636430078786
EAN: 0636430078786
UNSPSC: 43211604
