Vertiv LV3010P-001 Network Switch

Part Number: LV3010P-001
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$1,258.57
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wired
Number of Local Users Supported
1
Number of Remote Users Supported
1
Maximum Operating Distance
1000 ft

Product Description:

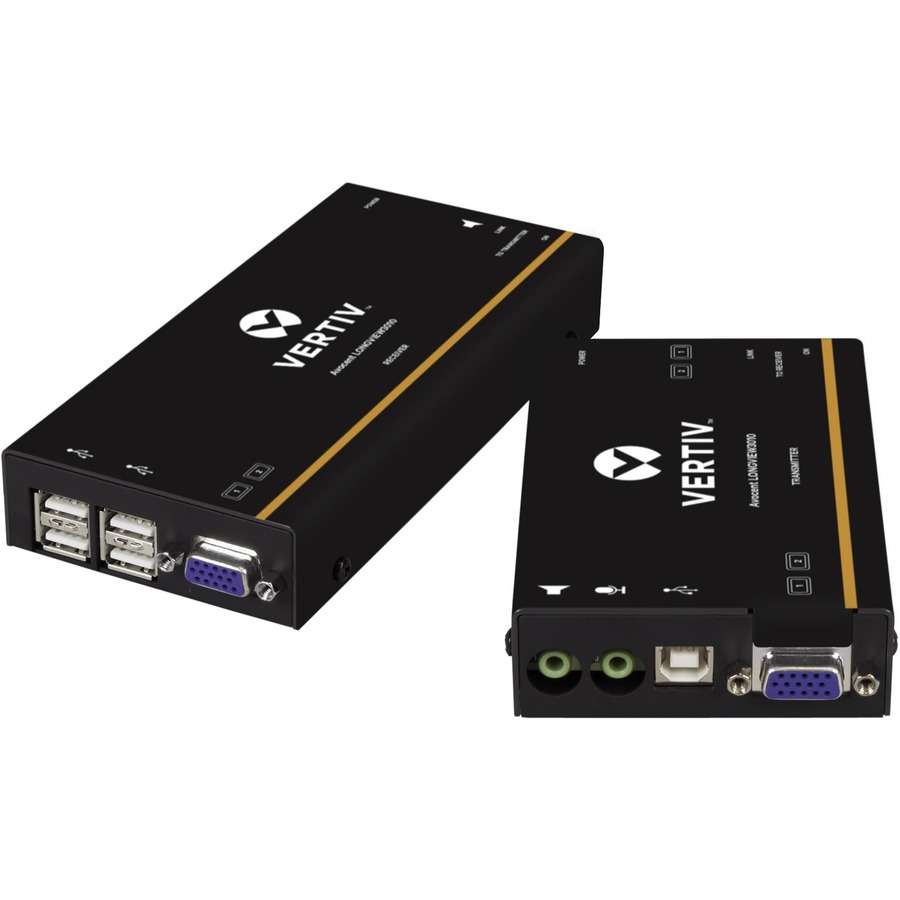

  Vertiv Avocent LV 3000 Series High Quality KVM Extender Kit with Receiver & Transmitter, LongView, Single Display, 1920x1200 VGA, USB, Audio, 300m Extender
Explore all Vertiv Parts Security Equipments
Add to Quote
Vertiv LV3010P-001 Network Switch
Vertiv LV3010P-001 Network Switch

Vertiv Parts Security Equipment Model Overview

Parts and products from Vertiv.
Vertiv LV3010P-001 Network Switch Overview

The Vertiv Avocent LV 3000 High-Performance KVM Extender allows computing assets to be in secure, climate-controlled environments up to 1,000 ft. away from the workstation while still delivering seamless and instantaneous KVM control. The extender supports VGA transmission for single and multi-screen desktops with a single VGA, USB, Audio, or CATx cable. Pass through ports allow use of a local console at the transmitter and/or receiver as needed. The Avocent LV 3000 supports up to four USB 2.0 devices, including isochronous devices such as webcams, joysticks and touchscreens. The Avocent LV 5000 high-performance KVM extender does not require on-site configuration, plug them in, and start working right away without drivers or software to install. Bring order to environments that can't afford unnecessary complexity with the Vertiv Avocent LV 3000 High-Performance KVM Extender Kit.

More from the Manufacturer

Technical Information
Connectivity Technology:
Wired
Number of Local Users Supported:
1
Number of Remote Users Supported:
1
Maximum Operating Distance:
1000 ft
Device Type:
KVM Extender
Video
Graphic Mode:
WUXGA
Maximum Video Resolution:
1920 x 1200
Interfaces/Ports
USB:
Yes
VGA:
Yes
Number of VGA Ports:
1
Number of USB Ports:
4
Power Description
Input Voltage:
  • 120 V AC
  • 240 V AC
Input Voltage Range:
120V AC to 230V AC
Power Consumption:
12 W
Physical Characteristics
Form Factor:
Rack-mountable
Transmitter Height:
3"
Transmitter Width:
6.10"
Transmitter Depth:
1"
Receiver Height:
3"
Receiver Width:
6.10"
Receiver Depth:
1"
Transmitter Weight (Approximate):
2.09 lb
Receiver Weight (Approximate):
2.09 lb
Miscellaneous
Platform Supported:
PC
Country of Origin:
United Kingdom
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0636430078090, 0818240545645
UPC: 636430078090, 818240545645
EAN: 0636430078090, 0818240545645
UNSPSC: 43211603
