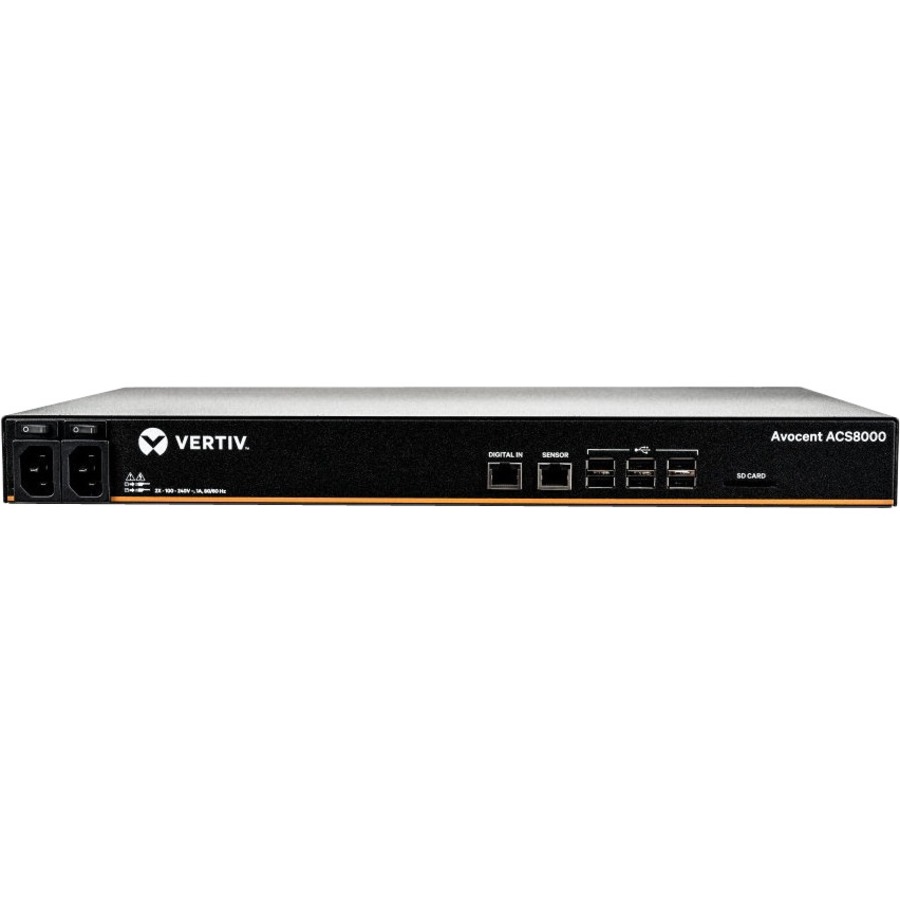

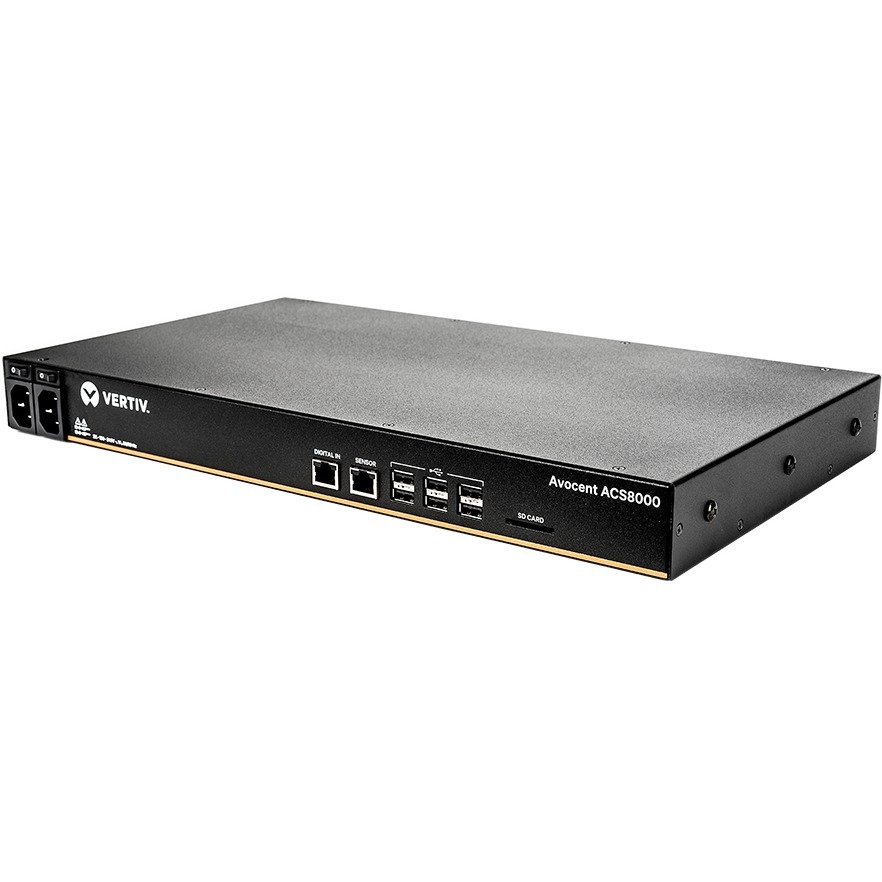

Vertiv ACS8048DAC-400 Data Networking

Vertiv ACS8048DAC-400 Data Networking

Vertiv - Vertiv Avocent ACS8000 Serial Console, 48 port Console Server | Dual AC, Advanced Serial Console Server | Remote Console | In-band and Out-of-band Connectivity | 48 port rs232 terminal | Dual AC power | 2-Year Full Coverage Factory Warranty, Optional Extended Warranty Available |TAA Compliant

Serial console provides in-band and out-of-band connectivity and control for connected devices.
Console's single-IP address management acts as IoT gateway for sensors and digital inputs/outputs.
Console's single-point-of-entry security for downstream equipment has customizable access levels.
Serial console comes with auto discovery, auto pin-out conversions, and native command settings.
The 8 USB and environmental sensor ports support external devices and environmental monitoring.

Read More

Need a different version? See all Vertiv Parts Security Equipments

$7,012.58

Chat Now for Qty Discount

Vertiv ACS8048DAC-400 Data Networking

Vertiv ACS8048DAC-400 Data Networking

Vertiv Parts Security Equipment Model Overview

Parts and products from Vertiv.

Vertiv ACS8048DAC-400 Data Networking Overview

The Vertiv Avocent ACS8000 Advanced Console Server system integrates connectivity features for secure in-band and out-of-band network remote management of IT assets from anywhere in the world. It includes a 48 port console server and dual AC power supply. The serial console system helps maximize IT asset productivity while providing scalability and reducing operational costs for a range of applications from insurance and financial institutions, to education, government, healthcare, oil and gas, the military, retail/wholesale and more.

More from the Manufacturer

Technical Information

Device Type:

Console Server

Processor & Chipset

Processor Manufacturer:

ARM

Memory

Standard Memory:

1 GB

Memory Technology:

DDR3 SDRAM

Maximum Memory Supported:

16 GB

Media & Performance

Media Type Supported:

Twisted Pair
Optical Fiber

Wireless Specifications

Wireless LAN:

No

Network & Communication

Ethernet Technology:

Gigabit Ethernet

Network Standard:

10/100/1000Base-T
1000Base-X

Interfaces/Ports

Network (RJ-45):

Yes

USB:

Yes

Serial Port:

Yes

Parallel Port:

No

Centronics Port:

No

PoE (RJ-45) Port:

No

Number of Network (RJ-45) Ports:

2

Number of USB Ports:

8

Number of Serial Ports:

48

Physical Characteristics

Form Factor:

Rack-mountable

Height:

1.8"

Width:

17.3"

Depth:

9.5"

Weight (Approximate):

7.20 lb

Miscellaneous

Country of Origin:

Mexico

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0000013490287, 0636430079127

UPC: 000013490287, 636430079127

EAN: 0000013490287, 0636430079127

UNSPSC: 43222625
