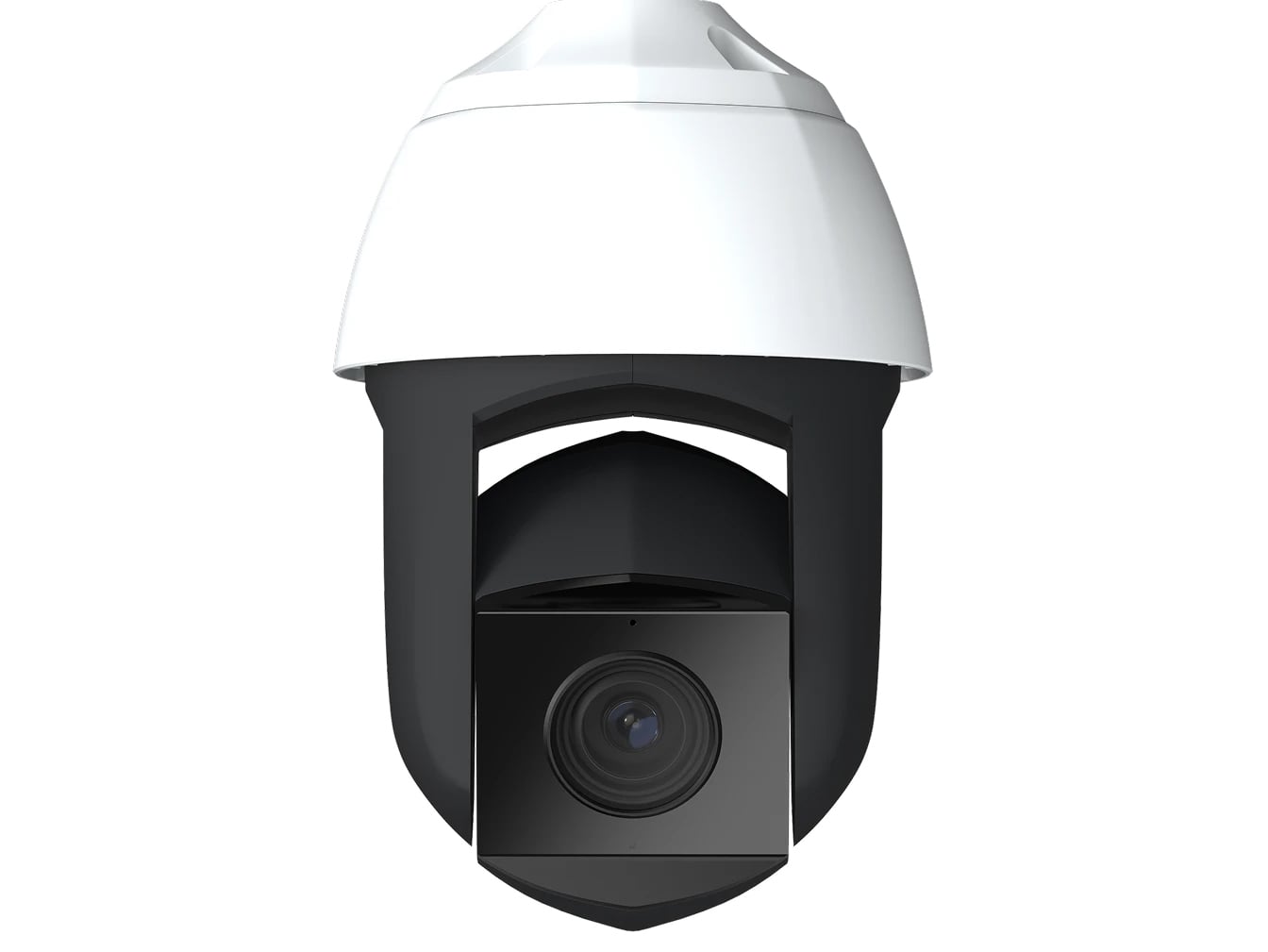

Verkada CP63-2TBE-HW Surveillance Camera
Full specifications (PDF)
Verkada CP63-E Surveillance Camera Model Overview
Key Features
- Superior Image Quality: 4K resolution with a large CMOS sensor
- Advanced Analytics: AI-powered alerts and search functions
- Automated Monitoring: Support for multiple context cameras in Sentry Mode
- Durability: IP66 weather rating and IK10 impact rating for all-weather protection
- Hybrid Cloud Architecture: Onboard storage up to 3TB with cloud backup
Specifications
- Camera Features:
- Image Sensor: 1/1.8" Progressive CMOS
- Resolution: 4K (3840 x 2160)
- Lens Type: Varifocal with motorized zoom
- IR Range: 100m / 328ft
- Minimum Illumination: 0.02 lux @ F1.4 (Color)
- Power and Network:
- Power Input: IEEE 802.3bt Type 3 PoE++
- Connectivity: RJ-45 connector for network/PoE
- Operating Conditions:
- Temperature: -40°C to 50°C / -40°F to 122°F
- Humidity: 0 to 90%
- Dimensions:
- Weight: 7.53 kg / 16.6 lbs
- Size: 256.0mm x 406.0mm / 10.08in x 15.98in with pendant cap
Frequently Asked Questions
What are the key specifications of the Verkada CP63-E surveillance camera?
The Verkada CP63-E features a 1/1.8" progressive CMOS sensor with 4K resolution (3840 x 2160), a varifocal lens with 32x motorized optical zoom, and a 100-meter IR range for nighttime visibility. It operates on IEEE 802.3bt Type 3 PoE++ power input and supports an operating temperature range of -40°C to 50°C with IP66 weather rating and IK10 impact rating for all-weather durability. We offer this model with onboard storage up to 3TB and hybrid cloud backup capabilities.
Is the Verkada CP63-E suitable for large outdoor areas like parking lots and stadiums?
Yes, the CP63-E is specifically designed for monitoring expansive areas such as stadiums and parking lots. Its 32x motorized optical zoom, 4K resolution, and 100-meter IR range provide comprehensive coverage and detail for large surveillance zones. The camera's IP66 weather rating and robust construction make it ideal for demanding outdoor environments.
What AI analytics and automated monitoring features does this camera offer?
The Verkada CP63-E is powered by an advanced Ambarella processor that delivers AI-powered analytics including person of interest alerts and crowd detection capabilities. The camera supports automated monitoring through Sentry Mode with multiple context cameras, enabling precision surveillance and intelligent threat detection without manual intervention.
What are the power and connectivity requirements for the Verkada CP63-E?
The CP63-E uses IEEE 802.3bt Type 3 PoE++ for power input, eliminating the need for separate power cables in most installations. Connectivity is provided via an RJ-45 connector for both network and PoE delivery, simplifying deployment in warehouse, logistics, and facility management environments.
How much onboard storage does the Verkada CP63-E provide?
The Verkada CP63-E supports onboard storage up to 3TB with hybrid cloud architecture, providing up to 60 days of video retention depending on resolution and frame rate settings. This combination of local and cloud backup ensures continuous surveillance data protection and accessibility.
What is the low-light performance of the CP63-E camera?
The camera delivers exceptional low-light performance with a minimum illumination of 0.02 lux at F1.4 in color mode, combined with a 100-meter IR range for reliable nighttime visibility. This makes it suitable for 24/7 surveillance in outdoor areas with minimal ambient lighting, such as parking facilities and perimeter monitoring.
