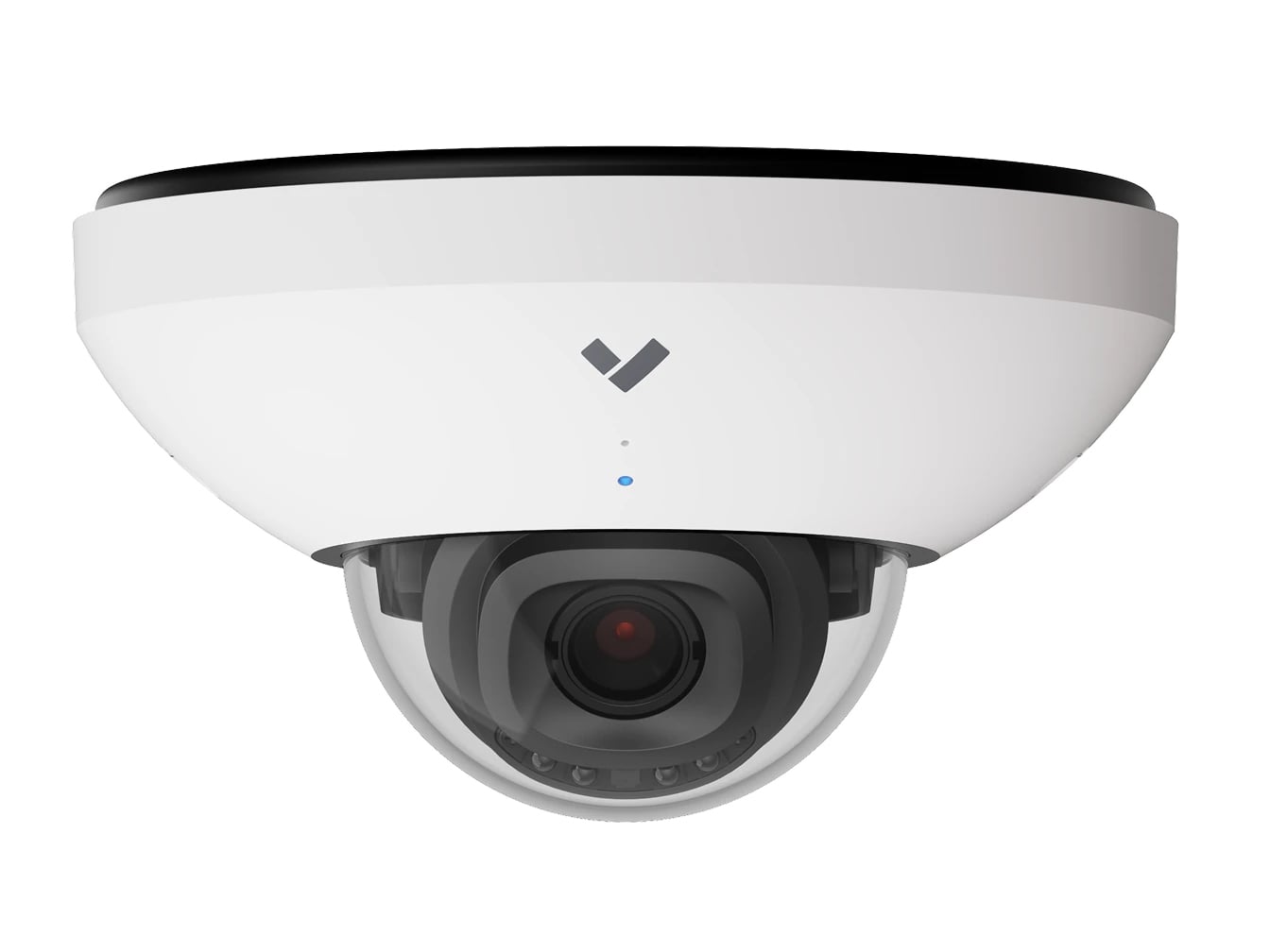

Verkada CM42-256S-HW Surveillance Camera
Full specifications (PDF)
Verkada CM42 Surveillance Camera Model Overview
The Verkada CM42 Indoor Mini Dome Camera is designed for reliable surveillance in discreet settings. With its 5MP resolution, the camera ensures clear image quality across different lighting conditions, featuring a 20 meters (66 feet) IR range for enhanced nighttime visibility. Powered by an onboard Ambarella processor, it offers advanced analytics capabilities, such as AI-powered search and occupancy trends, making it perfect for small spaces like IT closets and hallways. Its sleek design and IK08 impact rating ensure durability while maintaining aesthetics, making it a smart choice for any security setup.
Key Features:
- 5MP resolution for clear image quality
- 20 meters IR range for superior nighttime viewing
- Advanced analytics with AI-powered capabilities
- Easy installation with included mounting plate
- Sleek design suitable for aesthetic deployment
Specifications:
- Image Sensor: 1/2.8” Progressive CMOS
- Shutter Speed: 1/30 sec. to 1/10,000 sec.
- Field of View: Horizontal 95° | Vertical 69° | Diagonal 130°
- IR Range: 20m / 66ft
- Onboard Storage: 256GB to 2TB
- Power Input: IEEE 802.3af Type 1 PoE
- Weight: 290g (10.23oz)
- Dimensions: 124.5mm (4.90in) x 71.5mm (2.81in)
Frequently Asked Questions
What are the key specifications of the Verkada CM42-256S-HW surveillance camera?
The Verkada CM42-256S-HW is a 5MP indoor mini dome camera with a fixed lens, featuring a 1/2.8" progressive CMOS image sensor and 256GB of onboard storage for up to 30 days of video retention. It delivers a 95° horizontal field of view with 130° diagonal coverage, includes 20 meters (66 feet) of IR range for night vision, and operates on IEEE 802.3af Type 1 PoE power input. The compact design measures 124.5mm x 71.5mm and weighs just 290g, making it ideal for discreet monitoring in small spaces.
How long can the Verkada CM42-256S-HW store video footage?
The CM42-256S-HW with 256GB of onboard storage provides up to 30 days of video retention, depending on video quality and frame rate settings. If you need extended storage capacity, we offer alternative configurations with up to 2TB of storage available from us, which can significantly increase retention periods for your surveillance needs.
Is the Verkada CM42-256S-HW suitable for low-light environments?
Yes, the CM42-256S-HW excels in low-light conditions with its 20-meter (66-foot) infrared range, ensuring clear footage day or night. The camera's advanced 1/2.8" progressive CMOS sensor combined with IR capability makes it effective for diverse lighting conditions and 24/7 surveillance applications.
What analytics capabilities does the Verkada CM42-256S-HW provide?
The CM42-256S-HW features advanced analytics powered by an onboard CV25S Ambarella processor, providing critical insights such as occupancy trends and person-of-interest alerts. These onboard analytics enable intelligent monitoring without relying solely on cloud processing, giving you real-time security intelligence for your facility.
What are the power requirements for the Verkada CM42-256S-HW?
The CM42-256S-HW operates on IEEE 802.3af Type 1 Power over Ethernet (PoE), which simplifies installation by delivering both power and data through a single network cable. This standard PoE support makes it compatible with most modern network infrastructure and eliminates the need for separate power supplies.
What storage options are available for the Verkada CM42 series?
We offer the Verkada CM42 in multiple storage configurations ranging from 256GB to 2TB of onboard storage. The CM42-256S-HW provides 256GB with approximately 30 days of retention, while higher-capacity models like the CM42-512, CM42-768, CM42-1TB, and CM42-2TB offer extended retention periods for organizations with longer archival requirements. Contact us today to find the right storage capacity for your surveillance needs.
