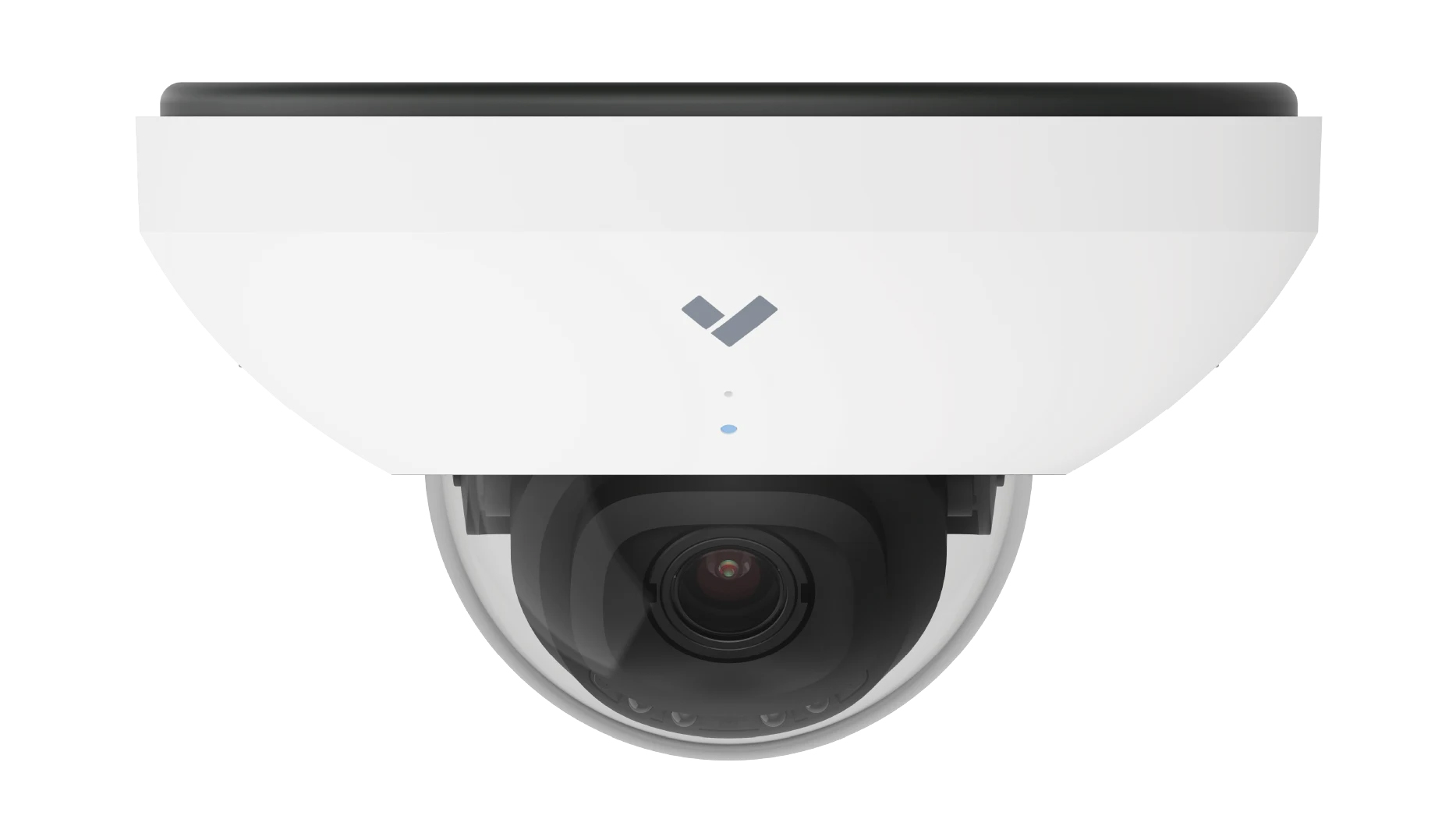

Verkada's CM22 Indoor Mini Dome Camera is the perfect solution for discreet surveillance in small spaces. With an impressive 3MP resolution and a compact design, this camera excels at monitoring confined areas like storage closets or store aisles. Equipped with a 1/2.8" progressive CMOS image sensor and 10 meters (33 feet) of IR range, the CM22 ensures clear visibility day or night. Its onboard CV25S Ambarella processor enables instant alerts for both people and vehicles, making it an ideal choice for organizations prioritizing both security and aesthetics.
Field of View: Horizontal 95° | Vertical 69° | Diagonal 130°
Weight: 290g / 10.23oz
Dimensions: 124.5mm x 71.5mm
Operating Temperature: -10°C to 50°C / 14°F to 122°F
Verkada CM22-256-HW Surveillance Camera Overview
Overview
Verkada's CM22 Indoor Mini Dome camera provides essential video security features in a compact form. It is suitable for a variety of applications, from corporate offices and retail locations to banks and schools. The CM22 is a compact and powerful camera that offers many core benefits found in our Mini series cameras. It has a 3MP image sensor with 10 meters of IR range, up to 90 days of retention, and supports motion search and trajectory analysis. It also meets EN 50155 railway compliance standards and can be installed for transportation security on trains, buses and boats. All Mini Series cameras come equipped with essential features such as data encryption, onboard storage and advanced motion-based insights. These features enable organizations to easily scale their security coverage and enhance situational awareness across multiple locations.
Key features
Coverage
Bring clarity to investigations with 3MP, high-definition sensor resolution
Effortlessly uncover in-scene details with enhanced digital zoom
Storage and processing
256GB - 768GB of onboard storage
Powered by an Ambarella chipset to support Verkada's edge-based motion alerts
Low-bandwidth impact, using only 20-50 kbps per camera at rest
What resolution and sensor does the Verkada CM22-256-HW offer?
The Verkada CM22-256-HW features a 3MP resolution (2048x1536) with a 1/2.8" progressive CMOS image sensor, delivering clear image quality suitable for monitoring confined spaces like storage closets and store aisles. This sensor size and resolution combination provides excellent detail capture for discreet indoor surveillance applications.
How much onboard storage does the CM22-256-HW provide and what are the retention options?
The CM22-256-HW model includes 256GB of onboard storage, which provides approximately 30 days of video retention. We also offer higher-capacity variants with 512GB (60 days) and 768GB (90 days) storage options, all featuring hybrid cloud architecture with cloud backup capabilities for extended retention.
What is the infrared range and field of view of the Verkada CM22?
The CM22-256-HW delivers 10 meters (33 feet) of IR range for clear nighttime visibility, with a horizontal field of view of 95°, vertical of 69°, and diagonal of 130°. This compact coverage makes it ideal for monitoring specific areas without excessive wide-angle distortion.
Does the CM22-256-HW include people and vehicle detection capabilities?
Yes, the CM22-256-HW is equipped with an onboard CV25S Ambarella processor that enables instant alerts for both people and vehicle detection. This built-in computer vision capability allows your organization to prioritize security while reducing false alerts from environmental changes.
What are the power consumption and operating temperature specifications?
The CM22-256-HW consumes 6.1W when IR is active and 3.2W without IR, making it energy-efficient for continuous surveillance operations. It operates reliably in temperatures ranging from -10°C to 50°C (14°F to 122°F), suitable for most indoor environments including climate-controlled warehouses and retail spaces.
Is the Verkada CM22-256-HW easy to install, and what mounting options are included?
Yes, the CM22-256-HW is designed for easy installation and includes a mounting plate and LED status indicator for quick setup and troubleshooting. Its compact design (124.5mm x 71.5mm) and lightweight construction (290g) make it simple to deploy in tight spaces without requiring extensive infrastructure modifications.
Full specifications (PDF)
