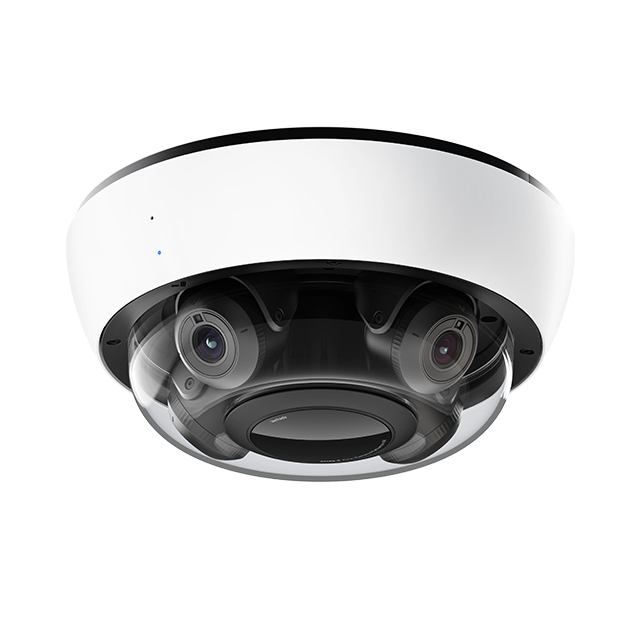

Verkada CH63-4TBE-HW Surveillance Camera
Full specifications (PDF)
Verkada CH63-E Surveillance Camera Model Overview
Key features:
- Superior Image Quality: Four 1/2.8" progressive CMOS image sensors with 4K resolution.
- Durability: IP66/IP67 weather rating and IK10 impact rating for harsh environments.
- Extensive Coverage: 360° field of view with four adjustable sensor heads.
- Advanced Analytics: AI-powered alerts and occupancy trends for operational insights.
- Streamlined Installation: Single PoE+ cable and alignment presets for easy setup.
Specifications:
- Camera Type: Four-camera multisensor
- Resolution: 4x4K (3856 x 2228)
- IR Range: 30m/98ft
- Onboard Storage: Options from 1TB to 8TB
- Power Input: IEEE 802.3bt Type 3 PoE++
- Operating Temperature: -40°C to 50°C / -40°F to 122°F
- Dimensions: 262.0mm x 117.0mm
- Weight: 3425g
- Audio: Built-in microphone with one-way audio
Frequently Asked Questions
What makes the Verkada CH63-E ideal for monitoring large open spaces?
The Verkada CH63-E features four independent 4K cameras with a 360° field of view, allowing you to capture comprehensive coverage from a single installation point. Each camera sensor operates independently with 4K resolution (3856 x 2228), making it perfect for monitoring busy areas like hallway intersections, atriums, and large open spaces without requiring multiple separate cameras.
What are the power and connectivity requirements for the Verkada CH63-E?
The Verkada CH63-E requires a single IEEE 802.3bt Type 3 PoE++ cable for both power and data connectivity, simplifying installation and reducing the need for multiple cable runs. This streamlined approach means you can deploy the camera quickly with minimal infrastructure changes, and our team can assist with integration planning.
How does the Verkada CH63-E perform in low-light and harsh weather conditions?
The camera delivers exceptional performance in challenging environments with up to 98 feet (30m) of infrared range for low-light visibility and an IP66/IP67 weather rating for dust and water resistance. Its IK10 impact rating ensures durability against physical damage, while the operating temperature range of -40°C to 50°C (-40°F to 122°F) makes it suitable for extreme climates.
What AI-powered analytics and alerts does the Verkada CH63-E offer?
The Verkada CH63-E includes advanced AI-powered analytics that enable line crossing alerts, loitering detection, and occupancy trend monitoring for actionable operational insights. These features help you identify security concerns and optimize space utilization without requiring manual review of all footage.
What storage options are available for the Verkada CH63-E?
The Verkada CH63-E is available with onboard storage options ranging from 1TB to 8TB, providing flexibility based on your retention requirements and recording needs. With the 4TB model, you can expect approximately 60 days of retention, though this varies depending on your recording settings and usage patterns.
Is the Verkada CH63-E suitable for outdoor installations?
Yes, the Verkada CH63-E is fully rated for outdoor use with its IP66/IP67 weatherproof housing and robust construction designed to withstand harsh environments. Contact us today to discuss your specific outdoor installation requirements and ensure proper mounting and configuration for your security setup.
