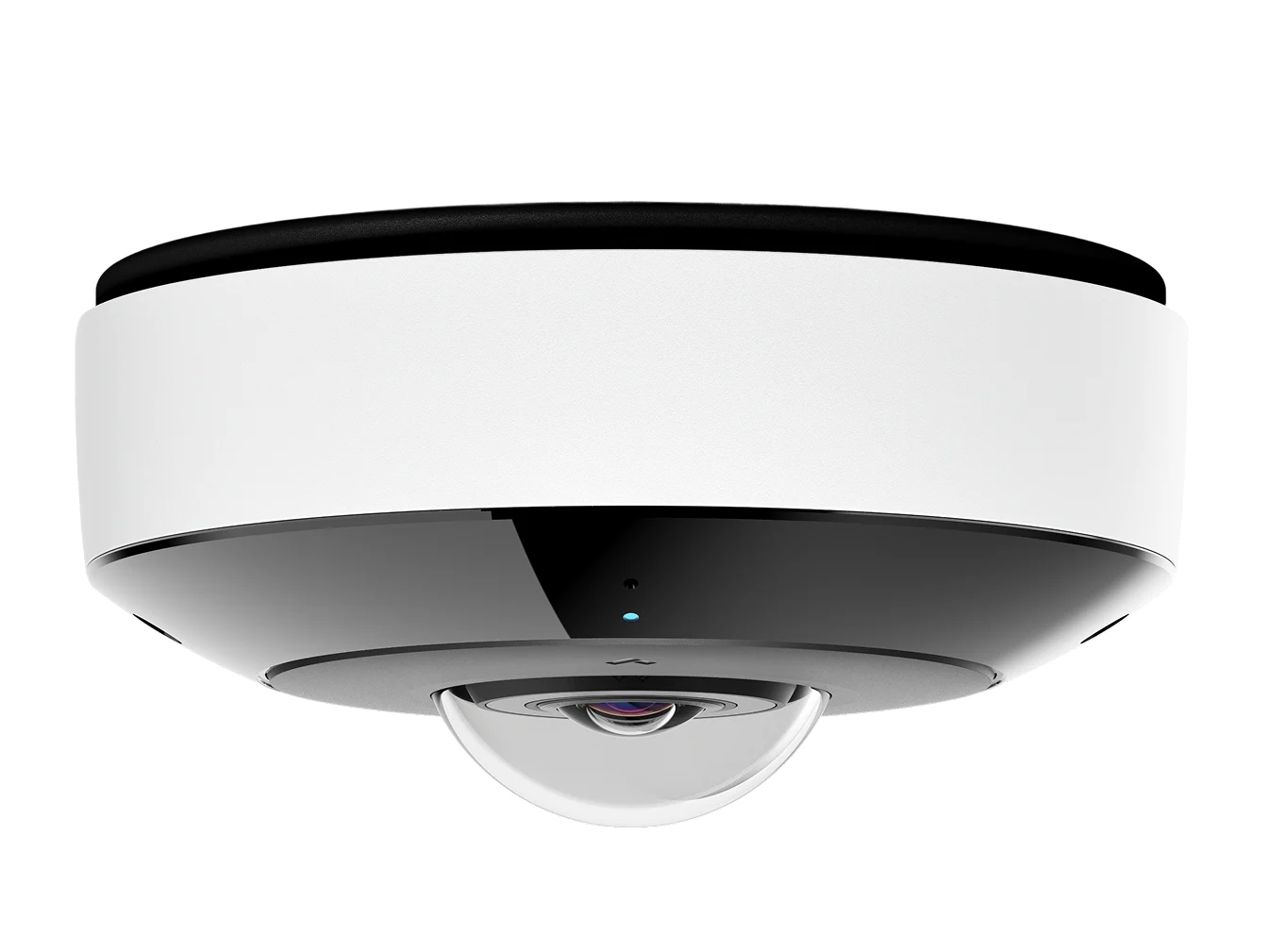

Verkada CF83-3TBE-HW-F Surveillance Camera
Verkada CF83-E Surveillance Camera Model Overview
The Verkada CF83-E Outdoor Fisheye Camera is built for wide-area video surveillance, delivering detailed 12.5MP image quality and 180-degree coverage from a single camera. With its 1/1.6" progressive CMOS image sensor, fixed 1.7mm lens, and 20m/66ft IR range, this fisheye security camera provides reliable visibility across large spaces in both daylight and low-light conditions. Powered by an onboard CV72S Ambarella processor, the CF83-E supports advanced analytics including AI-powered search, motion trajectory mapping, line crossing alerts, loitering alerts, and people and vehicle analytics. Its rugged IP66/67 weather rating, IK10 impact resistance, and hybrid cloud architecture make it a strong choice for outdoor surveillance, campuses, warehouses, retail locations, transportation hubs, parking areas, and commercial facilities.
Key Features
- 180-degree fisheye coverage: Captures expansive areas from one camera location to help reduce blind spots
- 12.5MP video resolution: Delivers detailed image quality with a large 1/1.6" progressive CMOS sensor
- 20m/66ft IR night vision: Supports clear visibility in dark or low-light environments
- AI-powered analytics: Includes AI search, line crossing, and people and vehicle analytics
- Outdoor-ready durability: IP66/67 weather protection and IK10 impact resistance for demanding environments
- Scalable hybrid cloud design: Onboard processing and storage help reduce bandwidth usage while supporting cloud-based management
Specifications
- Model: CF83-E
- Camera Type: Outdoor Fisheye Surveillance Camera
- Image Sensor: 1/1.6" Progressive CMOS
- Resolution: 12.5MP
- Lens Type: Fixed
- Focal Length: 1.7mm
- Field of View: 180° horizontal, 180° vertical, 180° diagonal
- IR Range: 20m / 66ft
- Processor: CV72S Ambarella processor
- Storage Capacity: 512GB to 3TB onboard storage
- Retention: 30 to 120 days, depending on storage capacity
- Video Compression: H.265, H.264
- Power Input: Power over Ethernet
- Weather Rating: IP66/67
- Impact Rating: IK10
- Operating Temperature: -40°C to 50°C / -40°F to 122°F
Frequently Asked Questions
What is the field of view coverage of the Verkada CF83-E fisheye camera?
The Verkada CF83-E delivers 180-degree coverage in all directions—180° horizontal, vertical, and diagonal—from a single camera location. This expansive fisheye coverage helps reduce blind spots and captures wide-area surveillance across large spaces like warehouses, campuses, and parking areas. We offer the CF83-E as a cost-effective solution for facilities that need comprehensive wide-angle monitoring without deploying multiple standard cameras.
How does the Verkada CF83-E perform in low-light and nighttime conditions?
The CF83-E features a 20-meter (66-foot) infrared range with onboard IR LEDs, enabling clear visibility in dark or low-light environments. Combined with its large 1/1.6" progressive CMOS sensor and 12.5MP resolution, the camera delivers reliable nighttime surveillance for outdoor facilities operating around the clock. Contact us today to discuss how this camera fits your facility's 24/7 monitoring needs.
What AI-powered analytics and alerts does the Verkada CF83-E support?
The CF83-E is powered by an onboard CV72S Ambarella processor and supports advanced AI analytics including AI-powered search, motion trajectory mapping, line crossing alerts, loitering alerts, and people and vehicle analytics. These intelligent features enable proactive threat detection and automated incident response without relying solely on manual monitoring. Visit barcodesinc.com to learn how these analytics capabilities enhance security operations at your facility.
Is the Verkada CF83-E suitable for harsh outdoor environments?
Yes, the CF83-E is built for demanding outdoor conditions with an IP66/67 weather rating for protection against dust and water ingress, plus an IK10 impact resistance rating. It operates reliably across a wide temperature range of -40°C to 50°C (-40°F to 122°F), making it ideal for warehouses, transportation hubs, retail locations, and other commercial facilities exposed to the elements. We offer the CF83-E as a rugged, long-term outdoor surveillance solution.
How much onboard storage and video retention does the CF83-E provide?
The Verkada CF83-E is available with onboard storage options ranging from 512GB to 3TB, supporting video retention periods of 30 to 120 days depending on the storage capacity selected. The hybrid cloud architecture allows onboard processing and storage to reduce bandwidth usage while enabling cloud-based management and access. Contact us today to determine the right storage configuration for your retention and bandwidth requirements.
What power and connectivity requirements does the Verkada CF83-E have?
The CF83-E is powered entirely by Power over Ethernet (PoE), eliminating the need for separate power runs and simplifying installation in outdoor locations. The camera supports H.265 and H.264 video compression standards for efficient bandwidth management while maintaining image quality. Visit barcodesinc.com to discuss PoE infrastructure requirements and integration with your existing network.
