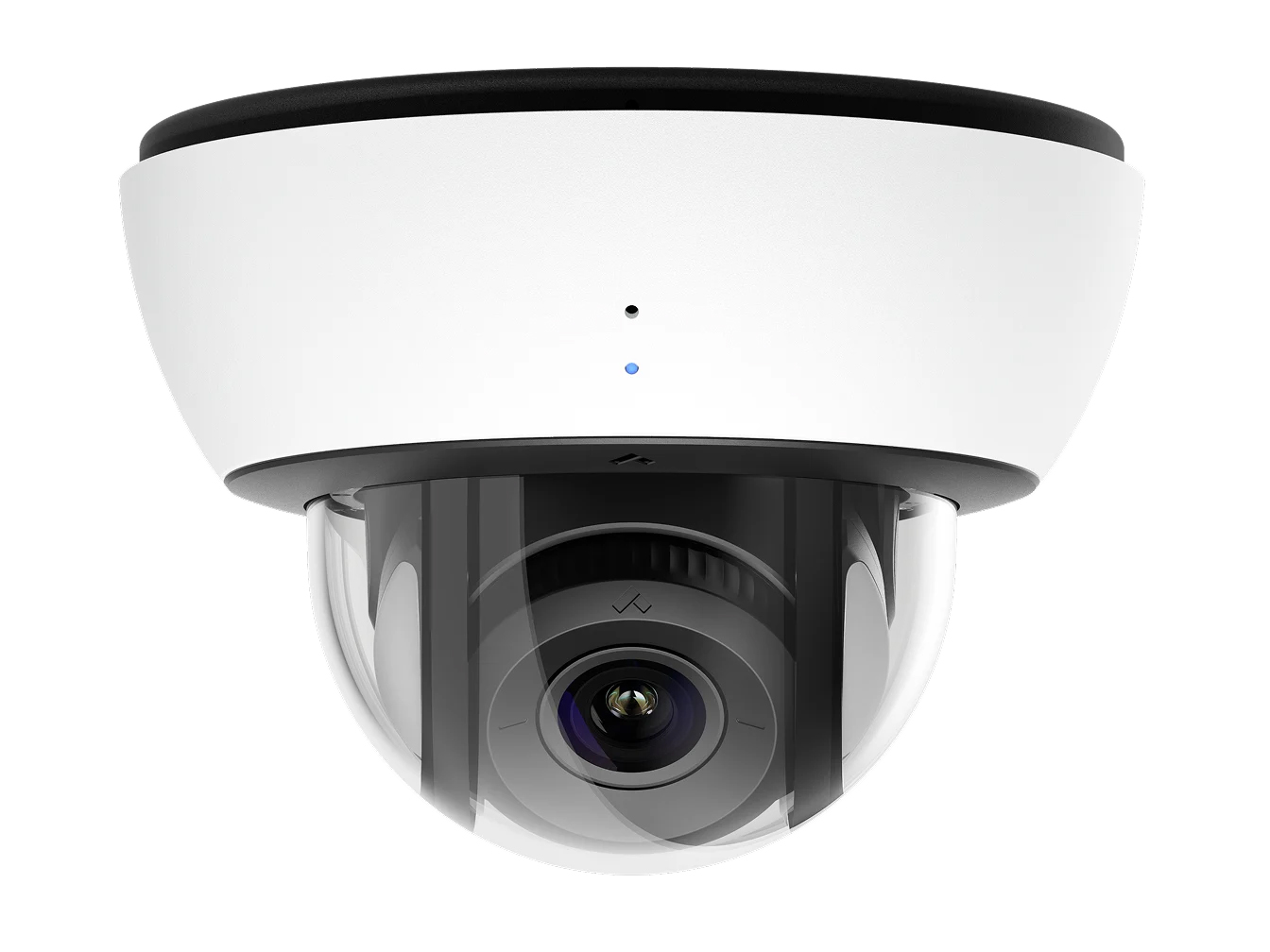

Verkada CD63-2TB-HW Surveillance Camera
Full specifications (PDF)
Verkada CD63 Surveillance Camera Model Overview
Key features
- Superior image quality: Large 1/1.2" progressive CMOS image sensor
- 4K Resolution
- Varifocal lens: 2.25x optical zoom
- Night vision: 40m / 130ft IR range
- Advanced analytics: Al-powered search and alerts
- Hybrid cloud architecture: Onboard storage and processing
- Streamlined installation: Built-in bubble level and captive screws
Specifications
- Camera features:
- Image Sensor: 1/1.2" Progressive CMOS
- Sensor Resolution: 4K (3840 x 2160)
- Lens Type: Varifocal; motorized zoom
- Focal Length: 5.9-13.3mm
- Aperture: F1.5-F2.9
- Field of View (Horizontal): 109° 49° (102°-47°)
- IR Range: 40m / 130ft
- Audio: One-way audio
- Power Input: IEEE 802.3at Type 2 PoE+
- Weight: 1324g / 46.70oz
- Dimensions: 155.0mm / 6.10in (Diameter), 111.4mm / 4.39in (Height)
- Operational Temperature: -10°C to 50°C/14°F to 122°F
- Warranty: 10 Years
Frequently Asked Questions
What is the image resolution and sensor size of the Verkada CD63?
The Verkada CD63 features 4K resolution (3840 x 2160) with a large 1/1.2" progressive CMOS image sensor, delivering stunning clarity in various indoor settings. This large sensor size combined with 4K resolution ensures superior image quality in both bright and low-light conditions, making it ideal for high-traffic monitoring locations.
Does the Verkada CD63 have night vision capabilities?
Yes, the CD63 includes infrared night vision with a 40-meter (130-foot) IR range, ensuring effective surveillance in low-light and nighttime conditions. The advanced onboard CV72S Ambarella processor enhances image processing to maintain clarity regardless of lighting conditions.
What are the zoom capabilities of the Verkada CD63?
The Verkada CD63 features a varifocal motorized zoom lens with 2.25x optical zoom and a focal length range of 5.9-13.3mm. This allows flexible framing of surveillance areas with a horizontal field of view ranging from 109° at wide angle to 49° at full zoom.
What power requirements does the Verkada CD63 need?
The Verkada CD63 operates on IEEE 802.3at Type 2 PoE+ (Power over Ethernet Plus), allowing you to power and connect the camera through a single network cable. This simplifies installation and reduces the need for additional power infrastructure in your surveillance setup.
What analytics and AI features does the Verkada CD63 provide?
The CD63 includes advanced AI-powered analytics such as intelligent search, real-time alerts, and occupancy trend monitoring, all processed by the onboard CV72S Ambarella processor. Its hybrid cloud architecture combines onboard storage and processing with cloud backup, enabling sophisticated security operations without relying solely on external servers.
Is the Verkada CD63 suitable for high-traffic indoor environments?
Yes, the CD63 is specifically designed for monitoring high-traffic indoor locations with its robust metal housing that protects against vandalism and tampering. Its combination of 4K resolution, advanced analytics, and AI-driven occupancy trends makes it perfect for warehouses, distribution centers, and other busy indoor spaces. Contact us today at barcodesinc.com to discuss your surveillance requirements and find the right configuration for your facility.
