Verkada CD43-2TBE-HW Surveillance Camera
Full specifications (PDF)

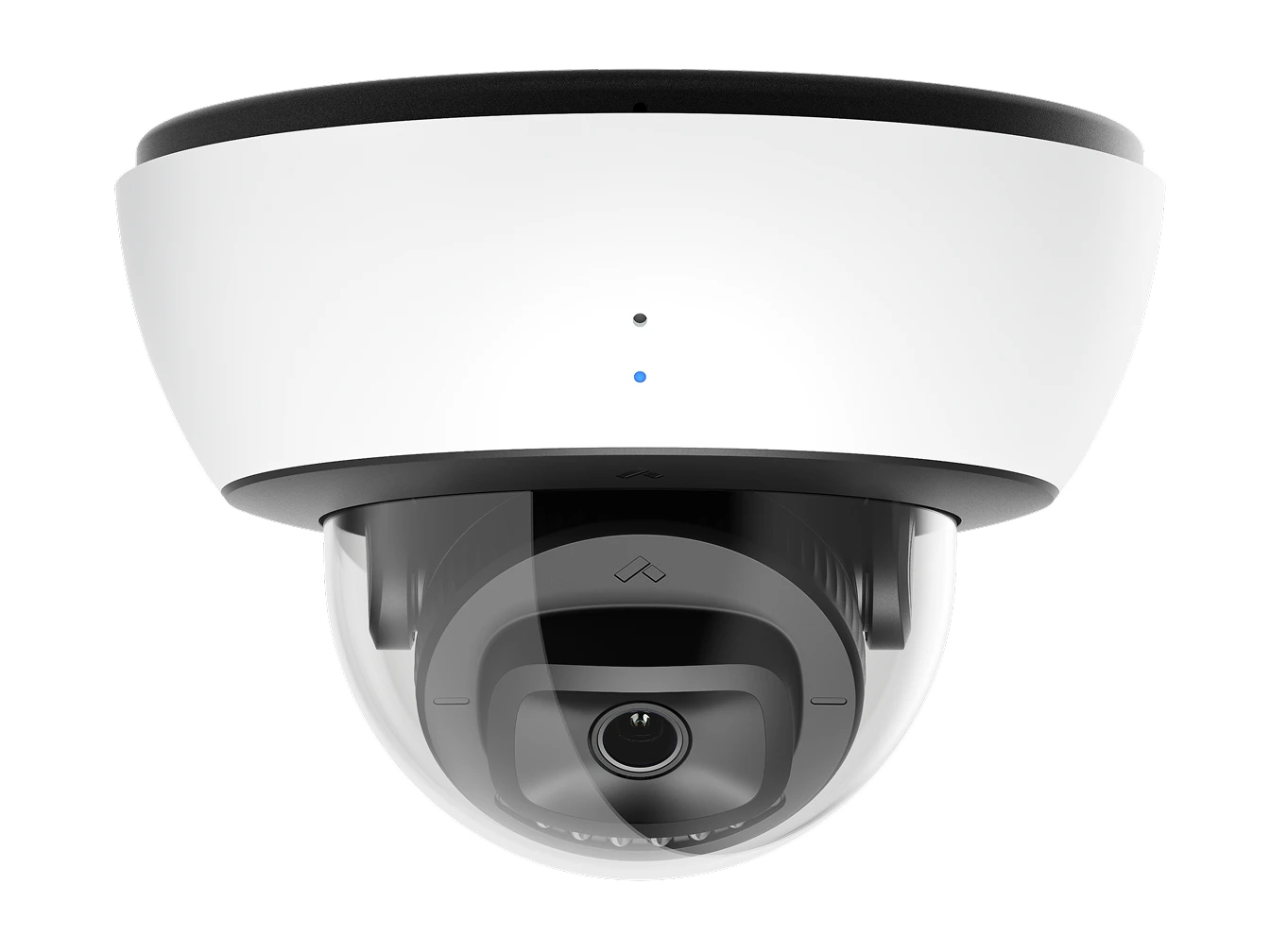

Verkada CD43-E Surveillance Camera Model Overview
The Verkada CD43-E Surveillance Camera delivers exceptional 5MP coverage, ensuring clear visibility even in challenging outdoor environments. Equipped with a robust 1/2.8" progressive CMOS sensor and a powerful IR range of 20 meters (66 feet), this dome camera excels in low-light and harsh weather conditions. The onboard Ambarella processor enhances advanced analytics, enabling features such as AI-powered alerts and behavior detection, making it ideal for monitoring high-traffic areas like parking lots and building exteriors. With its durable IP66/67 weather rating and IK10 impact protection, the CD43-E ensures reliable performance, while streamlined installation features simplify setup.
Key features:
- 5MP resolution for excellent image quality
- 20m/66ft IR range for nighttime visibility
- Advanced analytics including AI-powered search and alerts
- IP66/67 weather rating for outdoor durability
- Easy installation with captive screws and built-in bubble level
- Operability at extreme temperatures (-40°C to 50°C)
Specifications:
- Image Sensor: 1/2.8" Progressive CMOS
- Shutter Speed: 1/30 sec. to 1/10,000 sec.
- Storage Capacity: 256GB to 2TB onboard storage
- Audio: One-way audio with built-in microphone
- Power Input: Power over Ethernet (PoE)
- Weight: 1100g (38.80oz)
- Dimensions: 155.0mm x 111.4mm
- Operating Temperature: -40°C to 50°C (-40°F to 122°F)
- Impact Rating: IK10
Frequently Asked Questions
What is the IR range on the Verkada CD43-E surveillance camera?
The Verkada CD43-E features a 20-meter (66-foot) infrared range, delivering clear visibility in low-light and nighttime conditions. This extended IR capability makes it ideal for monitoring outdoor areas like parking lots and building exteriors where ambient light may be limited.
Is the Verkada CD43-E suitable for outdoor installation?
Yes, the CD43-E is designed for outdoor use with an IP66/67 weather rating and IK10 impact protection, ensuring reliable performance in harsh environmental conditions. It operates across extreme temperatures ranging from -40°C to 50°C (-40°F to 122°F), making it dependable year-round.
What analytics capabilities does the Verkada CD43-E offer?
The CD43-E is equipped with an onboard Ambarella processor that enables advanced analytics including AI-powered alerts, behavior detection, occupancy tracking, and person-of-interest identification. These features make it particularly effective for monitoring high-traffic areas and generating actionable security insights.
How much onboard storage does the CD43-E provide?
The Verkada CD43-E comes with 2TB of onboard storage in this model (the CD43-2TBE-HW), supporting up to 365 days of video retention depending on resolution and frame rate settings. This hybrid cloud architecture ensures your footage is securely stored locally while remaining accessible through Verkada's platform.
What power requirements does the Verkada CD43-E have?
The CD43-E operates via Power over Ethernet (PoE), simplifying installation by eliminating the need for separate power cabling. This standard connectivity makes it easy to integrate into existing network infrastructure available from us at Barcodes Inc.
How does installation work on the Verkada CD43-E?
The CD43-E features streamlined installation with captive screws and a built-in bubble level, reducing setup time and complexity. These user-friendly design elements make it accessible for IT teams and installers to deploy quickly without specialized tools or expertise. Contact us today at barcodesinc.com for assistance with your surveillance camera deployment.
