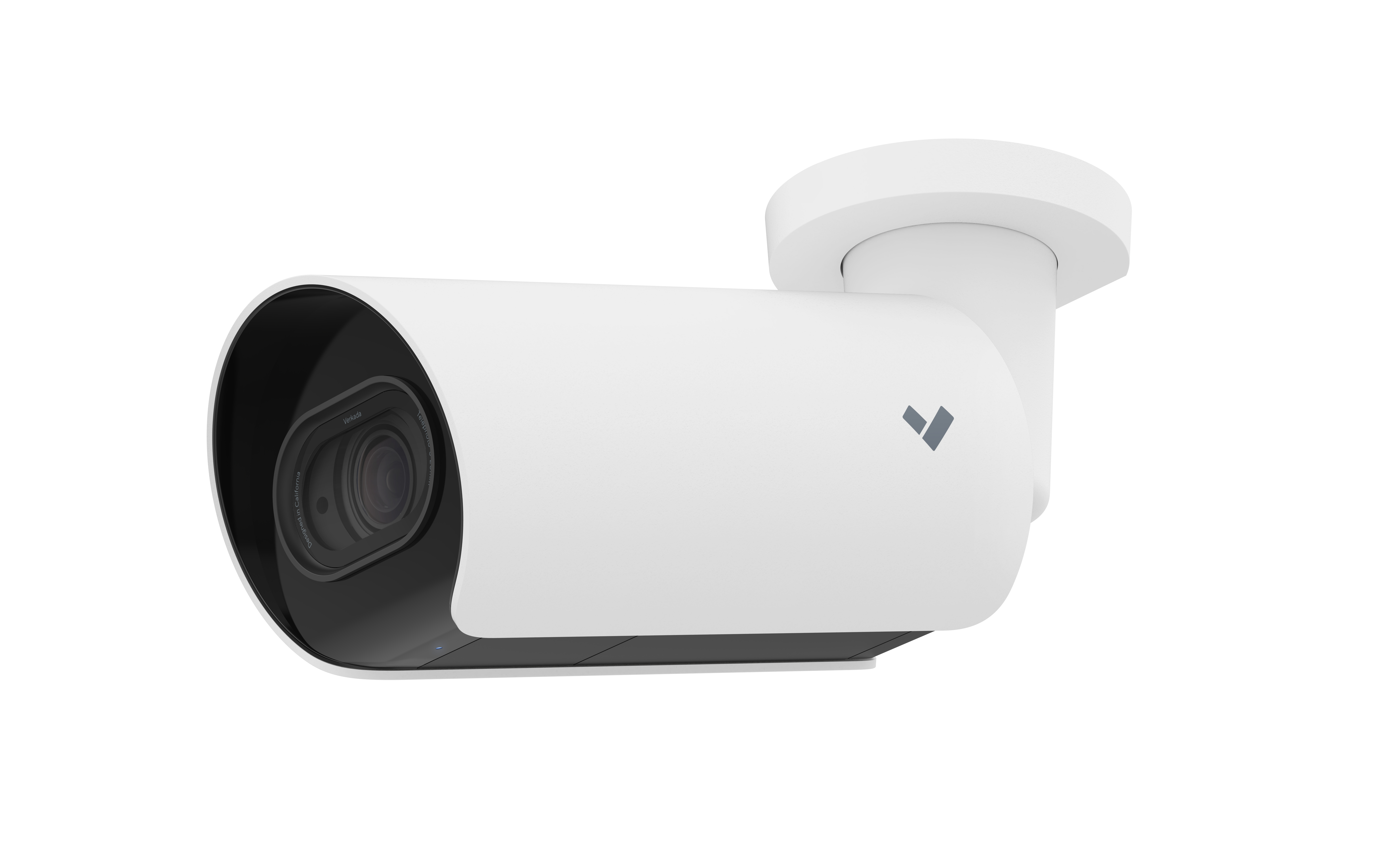

Verkada CB52-512E-HW-F Surveillance Camera
Full specifications (PDF)
Verkada CB52-E Surveillance Camera Model Overview
The Verkada CB52-E Surveillance Camera delivers top-notch 5MP resolution to ensure crystal-clear imaging in outdoor environments. Equipped with a robust 1/2.8" progressive CMOS sensor and a varifocal lens with 2.86x optical zoom, this bullet camera captures detailed footage even in low-light conditions, boasting an impressive IR range of up to 30 meters. Enhanced with advanced analytics via the onboard CV25S processor, the CB52-E effectively recognizes license plates at speeds of up to 80 mph, making it an invaluable asset for security management. Its durable construction and weatherproof rating ensure reliable performance in various conditions, providing peace of mind around the clock.
Key Features
- 5MP resolution for excellent image clarity
- Varifocal lens with 2.86x optical zoom
- 30 meters / 98 feet IR range for nighttime visibility
- License plate recognition for swift security checks
- IP67 weather rating and IK10 impact rating for durability
- Easy installation with built-in pigtail connector
Specifications
- Camera Features:
- Image Sensor: 1/2.8" Progressive CMOS
- Lens: Varifocal, 2.8mm-8mm
- IR Range: 30m / 98ft
- Storage:
- Onboard Storage: 256GB - 2TB
- Retention: 30-365 Days
- Durability:
- Operating Temperature: -40°C to 50°C
- Weather Resistance: IP67
- Impact Resistance: IK10
- Power and Connectivity:
- Power Input: IEEE 802.3at Type 2 PoE+
- Network: RJ-45 connector, 10/100 Mbps
Frequently Asked Questions
What is the IR range and low-light performance of the Verkada CB52-512E-HW-F?
The Verkada CB52-512E-HW-F features an impressive IR range of up to 30 meters (98 feet), enabling reliable nighttime visibility and 24/7 monitoring in low-light conditions. Combined with its 1/2.8" progressive CMOS sensor and varifocal lens, this camera captures detailed footage even when ambient light is minimal, making it ideal for perimeter security and outdoor surveillance applications.
Can this Verkada camera recognize license plates, and at what speeds?
Yes, the Verkada CB52-512E-HW-F is equipped with an onboard CV25S processor that delivers advanced analytics for license plate recognition at speeds of up to 80 mph. This makes it an invaluable asset for vehicle gates, parking lots, and perimeter monitoring where rapid vehicle identification is critical for security management.
What are the weather and impact resistance ratings for the CB52-512E-HW-F?
The Verkada CB52-512E-HW-F is built for durability with an IP67 weather resistance rating and IK10 impact resistance rating, ensuring reliable performance in harsh outdoor environments. Its robust construction allows operation across a wide temperature range of -40°C to 50°C, providing peace of mind in various climatic conditions.
What storage options and retention periods are available for this camera?
The Verkada CB52-512E-HW-F offers onboard storage ranging from 256GB to 2TB, with retention capabilities of 30 to 365 days depending on your configuration and video compression settings. This onboard storage provides flexibility for enterprises requiring extended footage retention without relying solely on cloud infrastructure.
How is the Verkada CB52-512E-HW-F powered and connected to the network?
The camera is powered via IEEE 802.3at Type 2 PoE+ (Power over Ethernet Plus), simplifying installation by eliminating the need for separate power cables. It connects to your network using an RJ-45 connector with 10/100 Mbps connectivity, and features a built-in pigtail connector for easy field installation.
What makes the varifocal lens with 2.86x optical zoom beneficial for surveillance?
The varifocal lens with 2.86x optical zoom and 2.8mm-8mm focal length allows operators to adjust the field of view from wide-angle to telephoto without changing the camera, providing flexibility for monitoring different areas and capturing fine details like license plates and facial features. This adaptability makes it suitable for diverse deployment scenarios from building exteriors to parking lots and perimeter areas. Contact us today to find the right configuration for your security needs.
