Protection Type:
Overload Protection
Veracity VOR-OS-90-US Security Camera
Part Number:
VOR-OS-90-US
Model:
Parts
Veracity Parts Accessory Model Overview
Products and parts from Veracity.

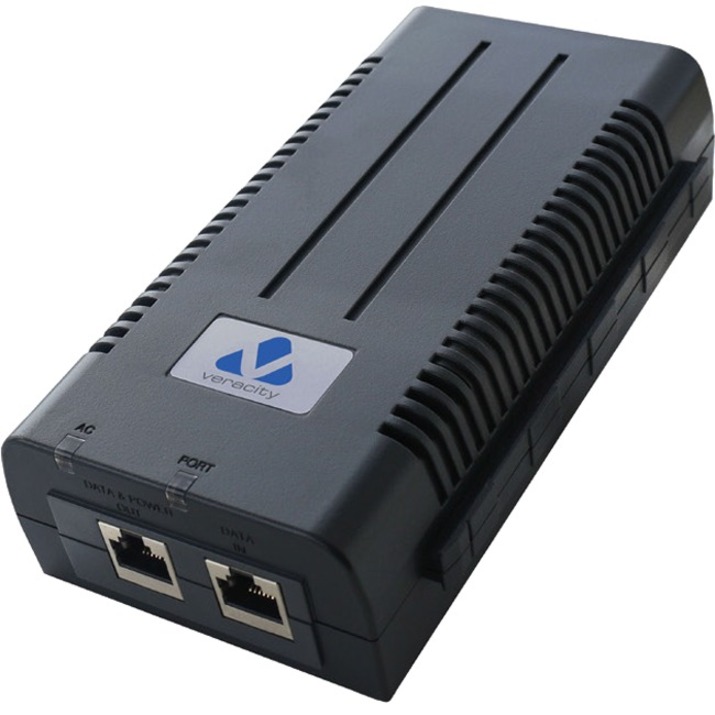

Veracity VOR-OS-90-US Security Camera Overview
OUTSOURCE 90 delivers the highest power allowed by the POE standard (802.3bt), used for external PTZ IP cameras and other very high-power applications.
- Delivers maximum remote power to IP cameras & POE devices
- 802.3bt compliant and GigE compatible
- 90W Power output
- Safety assured as POE is only enabled to compliant devices
- Integrated overload protection
- Compact, wall-mountable unit
- Sealed, fanless design for reliability
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Maximum Output Voltage:
54 V DC
Maximum Output Power:
90 W
Interfaces/Ports
Input Ports:
- 10/100/1000Base-T
- IEC 60320 C14
Output Ports:
10/100/1000Base-T
Physical Characteristics
Form Factor:
Wall Mountable
Height:
1.7"
Width:
3.5"
Length:
6.6"
Weight (Approximate):
1.05 lb
Miscellaneous
Certifications & Standards:
- CE
- FCC
- EN 55032 Class B
- EN55024
- VCCI
- UL/EN/IEC 60950-1 (Ed2)
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
NDAA Compliant:
Yes
Item Numbers
GTIN:
0853940007147
UPC:
853940007147
EAN:
0853940007147
UNSPSC:
39121004
The Veracity VOR-OS-90-US Security Camera is also known as
VCI-VOROS90US
