Veracity VCS-4P1 Accessory

Veracity - Veracity CAMSWITCH Plus VCS-4P1 Ethernet Switch - 5 Ports - 2 Layer Supported - Twisted Pair
  • Effectively increases available bandwidth on your network
  • Quickly and easily set up a wired network with 5 networking ports
  • PoE power source for required power supply to ensure maximum efficiency
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Read More

Need a different version? See all Veracity Parts Accessories

$270.92
In Stock
Add to Quote
Add to My Shopping List Add to Compare
Veracity VCS-4P1 Accessory
Veracity VCS-4P1 Accessory
Veracity VCS-4P1 Accessory
Veracity Parts Accessory Model Overview
Products and parts from Veracity.

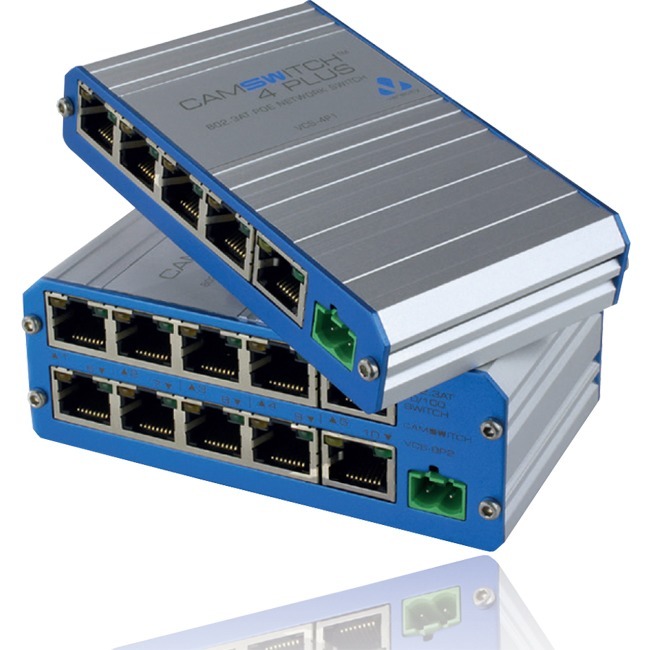

Veracity VCS-4P1 Accessory Overview
Compact and versatile 802.3at POE switches

CAMSWITCH 4 PLUS REPLACES CAMSWITCH QUAD.

CAMSWITCH Plus network switches are 803.af/at Power over Ethernet (POE) 10/100 switches designed especially to meet the challenges of IP video installation. An optional POE input enables remote positioning and range extension, or a local power supply can be specified for maximum power budget.

CAMSWITCH 4 Plus features 4 802.3at POE ports, and a 5th port for downlink.

CAMSWITCH 8 Plus features 8 802.3at POE ports, as well as 2 further network ports, and is compatible with Veracity's rack-mounting system.

802.3at POE Power

CAMSWITCH Plus can deliver up to the full 25.5 watts required by IEEE 802.3at POE Plus devices such as outdoor or PTZ cameras. A selection of power supply options are available to suit the total power requirements and placement considerations of the installation.

40 watt and 78 watt camera/device power budgets are available from standard power supplies, or the full 200 watts for 8 POE Plus ports can be delivered using Veracity's forthcoming rackmount power solutions.

CAMSWITCH Plus can be powered by POE, doubling the distance to connected devices or enabling network connections to be easily added to existing installations. Up to 25 watts budget at 200 metres is available using Veracity's OUTSOURCE Plus injector.

When a 57V power supply is used, CAMSWITCH Plus can deliver enhanced POE to Veracity OUTREACH Max, HIGHWIRE PowerStar and LONGSPAN products for maximum range.

Designed for installers

Camswitch Plus's network ports configure automatically for speed, duplex and crossover, and deliver 802.3af/at POE to compliant devices with no user setup required.

Snap-on clips are provided for secure wall mounting, and up to 4 units can be mounted in an optional 1U rack bracket.

Interfaces/Ports
Total Number of Network Ports:
5
Uplink Port:
No
Modular:
No
Stack Port:
No
Port/Expansion Slot Details:
5 x Fast Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-T
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Power Description
Power Source:
  • PoE
  • Power Supply
Redundant Power Supply Supported:
No
Physical Characteristics
Height:
0.9"
Width:
4.3"
Depth:
2.5"
Weight (Approximate):
4.76 oz
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
TAA Compliant:
Yes
NDAA Compliant:
Yes
Item Numbers
GTIN: 0017519207134, 0818275734199, 0892314002173, 5711045705281
UPC: 017519207134, 818275734199, 892314002173
EAN: 0017519207134, 0818275734199, 0892314002173, 5711045705281
UNSPSC: 43222612
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Veracity VCS-4P1 Accessory is also known as VCI-VCS4P1
