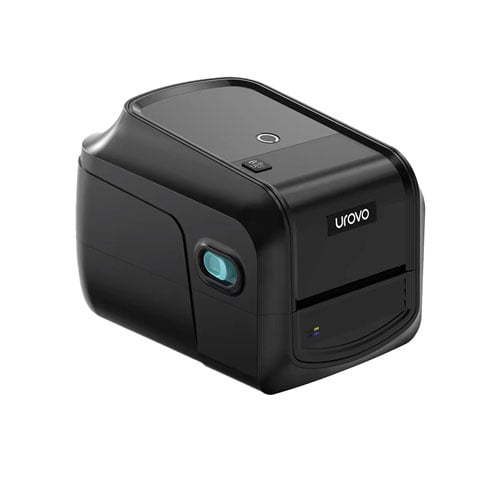

Urovo RFID-D81R-1 RFID Printer

The Urovo D812R RFID Printer is a desktop label printing solution built for high-volume operations that need RFID-capable labeling alongside standard text, barcode, and graphic printing. Designed for use in retail, medical, inventory management, and asset management environments, it supports both thermal transfer and direct thermal printing for flexible label production. A shell-type flip-top cover simplifies label loading, and broad command language emulation helps streamline integration into existing printer fleets.

Key features:

• RFID-capable labeling workflow support: Designed for environments that require RFID-enabled label printing in addition to standard barcode and text labels.
• Thermal transfer & direct thermal printing: Supports both print methods for flexible media and durability needs.
• High-speed printing: Print speeds up to 203 mm (8 inches) per second to support efficient, high-throughput operations.
• Multi-command compatibility: Emulates TSPL, EPL, ZPL, ZPL II, and DPL for easier system integration.
• Flexible connectivity: Includes USB 2.0 High Speed, USB Host 2.0, Ethernet (10/100 Mbps), and RS-232.
• USB Host support: USB Host 2.0 allows connection of devices such as barcode scanners or PC keyboards for data input and on-demand printing.
• Wide media compatibility: Supports continuous, die-cut, black mark, fan-fold (outside wound), and linerless labels.
• Optional finishing: Optional guillotine cutter and peeler support workflow automation.

Specifications:

• Print Methods: Direct Thermal / Thermal Transfer
• Resolution: 203 DPI
• Maximum Print Speed: Up to 203 mm/s
• Maximum Print Width: 104 mm
• Maximum Print Length: 25,400 mm
• Label Paper Length: 5–25,400 mm
• Processor: 400 MHz, 32-bit ARM9
• Memory: 128MB SDRAM / 128MB Flash
• Media Types: Continuous, linerless label
• Media Width: 20–118 mm
• Media Thickness: 0.06–0.254 mm
• Max Media Roll Diameter: 127 mm
• Ribbon Length: 300 m
• Ribbon Width: 30–110 mm
• Max Ribbon Outer Diameter: 67 mm
• Interfaces: USB 2.0, Ethernet 10/100, RS-232
• Factory Options: Internal Bluetooth 4.0 (option), Internal Wi-Fi (option)
• Sensors: Head open, ribbon out, reflective (moveable), transmissive (moveable)
• User Controls: Power switch, Feed button, LED indicators
• Operating Environment: 5–40°C, 20–90% (non-condensing)
• Storage Environment: -25–55°C, 20–93% (non-condensing)
• Dimensions: 280 × 190 × 198.3 mm
• Weight: 2.7 kg
