Unitech TS100 – Barcode Scanner – Corded – 2D – Cable Only

Part Number: TS100-SUCB00-SG

Model: TS100

3-year Premium Plus ($54.70)

No, stay at premium support package

$126.75

In Stock

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

Connectivity

Corded

Form Factor

Presentation

Scanner Capability

Scanner Type

Imager

Product Description:

Corded Barcode Scanner, Unitech TS100, 2D Area Imager, General Purpose, USB, Presentation, Tethered, Black

Explore all Unitech TS100 Barcode Scanners

Add to Quote

Overview

Full specifications (PDF)

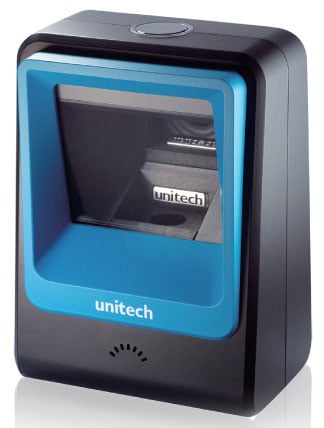

Unitech TS100 Barcode Scanner Model Overview

Break free from the bulky scanners of the past and step into the future of barcode reading with the TS100. This tiny device is a space saver and fits in small spaces for a number of set-up configurations. Capable of reading 1D and 2D printed or digital barcodes, the TS100 offers supports hands-free scanning for less strain on hands and reduced wear and tear to the device.

Unitech TS100-SUCB00-SG Barcode Scanner Overview

The TS100 is a lightweight, space saver perfect for small corners and counters. Ideal for retail, event ticketing, and food service applications.

Large scanning window means a wider read range and more scan accuracy

Scans all common 1D and 2D barcodes

Converts to RS232 or USB connection for flexible power options

It is especially reader-friendly on smartphone & tablet displays and is incredibly effective for retailers running promotions with barcodes on social media platforms. The Unitech TS100 is the perfect choice for retail, medical, and manufacturing industries with its rapid scanning speed and easily switchable scanning modes.

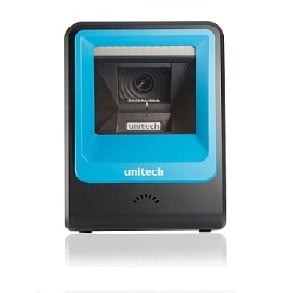

Accurate Scanning with a Large Window

TS100 features a large rectangle scan window design to ensure the
widest possible scanning area for easy reading. Being the most
cost-efficient desktop 2D scanner on the market, it can scan and
decode 1D & 2D barcodes rapidly; significantly saving time and cost
in the process. The auto-sensing of 60 fps mode allows staff to fast
and accurately capture data with both hands-free.

Effortless and Intuitive Retail Operation

The TS100 reads printed and digital barcodes efficiently, including codes on smartphone or tablet screens. Retail cashiers scan printed barcodes on items and membership cards, and claim the payment with the digital barcode to satisfy customers' shopping experience.Simply switching between the tigger and presentation modes, your workers can scan virtually any bar code in various situations, making TS100 an intuitive tool to speed up the checkout.

Small, Adjustable Footprint

The TS100 is small enough for countertops with limited space. The in-store staff enjoys the privilege to instantly scan the item with a fast USB plug and play, and self-induction function creates a seamless scanning experience to boost productivity. TS100 takes scanning performance and simplicity to the next level.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

1D:

UPC-A/E
EAN-8/13
UPC/EAN Supplementals
EAN-8 Extend
Code 128
Code 39
Code 93
Code 11
Interleaved 2 of 5
Matrix 2 of 5
Codabar
MSI Plessey
GS1 DataBar
China Postal
Korean Postal

2D:

PDF417
MicroPDF417
DataMatrix
DataMatrix-Inverse
Maxicode
QRcode
MicroQR
Aztec
Aztec Inverse
Han Xin
Han Xin Inverse

Image Sensor Type:

Imager

Scanner Range:

Standard Range

Cable Type Included:

USB

Field of View (Horizontal):

50°

Field of View (Vertical):

35°

Reading Angle (Pitch):

65°

Reading Angle (Roll):

360°

Drop Specification:

1M drop

Minimum Print Contrast:

25%

Interfaces/Ports

Host Interface:

USB
Serial

Physical Characteristics

Form Factor:

Desktop

Weight (Approximate):

12.10 oz

Miscellaneous

Application/Usage:

Retail
Ticketing
Food & Beverage
Manufacturing

Item Numbers

GTIN: 0850024097544

UPC: 850024097544

EAN: 0850024097544

UNSPSC: 43211701

Q&A

Reviews

Accessories

Recommended Accessories

Recommended Accessories for Model: Unitech TS100-SUCB00-SG Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Unitech TS100-SUCB00-SG

Unitech 1550-905923G Cables, Connectors, and Adapters
Cables, Connectors, and Adapters, Unitech, TS100 USB Cable (200 cm, RJ45 to USB)

$18.56

Add to Quote

See All Accessories for Unitech TS100-SUCB00-SG Barcode Scanner >

Service Contracts

Get help from a Barcoding Expert!

The Unitech TS100-SUCB00-SG Barcode Scanner is also known as UNI-TS100SUCB00SG or TS100SUCB00SG.
