Unitech RH767-9R56P7AADG RFID Reader

The Unitech RH767-9R56P7AADG RFID Reader has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Unitech RH767 II - Unitech RH767 II Handheld Terminal - Intel 520 MHz - 128 MB RAM - 128 MB Flash - LCD - 36 Keys - Alphanumeric Keyboard - Wireless LAN - Bluetooth
  • Wireless connectivity provides computing versatility throughout the workplace
  • Improve work efficiency with laser scanning engine
  • Touch panel gives your workforce ease, along with familiar and flexible operation, thus improving overall efficiency on a daily basis
  • The secure wireless connectivity allows your employees to stay productive while away from their desks
  • Windows CE 5.0 OS offers reliable and real-time capabilities
Read More
Discontinued Need Assistance?
Add to Quote

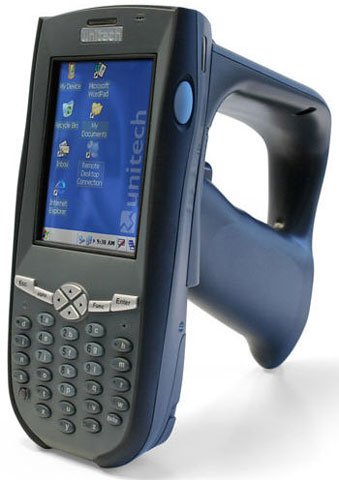

Unitech RH767 II RFID Reader Model Overview
The Unitech RH767 II rugged handheld dual RFID and barcode reader features the very latest technology to optimise data collection capabilities now and in the future. Its compact, lightweight design will keep a workforce mobile and agile in parallel with the changing technology demands of customers and suppliers. With an integrated barcode scanner and UHF RFID scanner, deploying the RH767 II means that your will have the technology today that will power your business for years to come.
Unitech RH767-9R56P7AADG RFID Reader Overview

With an integrated bar code scanner and UHF RFID scanner, deploying the RH767 II means that your will have the technology today that will power your business for years to come. The RH767 II utilizes a Windows CE 5.0 operating system, minimizing downtime due to training and developing applications. The PDA form factor and gun grip handle are designed to keep workers comfortable after long hours. It has a dual-position trigger for barcode scanning and the RFID antenna is cleverly integrated into the handle, leaving no external devices or antennas to get in the way of operation. It also has a color LCD touch-screen and a 36-key keypad, making operation and data entry easy in any working conditions.

Technical Information
Connectivity Technology:
Wireless
Light Source:
Laser
Barcode Symbology Supported:
  • UPC-A/E
  • EAN-8/13
  • Codabar
  • Code 39
  • Code 39 full ASCI
  • Code 93
  • Code 32
  • Interleaved & Std. 2 of 5
  • EAN 128
  • Code 11
  • Delta
  • MSI/Plessey
  • Code 128
  • Toshiba
Drop Specification:
48" To Concrete
RFID
Maximum Read Distance:
13 ft
Minimum Operating Frequency:
860 MHz
Maximum Operating Frequency:
960 MHz
Processor & Chipset
Processor Manufacturer:
Intel
Processor Speed:
520 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
128 MB
Display & Graphics
Screen Mode:
QVGA
Screen Resolution:
240 x 320
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Number of Keys:
36
Keyboard Type:
Alphanumeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b/g
Bluetooth:
Yes
Software
Operating System:
Windows CE 5.0
Battery Information
Battery Capacity:
4050 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
7"
Width:
3.5"
Depth:
6.6"
Weight (Approximate):
1.90 lb
Miscellaneous
Package Contents:
  • RH767 II Handheld Terminal
  • AC Adapter
  • Li-ion Battery Pack
  • Communication / Charging Cable
Certifications & Standards:

IP54 Rated

Item Numbers
UNSPSC: 43211715
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Unitech RH767-9R56P7AADG RFID Reader is also known as UNI-RH767-9R56P7AADG or RH7679R56P7AADG.
