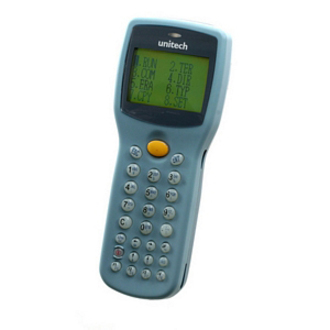

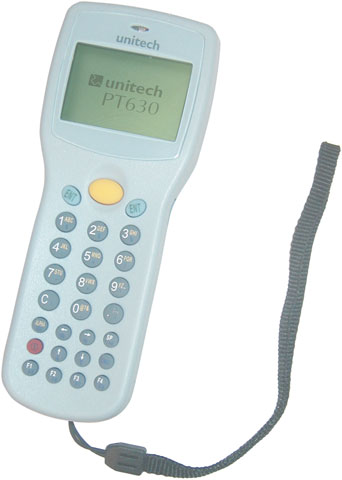

Unitech PT630DWA-3L00B Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Unitech PT630 - 4.5MB RAM, batch, 27 keys, monochrome display. Includes Laser scanner, power supply, battery, & RS-232 communication & charging cable. (formerly listed as (Part# PT630WA-3L00B)

The PT630 is designed to meet your demands in various applications, ranging from Transportation and Warehousing to Mobile Sales, Field Service, Retail, Meter Reading, etc.

Technical Information

  • Operating System: DOS Compatible
  • Processor: 80188
  • Data Collection Type: Batch
  • Scanner Type: Laser Wide Angle
  • Symbologies Supported:
    • China Post
    • Codabar
    • Code 39
    • Code 39 Full ASCII
    • Code 93
    • Code 128
    • EAN-8
    • EAN-13
    • EAN-128
    • Interleaved 2 of 5
    • ITF
    • UPC-A
    • UPC-E
    • China Postal Code

General Information

  • Manufacturer: Unitech
  • Product Line: Portable Terminals (PT)
  • Product Name: PT630 Portable Terminal

Physical Characteristics

  • Display:
    • Monochrome Backlight - 8 Lines x 20 Characters - LCD
    • Monochrome Backlight - 4 Lines x 12 Characters - LCD
  • Display Resolution: 128 x 64
  • Keyboard: 26 Key Alphanumeric
  • Battery Capacity: 900 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions:
    • 6.6" (168mm) x 2.64" (67mm) x 1.38" (35mm)
    • 6.6" (168mm) x 2.64" (67mm) x x 1.38" (35mm)
  • Weight: 245 g - With Battery Pack

Other

  • Additional Information: Interface: RS232 Via Proprietary Cable
  • Package Contents:
    • PT630 Portable Terminal
    • A/C Adapter
    • Battery
    • RS232 Communication Cable
    • Software

Environmental Conditions

  • Environmental Sealing: IP54
  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Drop Spec: 4' To Concrete

Agency Approvals

  • Agency Approvals:
    • CE
    • FCC

Memory

  • RAM Memory: 4.5MB
  • Flash Memory: 256KB

Warranty

  • Manufacturer Warranty: 1 Year(s)

Full specifications (PDF)

Full specifications (PDF)

Brand Unitech
Model PT630
Style Basic
Display Resolution 128 x 64
Operating System DOS
IP Rating IP54
RAM Memory 4.5 MB
Scanner Type Laser
Data Collection Type Batch
Drop Rating 5 ft.1.5 m
