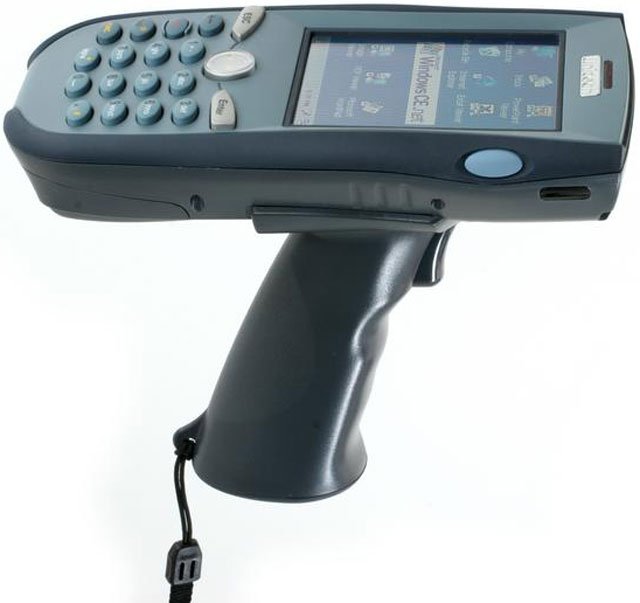

Unitech PA963-922ADG Mobile Computer

The Unitech PA963-922ADG Mobile Computer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Unitech PA963 - Unitech PA963 Portable Terminal - Intel XScale 400 MHz - 64 MB RAM - 64 MB Flash - 3.5" LCD - 19 Keys - Alphanumeric Keyboard - Wireless LAN

Wireless connectivity option lets you transmit data instantly from your handheld terminal to your network while keeping you up to date
Laser scan engine guarantees rapid error free data entry
64 MB RAM / 64 MB flash memory increases business esteem significantly by guaranteeing greatest user efficiency
Store your additional data in the supported CompactFlash memory card
3.5" LCD screen is ideal for scan intensive applications
Alphanumeric keypad allows prompt data input
Built-in Wi-Fi enables seamless transfer of captured images and scanned data between devices

Need a different version? See all Unitech PA963 Mobile Computers

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

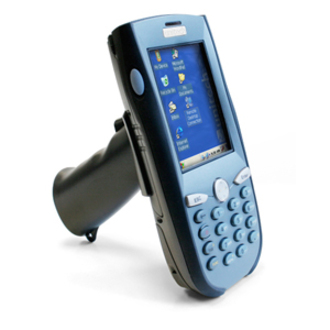

Unitech PA963 Mobile Computer Model Overview

The Unitech PA963 is specifically designed to increase your productivity in the warehouse, on the road, or in the field by dynamically linking data collection and host systems. The PA963 incorporates a comfortable gun-style grip and a built-in scanner for industry standard barcodes, a 19 key keypad, and a touch screen, making data collection simple, fast and accurate. Expansion slots for WLAN or WWAN makes wireless data transaction possible where you really need it - in the field. The Unitech PA963 features an illuminated screen, a double-cell battery pack for long hours between charges, and Windows CE.NET 4.2 Pro Plus edition operating system.

Unitech PA963-922ADG Mobile Computer Overview

Business productivity and efficiency is the irresistible force driving Enterprise to adopt mobile tools. The Unitech PA963 was specifically designed to increase your productivity in the warehouse, on the road, or in the field by dynamically linking data collection and host systems.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Light Source:

Laser

Barcode Symbology Supported:

Codabar
Code 11
Code 32
Code 39 Full ASCII
Code 39 (Standard)
Code 93
Code 128
Delta Code
EAN-13 with Add-on 2/5
EAN-8 with Add-on 2/5
EAN-128
Interleaved 2 of 5
ISBT 128
MSI/PLESSEY
Standard 2 of 5
Toshiba Code
UPC-A with Add-on 2/5
UPC-E with Add-on 2/5

Drop Specification:

48" To Concrete

Processor & Chipset

Processor Manufacturer:

Intel

Processor Type:

XScale

Processor Speed:

400 MHz

Memory

Standard Memory:

64 MB

Flash Memory:

64 MB

Memory Card Slot:

Yes

Memory Card Supported:

CompactFlash

Display & Graphics

Screen Size:

3.5"

Screen Mode:

QVGA

Screen Resolution:

240 x 320

Display Color:

Color

Display Screen Type:

LCD

Keyboard/Keypad

Number of Keys:

Keyboard Type:

Alphanumeric

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11b

Wireless Security:

WPA
WEP
AES
APA2-TKIP

I/O Expansions

Expansion Slot Type:

CompactFlash

Software

Operating System:

Windows CE 5.0 Professional Plus Edition

Battery Information

Battery Capacity:

1850 mAh

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Physical Characteristics

Height:

7.9"

Width:

3.5"

Depth:

5.9"

Weight (Approximate):

1.20 lb

Miscellaneous

Package Contents:

PA963 Portable Terminal
Lithium Ion Battery
USB communication Cable
CD-ROM with manuals &

Additional Information:

Gun Grip Handle

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43211715

Reviews

Q&A

Questions? Get Help from
a Mobile Expert!

The Unitech PA963-922ADG Mobile Computer is also known as UNI-PA963-926ADG or PA963922ADG.
