Unitech PA692 – Mobile Computer – Windows Embedded Handheld 6.5 – 512 MB

Part Number: PA692-H261UMDG
Model: PA692
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
RAM Memory
512 MB
IP Rating
IP65
Interface Options
Bluetooth, Wi-Fi
Operating System
Windows Embedded Handheld 6.5

Product Description:

  Mobile Computer, Unitech PA692, Windows Embedded Handheld 6.5, Bluetooth, Wi-Fi, Standard Range, 2D Imager, 512 MB RAM, 512 MB Flash, IP65, Phone-size, Numeric, Camera, USB, Battery, Power Adapter
Explore all Unitech PA692 Mobile Computers
Add to Quote

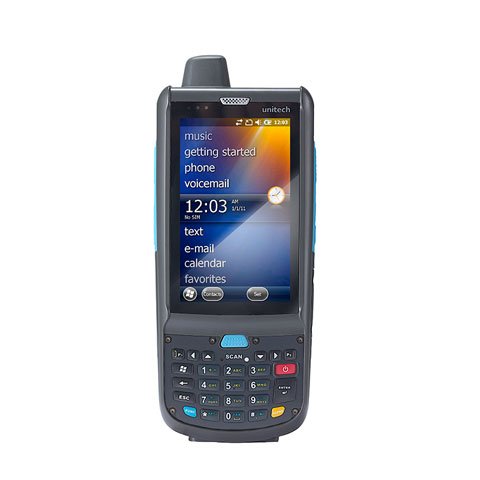

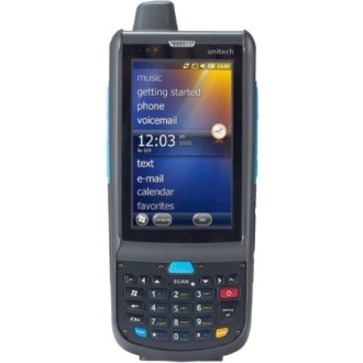

Unitech PA692-H261UMDG Mobile Computer
Unitech PA692-H261UMDG Mobile Computer
Unitech PA692-H261UMDG Mobile Computer Unitech PA692-H261UMDG Mobile Computer
Full specifications (PDF)

Unitech PA692 Mobile Computer Model Overview

The PA692 is a rugged mobile computer that combines the latest 3.75G wireless communication and advanced performance to provide the best data communications in today’s aggressive business environment. PA692 also offers field-based workers with a host of data collection tools and a comprehensive wireless communication platform, all in a compact, durable and ergonomic form factor.PA692 offers an integrated 1D / 2D scanning capability, as well as a HF and UHF RFID reader / writer, GPS, and a high resolution 5.0 megapixel digital camera, combining multiple functions in one compact size which reduces the cost to purchase different devices. Besides, featuring latest NFC communication, PA692 offers convenient short-range communication between electronic devices. It enhances the service levels in ticket tracking, identity asset management applications
Unitech PA692-H261UMDG Mobile Computer Overview
The PA692 is a rugged handheld computer designed to yield impressive results in any work environment.

Upgraded Platform
The PA692 optimizes worker productivity through better processing and storage capabilities. Powered by a faster, industrial-grade processor and an expanded 512 MB RAM/512 MB ROM of memory, the PA692 is ideal for highly mobile and data intensive applications. The PA692 also features a large 3.8" WVGA high-resolution LCD screen, a dual microphone, a 5-megapixel camera with flash and video, and a 2D scanner option for all-in-one functionality.
Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Image Sensor Type:
Imager
Barcode Symbology Supported:
1D:
  • Australian post
  • British post
  • Canedian post
  • Codabar
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • EAN 13
  • EAN 8
  • IATA 2 of 5
  • ITF
  • ISBT
  • Japanesepost
  • Kix code (nl)
  • Korean post
  • Matrix 2 of 5
  • MSI
  • Planet code
  • Postnet
  • RSS expanded
  • RSS limited
  • RSS 14
  • UPC A
  • UPC E
  • UPC E1
2D:
  • Aztec
  • Codablock F
  • Code 49
  • Datamatrix
  • EAN-UCC
  • composite
  • Maxicode
  • Micro PDF417
  • PDF 417
  • QR code
  • Tcif lonked C39
Drop Specification:
  • 1.5m
Processor & Chipset
Processor Manufacturer:
Texas Instruments
Processor Type:
ARM
Processor Speed:
1 GHz
Memory
Standard Memory:
512 MB
Flash Memory:
512 MB
Memory Card Slot:
Yes
Memory Card Supported:
  • microSD
  • microSDHC
Maximum Memory Card Size Supported:
32 GB
Display & Graphics
Screen Size:
3.8"
Screen Mode:
WVGA
Screen Resolution:
800 x 480
Display Color:
Color
Display Screen Type:
LCD
Keyboard/Keypad
Number of Keys:
26
Keyboard Type:
Numeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g
Bluetooth:
Yes
Antenna Form Factor:
Internal
Interfaces/Ports
USB:
Yes
Serial:
Yes
Camera
Rear Camera:
Yes
Rear Camera Resolution:
5 Megapixel
Battery Information
Battery Chemistry:
Nickel Metal Hydride (NiMH)
Physical Characteristics
Height:
7"
Width:
2.9"
Depth:
1.6"
Miscellaneous
Certifications & Standards:
  • IP65
  • CCX4 Compliance
  • CE
  • FCC
  • BSMI
  • VCCI
  • CCC
  • ISO 9001:2000
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0095205700800, 0851295001841
UPC: 095205700800, 851295001841
EAN: 0095205700800, 0851295001841
UNSPSC: 43211715
