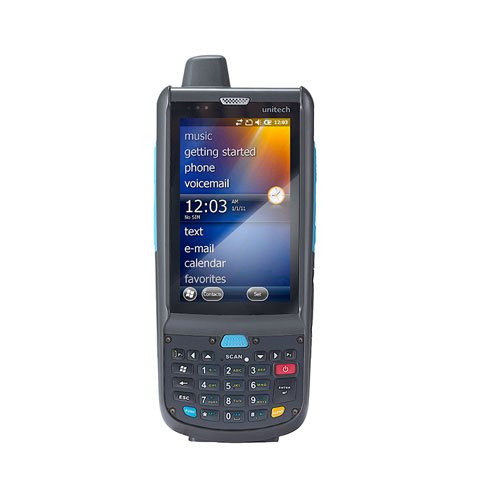

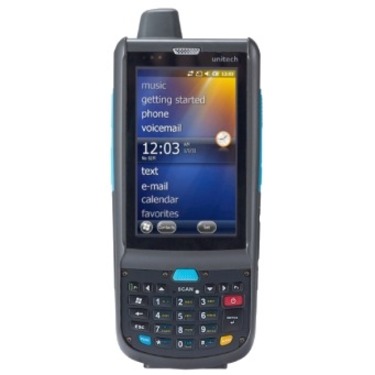

Unitech PA692-9261UMHG Mobile Computer

The Unitech PA692-9261UMHG Mobile Computer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Unitech PA692 - Mobile Computer, Unitech PA692, Windows Embedded Handheld 6.5, Bluetooth, Wi-Fi, Standard Range, 1D Laser, 512 MB RAM, 512 MB Flash, IP65, Phone-size, Numeric, Extended Battery, USB, Power Adapter
  • 3.8" WVGA display screen allows you to execute two applications at the same time
  • Features numeric keypad to meet different client and application needs
  • 512 MB RAM / 512 MB flash memory helps run applications rapidly and stores the mightiest databases
  • Expand your data storage option with the microSD card slot
  • Wireless connectivity option lets you transmit data instantly from your handheld terminal to your network while keeping you up to date
  • Experience the versatility of Bluetooth connectivity with your Unitech Handheld Terminal
Read More
Discontinued Need Assistance?
Add to Quote
Unitech PA692 Mobile Computer Model Overview
The PA692 is a rugged mobile computer that combines the latest 3.75G wireless communication and advanced performance to provide the best data communications in today’s aggressive business environment. PA692 also offers field-based workers with a host of data collection tools and a comprehensive wireless communication platform, all in a compact, durable and ergonomic form factor.PA692 offers an integrated 1D / 2D scanning capability, as well as a HF and UHF RFID reader / writer, GPS, and a high resolution 5.0 megapixel digital camera, combining multiple functions in one compact size which reduces the cost to purchase different devices. Besides, featuring latest NFC communication, PA692 offers convenient short-range communication between electronic devices. It enhances the service levels in ticket tracking, identity asset management applications
Unitech PA692-9261UMHG Mobile Computer Overview
The PA692 is a rugged handheld computer designed to yield impressive results in any work environment.

Upgraded Platform

The PA692 optimizes worker productivity through better processing and storage capabilities. Powered by a faster, industrial-grade processor and an expanded 512 MB RAM/512 MB ROM of memory, the PA692 is ideal for highly mobile and data intensive applications. The PA692 also features a large 3.8" WVGA high-resolution LCD screen, a dual microphone, a 5-megapixel camera with flash and video, and a 2D scanner option for all-in-one functionality.
Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:
1D:
  • UPC-A/E
  • EAN-8/13
  • Codabar
  • Code 39
  • Code 39 full ASCI
  • Code 93
  • Code 32
  • Interleaved & Std. 2 of 5
  • EAN 128
  • Code 11
  • Delta
  • MSI/Plessey
  • Code 128
Drop Specification:
  • 1.5m
Processor & Chipset
Processor Manufacturer:
Texas Instruments
Processor Type:
ARM
Processor Speed:
1 GHz
Memory
Standard Memory:
512 MB
Flash Memory:
512 MB
Memory Card Slot:
Yes
Memory Card Supported:
  • microSD
  • microSDHC
Maximum Memory Card Size Supported:
32 GB
Display & Graphics
Screen Size:
3.8"
Screen Mode:
WVGA
Screen Resolution:
800 x 480
Display Color:
Color
Display Screen Type:
LCD
Keyboard/Keypad
Number of Keys:
26
Keyboard Type:
Numeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g
Bluetooth:
Yes
Antenna Form Factor:
Internal
Interfaces/Ports
USB:
Yes
Serial:
Yes
Camera
Rear Camera:
Yes
Rear Camera Resolution:
5 Megapixel
Battery Information
Battery Capacity:
4000 mAh
Battery Chemistry:
Nickel Metal Hydride (NiMH)
Battery Included:
Yes
Physical Characteristics
Height:
7"
Width:
2.9"
Depth:
1.6"
Weight (Approximate):
15.17 oz
Miscellaneous
Package Contents:
  • Rugged Handheld Computer
  • Extended Battery
Certifications & Standards:
  • IP65
  • CCX4 Compliance
  • CE
  • FCC
  • BSMI
  • VCCI
  • CCC
  • ISO 9001:2000
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211715
