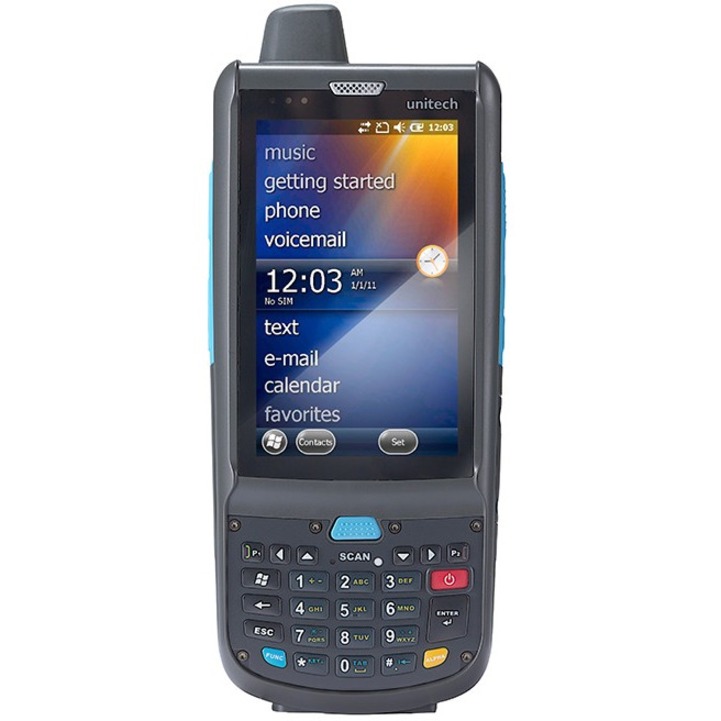

Unitech PA692-9200QMDG Mobile Computer

The Unitech PA692-9200QMDG Mobile Computer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Unitech PA692 - Mobile Computer, Unitech PA692, Windows Embedded Handheld 6.5, Bluetooth, Wi-Fi, Standard Range, 1D Laser, 512 MB RAM, 512 MB Flash, IP65, Phone-size, QWERTY, USB, Power Adapter
  • Windows Embedded Handheld 6.5 Professional and Classic platform
  • ? Advanced performance with industrial grade 1GHz processor
  • ? Latest 3.75G wireless communication, WiFi, GPS, Bluetooth® 2.1 + EDR , CCX4 certified
  • ? Large 3.7" WVGA high-resolution LCD
  • ? Dual microphone designed for clear voice communication
  • ? Rugged Construction: IP65 rated and 1.5M drop certified
  • ? All-in-one Function: Built-in 1D/2D scanner and HF/NFC/UHF RFID Reader
Read More
Discontinued Need Assistance?
Add to Quote
Unitech PA692 Mobile Computer Model Overview
The PA692 is a rugged mobile computer that combines the latest 3.75G wireless communication and advanced performance to provide the best data communications in today’s aggressive business environment. PA692 also offers field-based workers with a host of data collection tools and a comprehensive wireless communication platform, all in a compact, durable and ergonomic form factor.PA692 offers an integrated 1D / 2D scanning capability, as well as a HF and UHF RFID reader / writer, GPS, and a high resolution 5.0 megapixel digital camera, combining multiple functions in one compact size which reduces the cost to purchase different devices. Besides, featuring latest NFC communication, PA692 offers convenient short-range communication between electronic devices. It enhances the service levels in ticket tracking, identity asset management applications
Unitech PA692-9200QMDG Mobile Computer Overview

Stay competitive with latest wireless technology

The PA692 is a rugged mobile computer that combines the 3.75G wireless communication and advanced performance to provide the best data communications in today's aggressive business environment. PA692 also offers field-based workers with a host of data collection tools and a comprehensive wireless communication platform, all in a compact, durable and ergonomic form factor.

All-in-one Functionality

PA692 offers an integrated 1D / 2D scanning capability, as well as a HF and UHF RFID reader / writer, GPS, and a high resolution 5.0 megapixel digital camera, combining multiple functions in one compact size which reduces the cost to purchase different devices. Besides, featuring latest NFC communication, PA692 offers convenient short-range communication between electronic devices. It enhances the service levels in ticket tracking, identity asset management applications

Faster and more productive

Powered by industrial-grade 1GHz TI AM3715 processor and runs on a flexible Windows Embedded Handheld 6.5 platform, PA692 delivers the faster performance in highly mobile environments. In addition to 512MB NAND Flash and 512 DDR SDRAM to boast ample internal memory, PA692 also supports microSD expansion with an additional 32GB of storage capacity for data-intensive applications.

Rugged design

Able to withstand multiple 5-foot drops to concrete and IP65-sealed against water and dust, the PA692 is an extremely rugged outside-the-four-walls device you can count on to perform under harsh conditions. This durable design mitigates device downtime that negatively impacts business-critical applications. The PA692 features a comprehensive wireless platform that includes integrated GPS, Bluetooth® 2.1 + EDR, WiFi and 3.75G connectivity. The PA692's external antenna for WWAN and WLAN ensure excellent wireless connectivity and performance. Field mobile workers can easily access information and accelerate their workflow while they're on the go.

Accessories and options

PA692 offers various model options and accessories to fit your needs. Complement your mobile solution with various communication and charging cradles, extended batteries, car kits and headsets - anything and everything you'll need to make the PA692 the ideal rugged handheld solution for your mobile workforce.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Light Source:
Laser
Scanner Range:
Standard Range
Features:
  • Water Resistant
  • VoIP
Drop Specification:
Drop Specification 1.5m (5 feet)
Processor & Chipset
Processor Manufacturer:
Texas Instruments
Processor Model:
AM3715
Processor Speed:
1 GHz
Memory
Standard Memory:
512 MB
Flash Memory:
512 MB
Memory Card Supported:
  • microSD
  • SDHC
Display & Graphics
Screen Size:
3.7"
Screen Mode:
WVGA
Screen Resolution:
800 x 480
Display Screen Type:
LCD
Keyboard/Keypad
Number of Keys:
44
Keyboard Layout:

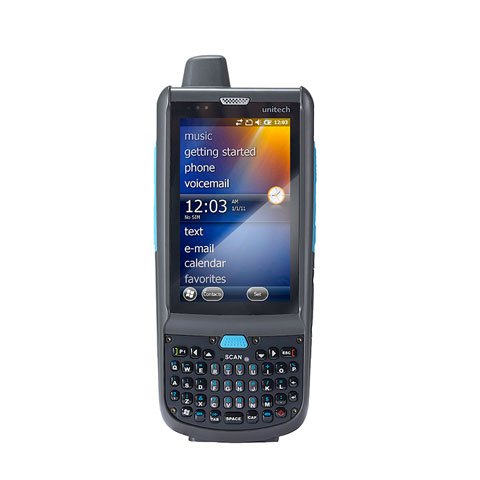

QWERTY
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 2.1 + EDR
GPS:
Yes
Interfaces/Ports
USB:
Yes
Camera
Rear Camera:
Yes
Rear Camera Resolution:
5 Megapixel
Software
Operating System:
Microsoft Windows Embedded Handheld 6.5 Professional
Software Supported:
  • Microsoft Visual Studio 2005/2008
  • Mobile SIP(VoIP)
  • Auto Installer
Power Description
Power Source:
Battery
Battery Information
Battery Included:
Yes
Battery Voltage:
3.70 V
Environmental Conditions
Operating Temperature:
14°F (-10°C) to 122°F (50°C)
Storage Temperature:
-4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
Phone-size
Rugged:
Yes
Height:
2.9"
Width:
7"
Depth:
1.6"
Miscellaneous
Package Contents:
  • PA692 Rugged Handheld Computer
  • Battery
  • Stylus
  • Elastic Stylus String
  • Hand Strap
  • USB Cable
  • Adaptor with plugs(US/EU/UK)
Application/Usage:
  • Warehouse
  • Field Sales/Service
  • Manufacturing
  • Government
Ingress Protection (IP) Rating:
IP65
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 43211715
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Unitech PA692-9200QMDG Mobile Computer is also known as UNI-PA6929200QMDG
