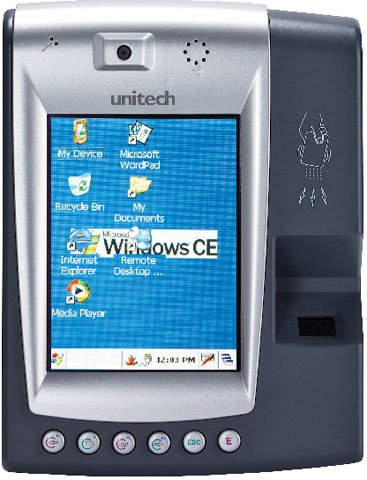

Unitech MT650-A6EEAG Data Terminal
Unitech MT650 Data Terminal Model Overview
Key Features
- Powered by WindowsCE.NET 6.0
- Large 480 by 640 pixel color VGA display with touch screen
- Built-in barcode, proximity, Mifare, and fingerprint readers
- 2.0 MP CMOS camera
- Speaker output and microphone input
- Two relay output controls and two TTL digital inputs
- Built-in UPS for 1-hour operation
- Optional wireless communication support (802.11b/g)
- Ethernet with optional POE (Power over Ethernet)
Specifications
- Performance Characteristics:
- OS: WindowsCE.NET 6.0
- CPU: Samsung 6410
- Display: 5.7" TFT-LCD VGA (480 X 640) color
- DDR: 256MB
- FlashROM: NAND 256MB
- Readers:
- EM 125 kHz
- MiFare
- HID Barcode reader 13.56 MHz
- Fingerprint Input: EER <0.1%
- 1:1 verification time < 1 sec
- 1:N Identification time < 1 sec
- Template capacity: 1900
- I/O:
- 2 Digital inputs
- 2 Output relays
- Audio speaker (0.8W)
- Ethernet connection: One RJ45 with optional PoE
- Power Management:
- Power Input: DC 12V/2A
- UPS: One rechargeable Lithium-ion battery pack (7.4V, 1200 mAH)
- Micro-backup battery for keeping RTC data (6 days)
- Expansion:
- SDIO for SDHC memory storage (up to 16 GB)
- USB Host 1.1
- Physical and Environmental:
- Dimensions: 223L x 168W x 51H mm
- Weight: 1310g
- Humidity: 5% to 95% RH non-condensing
- Operating temperature: -10°C to 50°C
- Storage temperature: -20°C to 70°C (-4°F to 158°F)
