MT380 is a cutting-edge multi-function terminal designed for Time & Attendance (T&A) and Access Control applications. With its compact design and advanced Windows CE operating system, this device is perfect for various applications such as loyalty programs and shop floor management. The MT380 supports high-speed communication via Ethernet and optional WiFi, features a vibrant 3.5" touch screen, and accommodates various auto ID readers, ensuring seamless operation in any environment. Its comprehensive SDK empowers developers to create tailored applications, while the built-in advanced security features enhance operational efficiency and security. This terminal truly encapsulates versatility in a compact solution for businesses seeking robust attendance and access management systems. Key Features:
Windows CE OS for seamless application integration
Multi-function Access Control and Time Attendance capabilities
3.5" color TFT-LCD touch screen for easy interaction
Supports various readers: fingerprint, HID/EM Proximity, and MiFare
High-speed Wired & Wireless Communication options available
Programmable SDK for custom application development
Specifications:
Operating System: WinCE Professional
CPU: Intel PXA270 520Mhz
FlashROM: 64MB
SDRAM: 128MB
Keyboard: 17 hard keys (12 numeric, 5 function)
Display: 3.5" color TFT-LCD QVGA (320x240)
Power Input: DC 12V/2A
Communication:
RS232, RS485, USB, Ethernet
Optional high-speed wireless LAN 802.11b/g
Supported Readers: EM Proximity, Fingerprint, MiFare
Dimensions: 228 mm (L) x 100 mm (W) x 35 mm (H)
Weight: 485 gm
Operating Temperature: 32°F~122°F (0°˚C-50°C)
Storage Temperature: -4°F~158°F (-20°C-70°C)
Humidity: 5% to 95% RH non-condensing

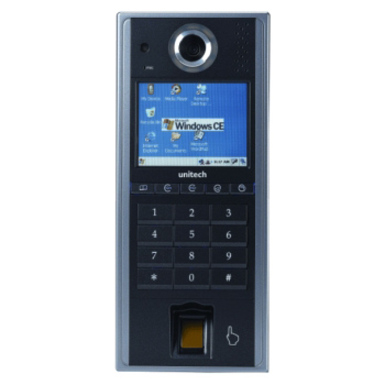

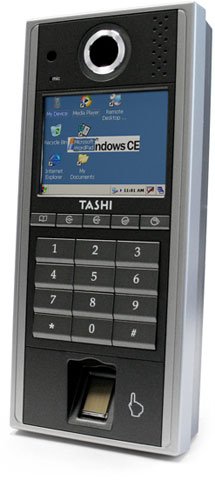

Unitech MT380-THEEAG Data Terminal Overview
Grant access to anyone, anywhere and at anytime. The MT380 is one of the most compact IP-based Time & Attendance / Access Control terminals on the market. Operating on the versatile Windows CE 5.0 platform, the MT380 can be customized for deployment in numerous vertical applications.
For access control and security assurance, the MT380 utilizes a host of unique features, such as integrated proximity and fingerprint readers, 2-megapixel camera and microphone. Also, data input is seamless with a large numeric keypad, function keys and 3.5-inch QVGA color touch-screen. The MT380 offers Ethernet and WiFi network connectivity, and supports POE to eliminate the need for additional AC power adapters.
The Unitech MT380-THEEAG Data Terminal is also known as
UNI-MT380-THEEAG
or MT380THEEAG.
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
