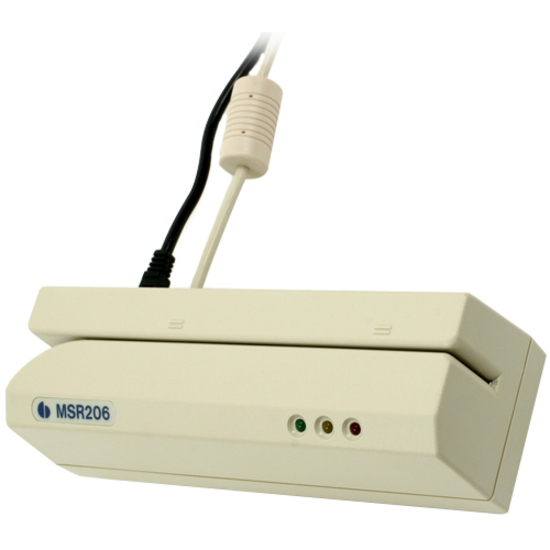

Unitech MSR206-33U Credit Card Reader

The MSR206 Manual Swipe Magnetic Card Reader/Writer is a reliable and versatile solution for reading and writing magnetic stripe cards, compliant with ISO 7811 formats. With the capability to handle up to three tracks of data simultaneously, this device supports a wide range of applications, including credit card verification. Engineered for performance, it offers a swift swipe speed of 5-55 inches per second, making transactions smooth and efficient. The MSR206's robust construction ensures durability, backed by a three-year warranty and certification from ISO 9001, CE, FCC, UL, and CUL.

Key Features:

• ISO Compliance: Reads/writes magnetic stripe cards in ISO 7811 formats.
• High Performance: Operates at 5-55 ips with precise data handling.
• Versatile Applications: Ideal for diverse card-related tasks including credit card swipes.
• Durable Design: Manufactured in an ISO 9001 certified facility with a robust build.
• Three-Year Warranty: Enjoy peace of mind with a reliable warranty.

Specifications:

• Electrical:
• Operating voltage: +24VDC +/- 5%
• Power Consumption: Typical 350mA Max.
• Communication: Standard RS232 signal levels
• Ripple: 50mVp-p or less
• Mechanical:
• Body Material: PC 94V-0
• Dimensions: 210(L) x 60(W) x 65(H) mm
• Weight: Approx. 1.5kg
• Swipe: Manual, single direction
• Environmental:
• Operation: 14° to 131° F (10 to 85% humidity)
• Storage: -22° to 158° F (10 to 90% humidity)
• Performance:
• Read Speed: 5-55 ips
• Write Speed: 5-30 ips
• Error Rate: Read <0.5%, Write <0.8%
• Head Life: Min. 1,000,000 swipes
