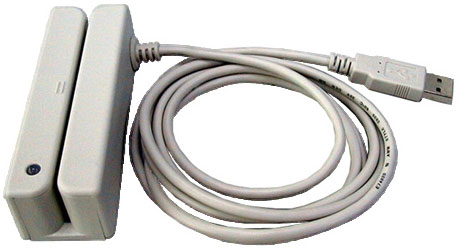

MSR120-33U Credit Card Reader

The Unitech MSR120 Magnetic Stripe Reader is a reliable and versatile solution designed for all your magnetic stripe reading needs. Ideal for point of sale, access control, and self-service applications, the MSR120 is user-friendly and quick to install. This compact device comes in dual and triple track configurations to read ISO cards effectively and can easily connect to any PC or Mac via RS232 or USB interfaces. The bi-directional card swiping capability enhances efficiency while the LED feedback system keeps you informed of its operational status.

Key Features:

• Bi-directional card swiping
• Compatible with PCs and Mac computers
• Compact space-saving design
• RS232 or USB interface
• Advanced data editing capabilities
• Supports ISO 7811, AAMVA, & CA DMV formats

Specifications:

• Mechanical:
  • Magnetic Stripe Formats: ISO 7811, & CA DMV
  • Swipe Speed: 3 to 55 inches per second
  • Card Width: 0.010 to 0.050 inches
  • Slot Width: 0.055 inches
  • Decoding: Standard with advanced output data editing
  • Dimensions: 3.94" (L) x 1.38" (W) x 1.18" (H)
  • Weight: Approximately 9 oz. (with cable)
  • Color: Beige or black
  • Swipe: Bi-directional
  • Cable Length: 74" (1.8M)
  • Connectors: USB, RS232 emulation
  • Mounting: 2 mounting holes with brass threaded inserts, Velcro strips
  • Reliability: MTBF 125,000 hours
  • Magnetic Head Life: Minimum 1,000,000 passes
  • Rail and Cover Life: Minimum 1,000 passes
  • Read Rate: Less than 1 error in 100,000 bits on ISO 7811 cards
• Environmental:
  • Operating Temperature: 0°C to 55°C (32°F to 131°F)
  • Storage Temperature: -30°C to 70°C (-22°F to 158°F)
  • Rating: Maximum 95% RH non-condensing

MSR120 Magnetic Stripe Reader provides a simple, reliable, and versatile magnetic stripe reading solution for all your MSR needs. The MSR120 is available in triple track and Bi-directional configurations for reading ISO 7811, AAMVA, & CA DMV formats cards and driver's licenses. Readers can be affixed to most computer keyboards or to any flat surface, and connected to any PC or Mac via USB interface.
