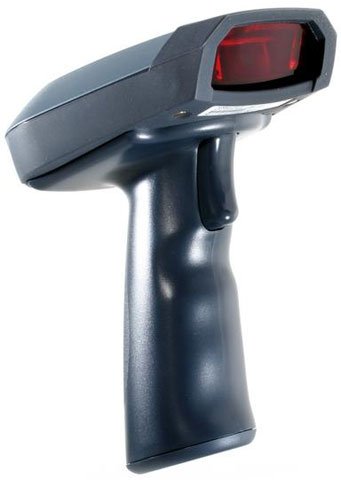

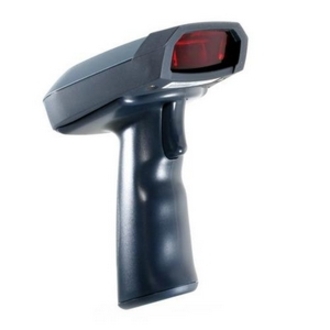

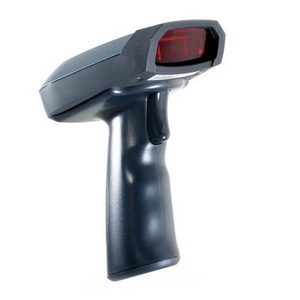

Unitech MS860 – Barcode Scanner – 1D

Part Number: MS860-WRA
Model: MS860

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
Laser

Product Description:

  MS860 Wireless Laser Scanner (Bluetooth, RS232 with MS086 Dock and Charging/Communication Station)

Unitech MS860 Barcode Scanner Model Overview

Sleek and lightweight, the wireless Unitech MS860 can range up to 30 meters from its charging and communications cradle. The MS860 can withstand multiple 5 foot drops onto concrete floors, thanks to its surrounding rubber nose and bumper. The MS860's high speed scanning, low power consumption and effective depth of field, make the Unitech MS860 suitable for a wide range of applications. Furthermore, our powerful decoder allows data to be edited and formatted before it is sent to the host, which saves time and money by making software changes unnecessary.
Unitech MS860-WRA Barcode Scanner Overview

Unitech MS860 Wireless handheld wireless scanner frees users from restricting cables and base stations. The MS860 Wireless is ideal for real-time bar code data collection in warehouse, loading dock applications, inventory, back office, document tracking, retail environments - anywhere users want unrestricted movement or unlimited access. The incorporated 802.11b module allows the MS860 to be normally used within approximately 30 meters from a wireless network access point, and up to 100 meters in an open environment, giving users real mobility and freedom to easily scan bulky and hard to reach items.

Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:
  • China Postal Code
  • Codabar
  • Code 11
  • Code 32
  • Code 39 (Standard)
  • Code 39 Full ASCII
  • Code 93
  • Code 128
  • Delta Code
  • EAN-8
  • EAN-13
  • EAN-128
  • Italian Pharmacy
  • Label Code IV
  • Label Code V
  • MSI
  • Interleaved 2 of 5
  • Standard 2 of 5
  • UPC-E
  • UPC-A
  • Plessey
Light Source:
Laser
Scan Rate:
35 scan/s
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 25"
Scanning Distance:
328.08 ft
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
3.7 V DC
Power Source:
Battery
Power Supply Included:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Handheld
Height:
5.7"
Width:
3.5"
Depth:
5.1"
Weight (Approximate):
10.90 oz
Miscellaneous
Package Contents:
  • MS860 WiFi Laser Bar Code Reader
  • Dock Charger
  • Power Supply Unit
Additional Information:

Supported Interfaces:

  • RS232
  • USB
  • Keyboard Wedge

USB Cable separate

Certifications & Standards:
  • CE
  • FCC
  • BSMI
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
