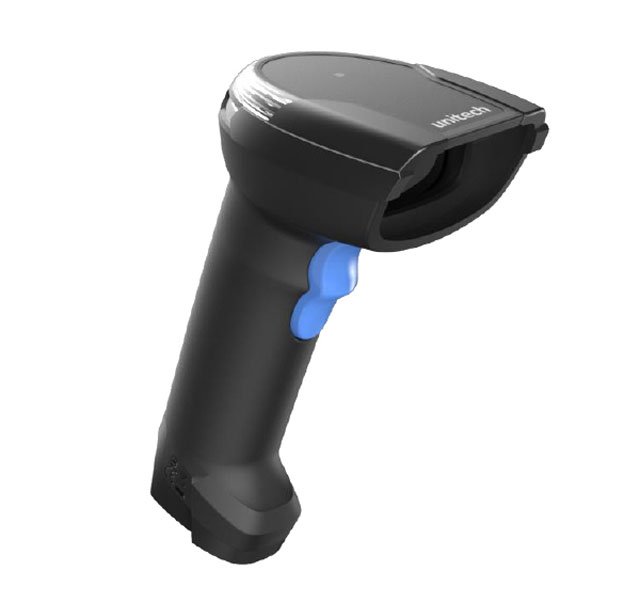

Unitech MS851 – Barcode Scanner – Corded – 1D – Cable Only
Full specifications (PDF)
Unitech MS851 Rugged Barcode Scanner Model Overview
Key features:
- Long working range: Exceptional performance from near to 4.5m.
- High-speed scanning: Up to 104 scans per second for quick data processing.
- Durable design: Survives 2.1m drops and is IP42 rated for rugged use.
- Long lifecycle: Trigger lasts up to 10 million activations.
- User-friendly: Multiple modes and feedback indicators enhance operational efficiency.
Specifications:
- Optical & Performance:
- Receiving Device: 650 nm visible laser diode
- Scan Rate: 104 (12) scans/sec (bidirectional)
- Depth of Field: Various ranges depending on barcode type
- Electrical:
- Operation Voltage: 4 VDC to 5.5 VDC
- Current Consumption: <110mA in operation, <20mA in standby
- Environmental:
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
- Storage Temperature: -40°C to +70°C (-40°F to +158°F)
- Mechanical:
- Weight: 147g without cable
- Dimension: 87.8 L x 71.6 W x 177.7 H (mm)
Recommended Accessories
Category
- Mounting Hardware and Stands (2)
Recommended Accessories for Model: Unitech MS851-SUCB00-SG Barcode Scanner
Top Mounting Hardware and Stands Purchased With Unitech MS851-SUCB00-SG
-
Unitech 5200-900009G Mounting Hardware and StandsStand, Unitech MS851 Hand Free StandItem on backorder — chat for lead time$21.60 -
Unitech 5200-900011G Mounting Hardware and StandsStand, Unitech MS851 and MS852 Desktop StandItem on backorder — chat for lead time$7.71
Frequently Asked Questions
What is the maximum scanning range of the Unitech MS851?
The Unitech MS851 offers an impressive scanning range of up to 4.5 meters (100mil Code39), providing the widest working range in its class. This extended range makes it ideal for applications requiring scanning from a distance, such as document processing and inventory management.
Is the Unitech MS851 durable enough for warehouse and industrial use?
Yes, the MS851 is built with ultra-rugged design specifications including IP42 protection against dust and moisture, and can withstand a 2.1 meter drop to concrete. The scanner also features a long lifecycle trigger rated for up to 10 million activations, ensuring reliable performance in demanding warehouse and industrial environments.
What barcode symbologies does the Unitech MS851 support?
The MS851 supports most standard 1D linear barcodes, including formats commonly used in retail and inventory applications. Its powerful scan engine is capable of reading even damaged or poorly printed barcodes with high accuracy and speed.
How fast is the scanning speed on the MS851?
The MS851 delivers automatic scanning capability with a scan rate of up to 104 scans per second, providing fast and accurate barcode capture for high-volume retail and inventory operations. This high-speed performance combined with its sensitive scanning engine ensures reliable reading even in challenging conditions.
What connectivity options are available for the Unitech MS851?
The MS851 connects via USB interface, making it compatible with most modern POS systems, computers, and warehouse management software. This standard connectivity option simplifies integration into existing warehouse and retail environments.
What is the weight and ergonomic design of the MS851?
The MS851 is lightweight at 147 grams without cable, making it comfortable and easy to use for extended scanning sessions. Combined with its intuitive handheld design and louder beeper and brighter LED indicators for clear feedback, it's built for practical, all-day use in retail and inventory applications.
