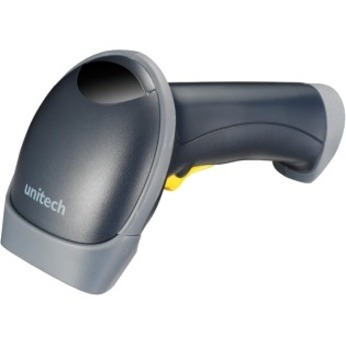

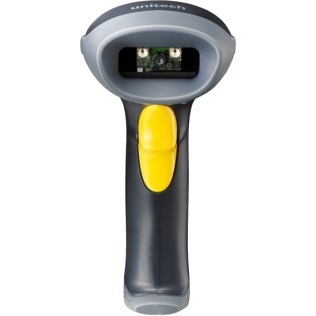

Unitech MS842-DUCB00-SG Barcode Scanner

The Unitech MS842-DUCB00-SG Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Unitech MS842 - Unitech Handheld Imager Scanner (2D) - Cable Connectivity - 1D, 2D - CMOS
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
Read More
Discontinued Need Assistance?
Add to Quote
Unitech MS842 Barcode Scanner Model Overview
Due to the high speed decoder and high performance engine this MS842 2D scanner is one of the most efficient scanning solution in its class. It can easily be used in high demanding scanning applications like ticket management or security during events, industrial shipment management and inventory management in pharmacies. Users can depend on this efficient scanner without hesitation, wherever it is being used. The large decode distance, wide scan angles and buzzer ensures a high efficiency level.Durability and low cost of ownership.
Unitech MS842-DUCB00-SG Barcode Scanner Overview

The Unitech MS842 combines efficiency, durability and reliability into a compact, lightweight handheld scanner. Supporting all common 1D and 2D barcodes, the MS842 can be used in a wide variety of markets and applications.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • Code 39
  • Full ASCII Code39
  • Interleave 2 of 5
  • Standard 2 of 5
  • UPC A/E
  • Delta Code
  • Label Code
  • MSI/ Plessy
  • Codabar
  • Code 11
  • EAN8/13
  • Code 93
  • Code 128
  • EAN128
  • Code32
  • Toshiba Code
  • GS1 databar Code
2D:
  • PDF417
  • MicroPDF417
  • Datamatrix
  • QR Code
  • Micro QR Code
  • Aztec
  • RSS
  • Composite
  • TLC -39
  • MaxiCode

Postal:
  • US PostNet
  • US Planet
  • UK Postal
  • Australian Postal
  • Japan Postal
  • Dutch Postal (KIX)
Image Sensor Type:
CMOS
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 4.1cm - 9.7cm@3mil - Code 39
  • 4.6cm - 8.9cm@4mil - PDF417
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
6.9"
Width:
2.9"
Depth:
3.5"
Weight (Approximate):
7 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:
  • IP42
  • ISO 9001:2000
  • CE
  • FCC
  • BSMI
  • VCCI
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0851295001698, 4056572770205
UPC: 851295001698
EAN: 0851295001698, 4056572770205
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Unitech MS842-DUCB00-SG Barcode Scanner is also known as UNI-MS842DUCB00SG or MS842DUCB00SG.
