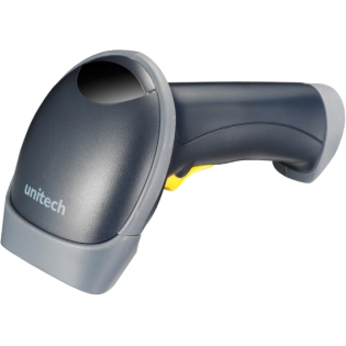

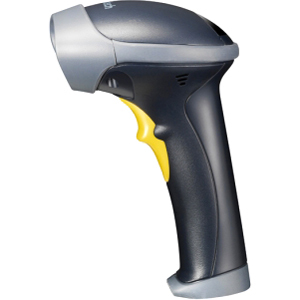

Unitech MS842-D0PBGD-SG Barcode Scanner

Unitech MS842-DUPBGN-QG Barcode Scanner A newer version of this item is available.
It is replaced by the Unitech MS842-DUPBGN-QG Barcode Scanner.
Unitech MS842P - Unitech High Value, Low Cost 2D Imager - Wireless Connectivity - 1D, 2D - Imager - , Radio Frequency
Discontinued See Replacement
Add to Quote
Unitech MS842P Barcode Scanner Model Overview
Delivering efficiency, durability and compact size, the device combines superior 1D and 2D barcode scanning with the freedom of wireless technology. The well integrated mobility design allows users to move around without being restricted, while supporting high comfort over long periods of operation. MS842P is a friendly device for a broad variety of markets and applications. While sustaining a 1.8 meter drop to concrete, MS842P incorporated with IP42 rugged design for protection against dust and moisture. In additions to offer a 10M operation range via its USB dongle, the simple plug-and-play design of MS842P makes the installation much easier without complicated set-up. Moreover, the built-in long life trigger of 10 million times guarantees a continuous productivity for best reliability. In addition to all of those benefits, the MS842P helps to store data in a buffer mode while it is out of range of the wireless signal, and also upload the data when it gets back in range.
Unitech MS842-D0PBGD-SG Barcode Scanner Overview
The Unitech MS842 combines efficiency, durability and reliability into a compact, lightweight handheld scanner. Supporting all common 1D and 2D barcodes, the MS842 can be used in a wide variety of markets and applications.
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Code 39
  • Full ASCII Code39
  • Interleave 2 of 5
  • Standard 2 of 5
  • UPC A/E
  • Delta Code
  • Label Code
  • MSI/ Plessy
  • Codabar
  • Code 11
  • EAN8/13
  • Code 93
  • Code 128
  • EAN128
  • Code32
  • Toshiba Code
  • GS1 databar Code

2D:

  • PDF417
  • MicroPDF417
  • Datamatrix
  • QR Code
  • Micro QR Code
  • Aztec
  • RSS
  • Composite
  • TLC -39 MaxiCode

Postal:

  • US PostNet
  • US Planet
  • UK Postal
  • Australian Postal
  • Japan Postal
  • Dutch Postal (KIX)
Image Sensor Type:
Imager
Network & Communication
Radio Frequency:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
6.9"
Width:
2.9"
Depth:
3.5"
Weight (Approximate):
7 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:
  • CE
  • FCC
  • BSMI
  • VCCI
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Unitech MS842-D0PBGD-SG Barcode Scanner is also known as UNI-MS842D0PBGDSG or MS842D0PBGDSG.
