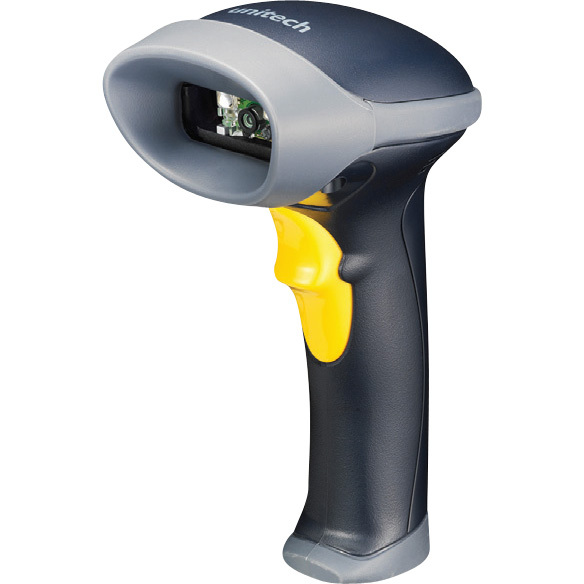

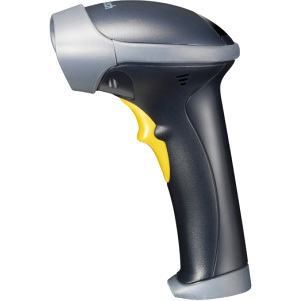

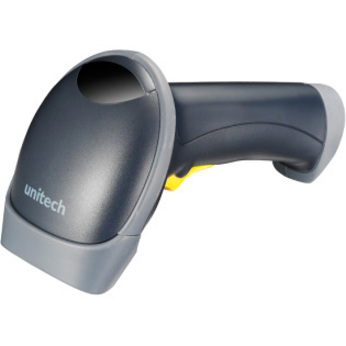

Unitech MS842-2UPBGC-SG Barcode Scanner
Delivering efficiency, durability and compact size, the device combines superior 1D and 2D barcode scanning with the freedom of wireless technology. The well integrated mobility design allows users to move around without being restricted, while supporting high comfort over long periods of operation. MS842P is a friendly device for a broad variety of markets and applications. While sustaining a 1.8 meter drop to concrete, MS842P incorporated with IP42 rugged design for protection against dust and moisture. In additions to offer a 10M operation range via its USB dongle, the simple plug-and-play design of MS842P makes the installation much easier without complicated set-up. Moreover, the built-in long life trigger of 10 million times guarantees a continuous productivity for best reliability. In addition to all of those benefits, the MS842P helps to store data in a buffer mode while it is out of range of the wireless signal, and also upload the data when it gets back in range.
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Barcode Symbology Supported:
- 1D:
- Code 39
- Full ASCII Code39
- Interleave 2 of 5
- Standard 2 of 5
- UPC A/E
- Delta Code
- Label Code
- MSI/ Plessy
- Codabar
- Code 11
- EAN8/13
- Code 93
- Code 128
- EAN128
- Code32
- Toshiba Code
- GS1 databarcode
- 2D:
- PDF417
- MicroPDF417
- Datamatrix
- QR Code
- Micro QR Code
- Aztec
- RSS
- Composite
- TLC -39 MaxiCode
- Postal:
- US PostNet
- US Planet
- UK Postal
- Australian Postal
- Japan Postal
- Dutch Postal (KIX)
- 1D:
- Code 39
- Full ASCII Code39
- Interleave 2 of 5
- Standard 2 of 5
- UPC A/E
- Delta Code
- Label Code
- MSI/ Plessy
- Codabar
- Code 11
- EAN8/13
- Code 93
- Code 128
- EAN128
- Code32
- Toshiba Code
- GS1 databarcode
- 2D:
- PDF417
- MicroPDF417
- Datamatrix
- QR Code
- Micro QR Code
- Aztec
- RSS
- Composite
- TLC -39 MaxiCode
- Postal:
- US PostNet
- US Planet
- UK Postal
- Australian Postal
- Japan Postal
- Dutch Postal (KIX)
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Unitech
- Manufacturer: Unitech Electronics Co., Ltd
- Product Model: MS842
- Product Name: High Value, Low Cost 2D Imager
Physical Characteristics
- Height: 6.9"
- Width: 2.9"
- Depth: 3.5"
- Weight (Approximate): 7 oz
Other
- Certifications & Standards:
- CE
- FCC
- BSMI
- VCCI
Network & Communication
- Radio Frequency: Yes
Warranty
- Limited Warranty: 3 Year
Power Description
- Input Voltage: 5 V DC
Full specifications (PDF)| Brand | Unitech |
| Model | MS842P |
| Scanner Type | Imager |
| Included Cables | USB |
| Connectivity | Cordless, Corded |
| Connection | USB |
| Scan Pattern | Area |
| Color | Light Gray |
| Form Factor | Handheld |
| Scanner Capability | 2D |
| Ruggedness | Rugged |
| support plan options |
 |
 |
||
|---|---|---|---|---|
| no support |
oem contract |
true support pro |
true support enterprise |
|
| Live Tech Support ( 7:30am - 5pm CST ) |
$189 / hr. | $189 / hr. | ✓ | ✓ |
| Software /Firmware Updates | ✓ | ✓ | ✓ | |
| Comprehensive Repair ( wear & tear ) | ✓ | ✓ | ✓ | |
| High Priority Repair | ✓ | ✓ | ||
| Device Troubleshooting ( via phone ) | ✓ | ✓ | ||
| Device Setup | ✓ | ✓ | ||
| Manufacturer RMA portal | ✓ | ✓ | ||
| Mobile Device Management | ✓ | |||
| $120.20 | $165.20 |
The Unitech MS842-2UPBGC-SG is also known as UNI-MS8422UPBGCSG or MS8422UPBGCSG .
