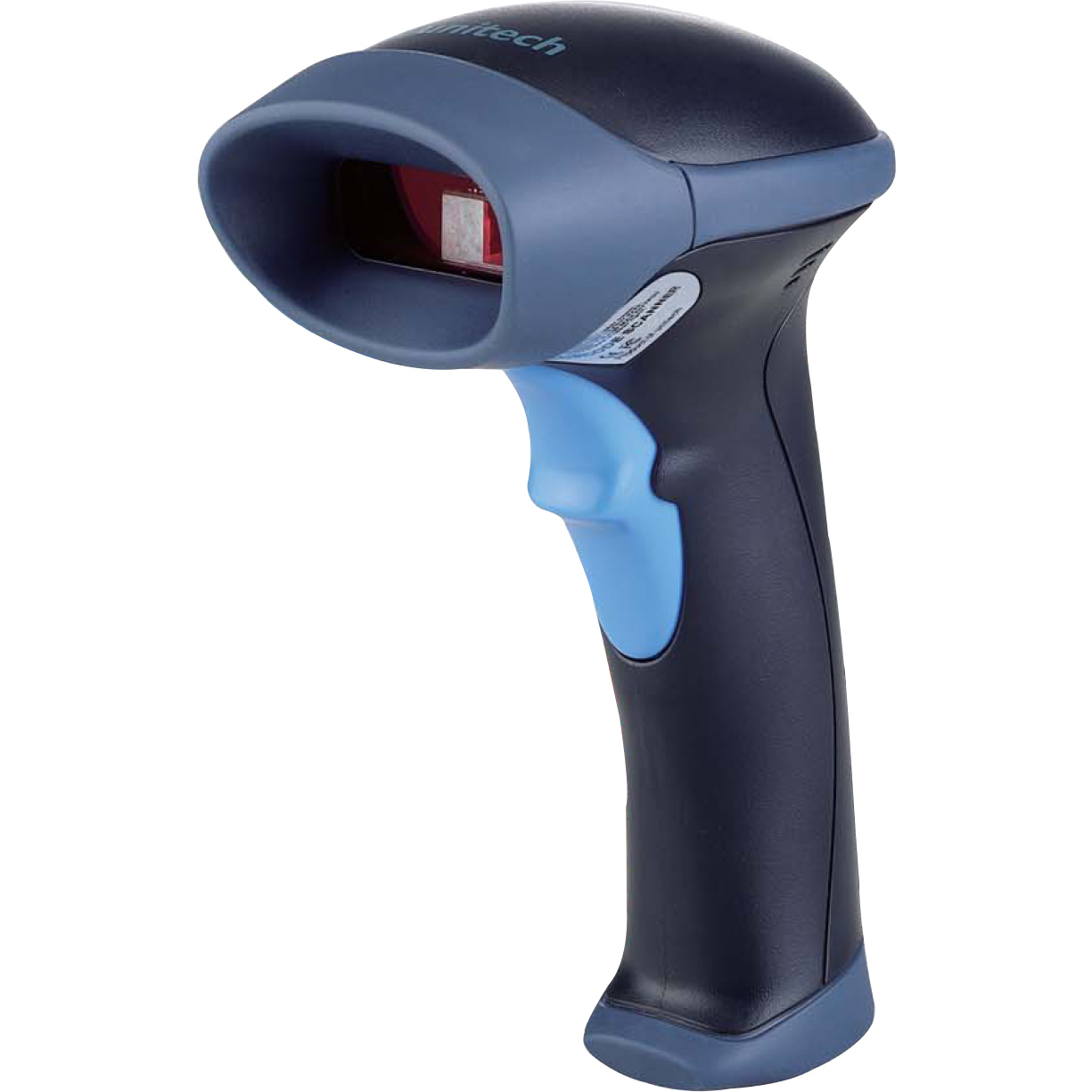

Unitech MS840-SUPBGC-SG Barcode Scanner

The Unitech MS840-SUPBGC-SG Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Unitech MS840 - Unitech Rugged Handheld Laser Scanner - Wireless Connectivity - 100 scan/s - Laser - , Radio Frequency

At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
Increase productivity and performance by excluding the cable
With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Scan barcodes with a staggering speed of 100 scan/s

Need a different version? See all Unitech MS840 Barcode Scanners

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Unitech MS840 Barcode Scanner Model Overview

The Unitech MS840 rugged handheld laser scanner is a cost-effective and versatile device for a variety of applications such as retail, industrial and commercial services. The MS840 can be configured via USB, keyboard wedge and RS232 and offers replaceable cables ensuring ease of integration. With its powerful scan engine, the MS840 provides impressive speedy and accurate scanning performance in both reading and decoding data. To minimize down time, the MS840 is designed to meet 1.8-meter drop test at its IP42-rated housing. A rugged, yet ergonomic and lightweight, deign make this device very user-friendly. For applications in noisy environments, the MS840 features a clear beeper and green light ensuring operators never miss a read. With its minimal overall investment and ultimate flexibility and reliability, the MS840 offers an unbeatable bargain.

Unitech MS840-SUPBGC-SG Barcode Scanner Overview

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Barcode Symbology Supported:

Code 39
Full ASCII Code39
Interleave 2 of 5
Standard 2 of 5
UPC A/E
Delta Code
Label Code
MSI/ Plessy
Codabar
Code 11
EAN8/13
Code 93
Code 128
EAN128
Code32
Toshiba Code
GS1 databar Code

Light Source:

Laser

Scan Rate:

100 scan/s

Maximum Scan Resolution:

5 mil

Depth of Field:

2.5cm - 13.9cm@4mil - Code 39
3.18cm - 20.32cm@5mil - Code 39
3.81cm - [email protected] - Code 39
3.81cm - 45.72cm@10mil - Code 39
3.81cm - 60.96cm@13mil - Code 39
3.81cm - 71.12cm@15mil - Code 39
4.45cm - 83.82cm@20mil - Code 39
91.44cm@40mil - Code 39
114.3cm@55mil - Code 39

Network & Communication

Radio Frequency:

Yes

Power Description

Input Voltage:

3 V DC
5 V DC

Physical Characteristics

Height:

6.9"

Width:

2.9"

Length:

3.5"

Weight (Approximate):

5.60 oz

Miscellaneous

Additional Information:

USB Cable separate

Platform Supported:

Certifications & Standards:

CE
BSMI
VCCI
C-Tick
ISO 9001:2000

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0017490130247, 0818239215474, 0851295001681

UPC: 017490130247, 818239215474, 851295001681

EAN: 0017490130247, 0818239215474, 0851295001681

UNSPSC: 43211701
