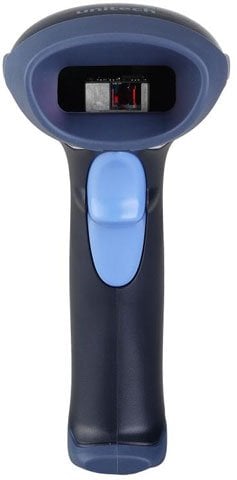

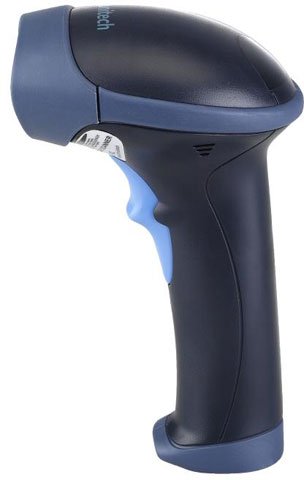

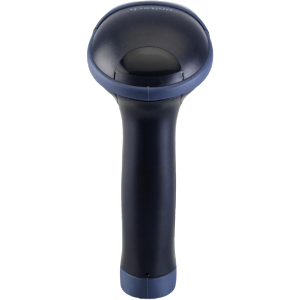

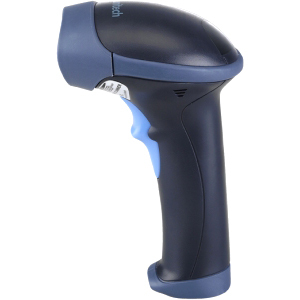

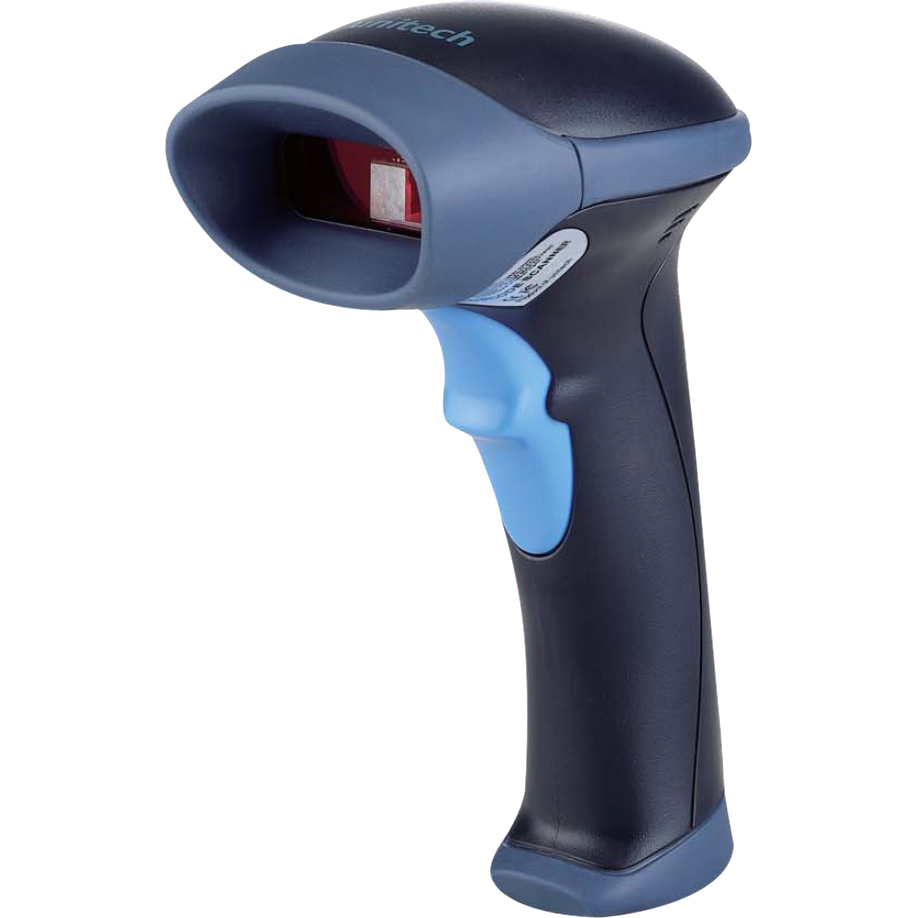

Unitech MS840-SUBBGC-SG Barcode Scanner
The Unitech MS840 rugged handheld laser scanner is a cost-effective and versatile device for a variety of applications such as retail, industrial and commercial services. The MS840 can be configured via USB, Keyboard wedge and RS-232 and offers replaceable cables ensuring ease of integration. With its powerful scan engine, the MS840 provides impressive speedy and accurate scanning performance in both reading and decoding data. To minimize down time, the MS840 is designed to meet 1.8-meter drop test at its IP42-rated housing. A rugged, yet ergonomic and lightweight, deign make this device very user-friendly. For applications in noisy environments, the MS840 features a clear beeper and green light ensuring operators never miss a read. With its minimal overall investment and ultimate flexibility and reliability, the MS840 offers an unbeatable bargain.
Technical Information
- Barcode Dimension: 1D
- Scan Pattern: Single Line
- Scan Rate: 100 scan/s
- Connectivity Technology: Wireless
- Scanning Distance: 21.70"
- Light Source: Laser
- Barcode Symbology Supported:
- Code 39
- Full ASCII Code39
- Interleave 2 of 5
- Standard 2 of 5
- China Postal
- UPC
- Delta Code
- MSI
- Plessy
- Codabar
- Code 11
- EAN8/13
- Code 93
- Code 128
- EAN128
- Code32
- Italian Pharmacy
- Label Code
- GS1 databarcode
- Code 39
- Full ASCII Code39
- Interleave 2 of 5
- Standard 2 of 5
- China Postal
- UPC
- Delta Code
- MSI
- Plessy
- Codabar
- Code 11
- EAN8/13
- Code 93
- Code 128
- EAN128
- Code32
- Italian Pharmacy
- Label Code
- GS1 databarcode
- Maximum Scan Resolution: 5 mil
- Depth of Field:
- 2.36" - 4.33"@5 mil - Code 39
- 1.97" - 5.12"@6 mil - Code 39
- 1.97" - 9.06"@10 mil - Code 39
- 1.97" - 14.96"@20 mil - Code 39
- 2.76" - 21.65"@40 mil - Code 39
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Unitech
- Manufacturer: Unitech Electronics Co., Ltd
- Product Model: MS840
- Product Name: MS840 Rugged Handheld Laser Scanner
Physical Characteristics
- Height: 6.9"
- Width: 2.9"
- Depth: 3.5"
- Weight (Approximate): 7.30 oz
Other
- Platform Supported:
- Mac
- PC
Battery Information
- Number of Batteries Supported: 1
- Battery Chemistry: Lithium Ion (Li-Ion)
Warranty
- Limited Warranty: 3 Year
Network & Communication
- Bluetooth: Yes
Full specifications (PDF)| Brand | Unitech |
| Model | MS840 |
| Included Cables | USB |
| Connection | USB |
| Connectivity | Corded |
| Scanner Type | Laser |
| Scanner Capability | 1D |
| Color | Light Gray |
| Scan Pattern | Single Line |
| Form Factor | Handheld |
| Ruggedness | Rugged |
|
