Unitech MS838B – Barcode Scanner
Full specifications (PDF)
Unitech MS838B Barcode Scanner Model Overview
The MS838B 2.4G Wireless 2D Imager Scanner is the perfect solution for those who demand mobility and performance in a barcode scanning tool. With a robust wireless connection covering up to 100 meters and an impressive battery life of up to 16 hours, this scanner ensures uninterrupted operation in various environments, from retail checkouts to inventory management. Its ability to store up to 40,000 codes out of range allows for ultimate flexibility and efficiency. Designed for durability with an IP54 rating against dust and water, the MS838B combines reliable performance with a compact design, making it an indispensable tool for mobile workers.
Key Features
- 2.4G Wireless Transmission: Coverage up to 100m in open sight.
- Reads All Major Barcodes: Supports both 1D and 2D barcodes, including digital displays.
- Long Battery Life: Operates for up to 16 hours on a single charge.
- Plug and Play: Easy to set up with instant functionality.
- Durable Design: IP54 rating and withstands drops from 1.5m.
- Buffer Mode: Capable of storing data when out of range.
- Instant Decoding Feedback: Equipped with LED and buzzer indicators.
Specifications
- Optical & Performance:
- Sensor: CMOS Sensor, 640 x 480 pixels
- Scan Rate: 60 fps
- Depth of Field: 4mil (Code 39) 3.5cm–18cm, 7mil (QR) 5cm–9cm
- Communication:
- Radio: 2.4G Wireless
- Host Interface: USB, Bluetooth
- Mechanical:
- Dimensions: 170mm x 73mm x 102mm
- Weight: 200g
- Electrical:
- Operating Voltage: DC 5V
- Battery: Lithium-ion, 2600mAh
- Operating Time: Over 16 hours
- Charging Time: Fully charged in 6 hours
- Environmental:
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -20°C to 60°C
- Humidity: 5% to 95% non-condensing
- IP Rating: IP54
Recommended Accessories
Category
- Mounting Hardware and Stands (1)
Recommended Accessories for Model: Unitech MS838-2UBB0D-SG Barcode Scanner
Top Mounting Hardware and Stands Purchased With Unitech MS838-2UBB0D-SG
-
$9.39
Frequently Asked Questions
What barcode types can the Unitech MS838B scanner read?
The MS838B reads both 1D and 2D barcodes, including Code39, Code128, UPC-A, UPC-E, EAN, GS1 DataBar, PDF417, QR Code, Data Matrix, and Aztec Code. It can decode barcodes as small as 4mil for Code 39 and 7mil for QR codes, making it effective for reading damaged or poorly printed barcodes.
What wireless connectivity options does the MS838B offer?
We offer the MS838B with multiple connectivity options: 2.4G wireless with up to 100 meters line-of-sight range, Bluetooth (HID, BLE, and SPP profiles), and USB wired connection. This flexibility allows you to choose the connection method that best fits your warehouse or retail environment.
Is the Unitech MS838B durable enough for warehouse environments?
Yes, the MS838B is built for tough industrial use with an IP54 rating and a 1.5 meter drop specification onto concrete. It also features ESD protection rated at 4KV Contact and 8KV Air electro-static discharge, making it reliable for demanding warehouse and logistics operations.
How long does the MS838B battery last on a single charge?
The MS838B is equipped with a 2600mAh Lithium-ion 18650 battery that provides over 16 hours of operation on a full charge. The battery fully charges in 6 hours using the included USB charging cable.
What's included in the MS838B package?

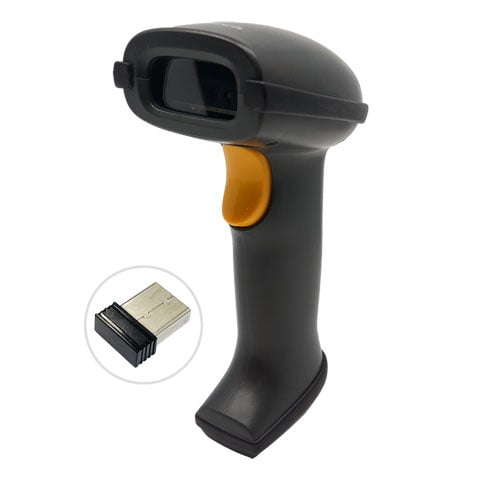

The package includes the MS838B scanner, a 2.4G wireless dongle, and a USB charging cable. This gives you everything needed to start scanning immediately with wireless or wired connectivity options.
What are the operating temperature and humidity ranges for the MS838B?
The MS838B operates reliably in temperatures from -10°C to 50°C and can be stored in temperatures ranging from -20°C to 60°C. It maintains performance in relative humidity levels of 5% to 95% non-condensing, making it suitable for various warehouse and logistics environments.
