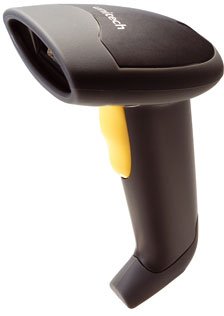

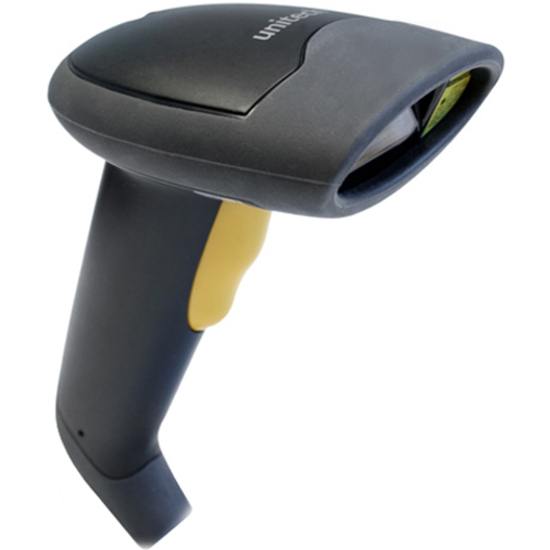

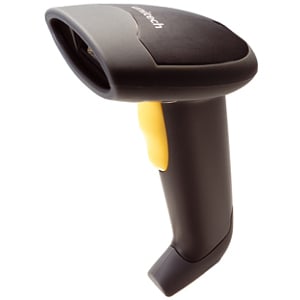

Unitech MS337-6UCB00-1G Barcode Scanner

Unitech MS842-2UCB00-SG Barcode Scanner A newer version of this item is available.
It is replaced by the Unitech MS842-2UCB00-SG Barcode Scanner.
Unitech MS337 - Unitech MS337 Handheld Bar Code Reader - Wired - CMOS
  • Perfect for applications that require direct association with a workstation or a notebook
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • LED aimer is a perfect choice for patient-facing applications
Read More

Need a different version? See all Unitech MS337 Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Unitech MS337-6UCB00-1G Barcode Scanner
Unitech MS337-6UCB00-1G Barcode Scanner Unitech MS337-6UCB00-1G Barcode Scanner Unitech MS337-6UCB00-1G Barcode Scanner Unitech MS337-6UCB00-1G Barcode Scanner
Unitech MS337-6UCB00-1G Barcode Scanner
Unitech MS337-6UCB00-1G Barcode Scanner
Unitech MS337-6UCB00-1G Barcode Scanner
Unitech MS337-6UCB00-1G Barcode Scanner
Full specifications (PDF)
Unitech MS337 Barcode Scanner Model Overview
Unitech's innovative MS337 2D rugged image scanner provides for greater business efficiency, reading accuracy and productivity with its fast 2D scanning engine and highly aggressive performance. Its LED flash has virtually no repeated scanning making it highly efficient and competitive in its class by reducing costs and maximizing uptime and limiting downtime. The MS337 has an industrial-standard miniature form factor and rugged design that provide for a compatible and durable technology.
Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D Symbologies:
  • UPC/EAN
  • Discrete 2 of 5
  • Code 128
  • Code 39
  • Code 93
  • Codabar
  • UCC.EAN128
  • I2 of 5
  • ISBT 128
  • MSI
  • GS1 DataBar
  • 2D Symbologies:
  • DataMatrix
  • Maxicode
  • PDF417
  • QR Code
  • RSS (RSS14, RSS Expanded, and RSS Limited)
  • Postal Codes:
  • US Postnet
  • US Planet
  • UK Postal
  • Australian Postal
  • Japan Postal
Light Source:
LED
Image Sensor Type:
CMOS
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Height:
7.1"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
7 oz
Miscellaneous
Package Contents:
  • MS337 Handheld Bar Code Reader:
  • Cable
  • Manual
Additional Information:
  • Focal Point: 3.94" from the scanner face
  • View Angles: 50º (horizontal) 37.5º (vertical)

USB Cable separate

Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Unitech MS337-6UCB00-1G Barcode Scanner is also known as UNI-MS337-6UCB00-1G or MS3376UCB001G.
