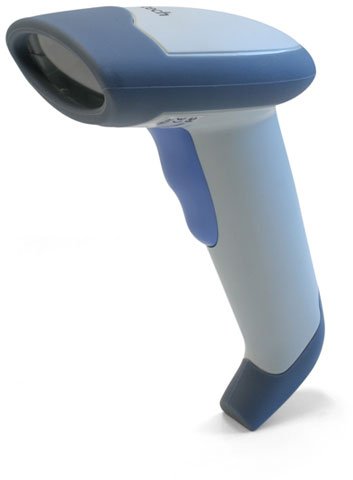

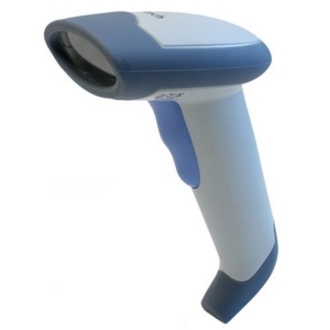

Unitech MS335 – Barcode Scanner – 1D

Part Number: MS335-XRG
Model: MS335
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Linear Imager, RS232, Black - (Power Adapter Sold Separately)
Explore all Unitech MS335 Barcode Scanners
Add to Quote
Unitech MS335-XRG Barcode Scanner
Unitech MS335-XRG Barcode Scanner
Unitech MS335-XRG Barcode Scanner
Unitech MS335-XRG Barcode Scanner
Unitech MS335-XRG Barcode Scanner Unitech MS335-XRG Barcode Scanner Unitech MS335-XRG Barcode Scanner Unitech MS335-XRG Barcode Scanner
Full specifications (PDF)

Unitech MS335 Barcode Scanner Model Overview

The MS335 is a high performance CCD scanner that delivers reliability and durability at an affordable price. Designed to meet the needs of a number of business applications, including: retail, office automation, healthcare, postal distribution, and light industrial, the MS335 provides the features needed to optimize productivity. Rugged design withstands 1.5m drops to concrete. Quick and easy set up via Windows-based software or barcodes. 5-year warranty for main unit; 90-day warranty for cables, and adaptors.
Unitech MS335-XRG Barcode Scanner Overview

The Unitech MS335 is a high performance CCD scanner that delivers reliability and durability at an affordable price. Designed to meet the needs of a number of business applications, including: retail, office automation, healthcare, postal distribution, and light industrial, the MS335 provides the features needed to optimize productivity.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC-A with Add-on Code
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Industrial 2 of 5
  • Codabar
  • Matrix 2 of 5
  • Code 11
  • Code 32
  • Code 128
  • Code 39 (Standard)
  • Code 39 Full ASCII
  • Interleaved 2 of 5
  • China Postal Code
  • MSI/PLESSEY
  • UK Plessey
  • MSI
  • Toshiba Code
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
230 scan/s
Maximum Scan Resolution:
15.60 mil
Depth of Field:
Cable Type Included:
Serial
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
7.1"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
5.47 oz
Miscellaneous
Package Contents:
  • MS335 Bar Code Reader
  • 9-pin RS232 Cable
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • USB

USB Cable separate

Platform Supported:
  • PC
  • Mac
Certifications & Standards:
  • CE
  • FCC
  • BSMI
  • VCCI
  • RoHS
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
