Unitech MS335-1UG Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review

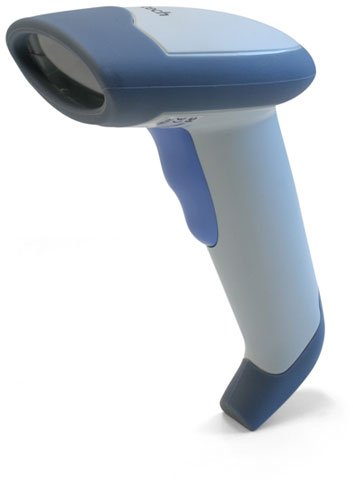

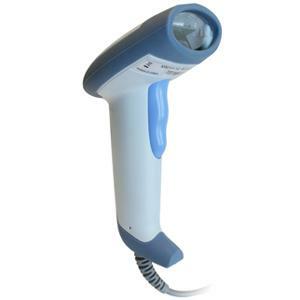

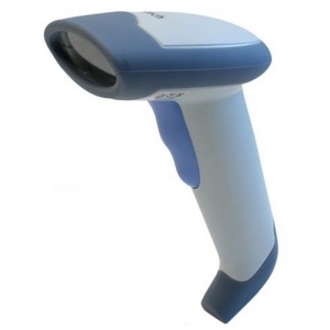

Unitech MS335 - Linear Imager, USB, Gray
Ultimate combination of performance and reliability for linear barcode scanning

The MS335 is a high performance CCD scanner that delivers reliability and durability at an affordable price. Designed to meet the needs of a number of business applications, including: retail, office automation, health care, postal distribution, and light industrial, the MS335 provides the features needed to optimize productivity. Rugged design withstands 1.5m drops to concrete. Quick and easy set up via Windows-based software or barcodes. 5-year warranty for main unit, 90-day warranty for cables, and adapters.

Technical Information

  • Scan Rate: 230 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: CCD
  • Barcode Symbology Supported:
    • UPC-A with Add-on Code
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • Industrial 2 of 5
    • Codabar
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 32
    • Code 128
    • Code 39 (Standard)
    • Code 39 Full ASCII
    • Interleaved 2 of 5
    • China Postal Code
    • MSI/PLESSEY
    • UK Plessey
    • Trioptic Code
    • MSI
    • UPC-A with Add-on Code
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • Industrial 2 of 5
    • Codabar
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 32
    • Code 128
    • Code 39 (Standard)
    • Code 39 Full ASCII
    • Interleaved 2 of 5
    • China Postal Code
    • MSI/PLESSEY
    • UK Plessey
    • Trioptic Code
    • MSI
  • Maximum Scan Resolution: 15.60 mil
  • Depth of Field:
    • 3.15" - 3.54"@4 mil
    • 2.76" - 4.72"@5 mil
    • 1.18" - 14.17"@15.60 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Unitech
  • Manufacturer: Unitech Electronics Co., Ltd
  • Product Model: MS335
  • Product Name: MS335 Barcode Reader

Physical Characteristics

  • Height: 7.1"
  • Width: 2.8"
  • Depth: 3.9"
  • Color: Gray
  • Weight (Approximate): 5.47 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MS 335 Barcode Reader
    • USB Cable
    • MS 335 Barcode Reader
    • USB Cable
  • Certifications & Standards:
    • CE
    • FCC
    • BSMI
    • VCCI
    • RoHS
  • Platform Supported:
    • PC
    • Mac
  • Additional Information:
    • Supported Interfaces:
    • Keyboard Wedge
    • Serial
    • USB

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC

Full specifications (PDF)

Full specifications (PDF)

Brand Unitech
Model MS335
Form Factor Handheld
Connectivity Corded
Scanner Type CCD
Color Gray
Included Cables USB
Ruggedness General Purpose
