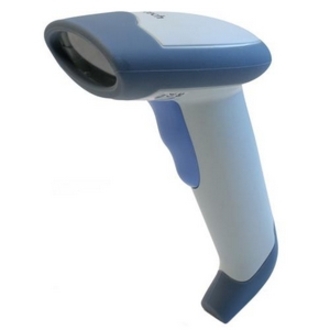

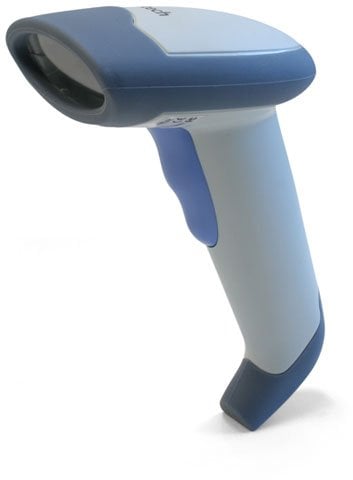

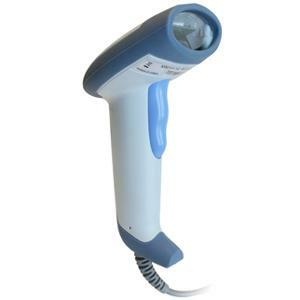

Unitech MS335-1G Barcode Scanner

Unitech MS320-1G Barcode Scanner A newer version of this item is available.
It is replaced by the Unitech MS320-1G Barcode Scanner.
Unitech MS335 - Linear Imager, Gray - (Interface Cable Sold Separately)
  • Perfect for applications that require direct association with a workstation or a notebook
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Scan barcodes with a staggering speed of 230 scan/s
Read More
Discontinued See Replacement
Add to Quote
Unitech MS335 Barcode Scanner Model Overview
The MS335 is a high performance CCD scanner that delivers reliability and durability at an affordable price. Designed to meet the needs of a number of business applications, including: retail, office automation, healthcare, postal distribution, and light industrial, the MS335 provides the features needed to optimize productivity. Rugged design withstands 1.5m drops to concrete. Quick and easy set up via Windows-based software or barcodes. 5-year warranty for main unit; 90-day warranty for cables, and adaptors.
Unitech MS335-1G Barcode Scanner Overview

The Unitech MS335 is a high performance CCD scanner that delivers reliability and durability at an affordable price. Designed to meet the needs of a number of business applications, including: retail, office automation, healthcare, postal distribution, and light industrial, the MS335 provides the features needed to optimize productivity. The MS335 long-range CCD offers the best of both worlds, the durability and value of CCD scanning technology together with the reading range of a laser-based scanner. With clear and adjustable audio good-read beepers and a visible good-read LED, users can be positive they captured each and every bar code. With an almost effortless setup and an aggressive scan rate of 230 scans per second, productivity is maximized from the start.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC-A with Add-on Code
  • UPC-A
  • UPC-E
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Codabar
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 32
  • Code 128
  • Code 39 (Standard)
  • Code 39 Full ASCII
  • Interleaved 2 of 5
  • China Postal Code
  • MSI/PLESSEY
  • UK Plessey
  • Toshiba Code
  • MSI
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
230 scan/s
Maximum Scan Resolution:
15.60 mil
Depth of Field:
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Gray
Height:
7.1"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
5.47 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Serial
  • USB
  • Platform Supported:
    • PC
    • Mac
    Certifications & Standards:
    • CE
    • FCC
    • BSMI
    • VCCI
    • RoHS
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    GTIN: 0766150033366
    UPC: 766150033366
    EAN: 0766150033366
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Unitech MS335-1G Barcode Scanner is also known as UNI-MS335-1G or MS3351G.
