Unitech MS320-1RG Barcode Scanners


0.0

(No reviews)

Be the first to

Write a Review

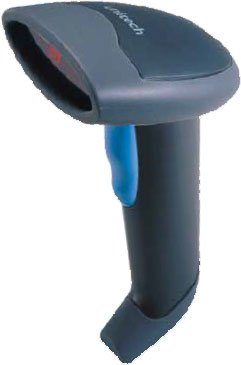

Unitech MS320 - Linear Imager, RS-232, Black - (Power Adapter Sold Separately)

The MS320 is a scanner that matches a laser scanner in performance by incorporating aggressive long range CCD scanning technology. Besides supporting most common one dimensional barcodes the MS320 also supports a two dimensional barcode, PDF417. This barcode is selected for applications in areas such as the automotive industry for key applications as shipping, product evidence, quality conveyance, production broadcast, configuration management and material safety data sheets. Both contact and wide reading enables the worker to read labels up to 25 cm.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Linear
  • Scan Rate: 200 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: CCD
  • Barcode Symbology Supported:
    • 1D:
    • Code 39
    • Code 39 Full ASCII
    • Codabar
    • Pharmacy Code(Italian)
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleave 2 of 5
    • Matrix 2 of 5
    • Code 93
    • Code 128/UCC EAN 128
    • MSI
    • Plessey
    • UPC/EAN codes incl.add-ons
    • ISBN
    • Telepen
    • RSS code
    • 2D:
    • 2D barcodes PDF 417 (multi-row symbology)
    • 1D:
    • Code 39
    • Code 39 Full ASCII
    • Codabar
    • Pharmacy Code(Italian)
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleave 2 of 5
    • Matrix 2 of 5
    • Code 93
    • Code 128/UCC EAN 128
    • MSI
    • Plessey
    • UPC/EAN codes incl.add-ons
    • ISBN
    • Telepen
    • RSS code
    • 2D:
    • 2D barcodes PDF 417 (multi-row symbology)
  • Maximum Scan Resolution: 4 mil
  • Depth of Field: 0 mil - 9.84"@20 mil - Code 39, PCS=90%

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Unitech
  • Manufacturer: Unitech Electronics Co., Ltd
  • Product Model: MS320
  • Product Name: MS320 Handheld Barcode Reader

Physical Characteristics

  • Height: 7.4"
  • Width: 4"
  • Depth: 3.1"
  • Weight (Approximate): 6.60 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Platform Supported: PC

Full specifications (PDF)

Full specifications (PDF)

Brand Unitech
Model MS320
Scanner Type Imager
Scanner Capability 1D
