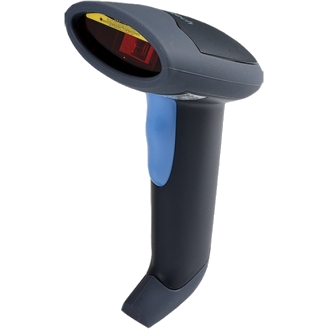

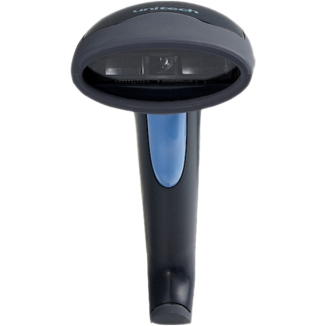

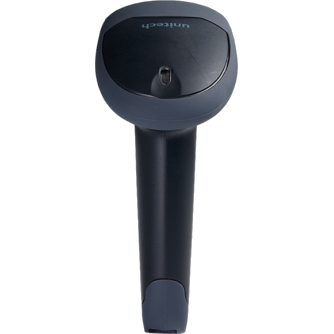

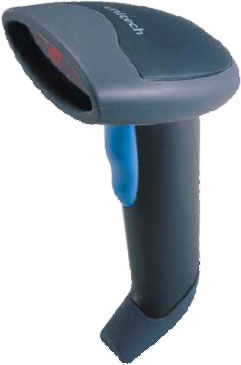

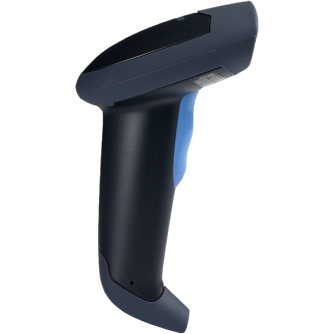

Unitech MS320 – Barcode Scanner

Part Number: MS320-1G
Model: MS320

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Type
CCD, Imager

Product Description:

  Unitech Long Range Linear Scanner - Cable Connectivity - 300 scan/s - CCD - Black

Unitech MS320 Barcode Scanner Model Overview

The MS320 is a scanner that matches a laser scanner in performance by incorporating aggressive long range CCD scanning technology. Besides supporting most common one dimensional barcodes the MS320 also supports a two dimensional barcode, PDF417. This barcode is selected for applications in areas such as the automotive industry for key applications as shipping, product evidence, quality conveyance, production broadcast, configuration management and material safety data sheets. Both contact and wide reading enables the worker to read labels up to 25 cm.
Unitech MS320-1G Barcode Scanner Overview
The MS320 is a scanner that matches a laser scanner in performance by incorporating aggressive long range CCD scanning technology. It also gives the user excellent comfort thanks to its ergonomic and light weighted design yet robust finish. It is built to withstand 1.5m multiple free drops to a concrete floor.
Technical Information
Connectivity Technology:
Cable
Image Sensor Type:
CCD
Scan Rate:
300 scan/s
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 0mm - 250mm@20mil - Code 39
  • PCS=90%
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
7.4"
Width:
4"
Depth:
3.1"
Weight (Approximate):
6.60 oz
Miscellaneous
Additional Information:

USB Cable separate

Platform Supported:
PC
Certifications & Standards:
  • UL
  • FCC CLASS A
  • CE CLASS A
  • BSMI
Item Numbers
GTIN: 0731303614266, 4923773181331
UPC: 731303614266
EAN: 0731303614266, 4923773181331
UNSPSC: 43211701
