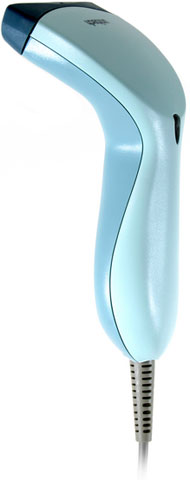

Unitech MS180-L Barcode Scanner

Unitech AS10-P Barcode Scanner A newer version of this item is available.
It is replaced by the Unitech AS10-P Barcode Scanner.
Unitech MS180 - PS/2 Kit. CCD Contact Scanner, 3" Scan Width. Includes PS/2 Laptop-direct Cable. Color: Blue
  • Minimizes your manual entry and provides reliable scanning in a durable form factor
  • Perfect for applications that require direct association with a workstation or a notebook
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Scan barcodes with a staggering speed of 45 scan/s
Read More
Discontinued See Replacement
Add to Quote
Unitech MS180 Barcode Scanner Model Overview
The Unitech MS180 features a flexible, multiple interface design that supports keyboard wedge, RS232, USB, wand emulation and sixteen popular terminals with an interchangeable cable. In addition, the IBM PC XT/AT keyboard wedge interface supports 8 different character sets. MS180's powerful built-in decoder reads and discriminates all major symbologies, thereby reducing processing time while increasing accuracy. The decoder also allows editing and modifying scanned data before sending it to the host device and hence reduces the labour costs.
Unitech MS180-L Barcode Scanner Overview

The MS180-1 Bar Code Reader has a powerful built-in decoder which reads and discriminates all major symbologies, reducing processing time and labor costs, while increasing accuracy. The decoder also allows editing and modifying scanned data before sending it to the host device. Barcode menus provide extensive configuration options. The settings can then be cloned to other readers through the use of custom bar code labels.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • China Postal Code
  • Codabar
  • Code 11
  • Code 32
  • Code 39 (full ASCII)
  • Code 39 (Standard)
  • Code 93
  • Code 128
  • Delta Code
  • EAN-8 with add-on code
  • EAN-13 with add-on code
  • EAN 128
  • Interleaved 2 of 5
  • ISBN / Bookland EAN
  • ISBT 128
  • Italian Pharmacy
  • Label Code IV
  • Label Code V
  • MSI / Plessey
  • Standard 2 of 5
  • Toshiba Code
  • UPC-A with add-on code
  • UPC-E with add-on code
Light Source:
LED
Scan Rate:
45 scan/s
Maximum Scan Resolution:
4 mil
Scanning Distance:
4.70"
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
3.2"
Width:
3.5"
Depth:
7.4"
Weight (Approximate):
4.40 oz
Miscellaneous
Package Contents:
  • MS180-1 Bar Code Reader
  • Straight PS/2 Laptop Cable (1550-201434)
Additional Information:
  • Depth of field: 1"
  • Superior contact scanning
  • Reads most commonly used bar code symbologies
  • Hands-free operation for retail applications
  • Easy to use and configure
  • Reads damaged labels
  • Advanced Data Editing features
  • Solid-state technology
  • Low power consumption
  • Mechanical shock: Withstands multiple 6 ft. (1.8 m) drops to concrete floor

USB Cable separate

Platform Supported:
  • PC
  • Mac
Certifications & Standards:
  • CE
  • FCC Class A
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
