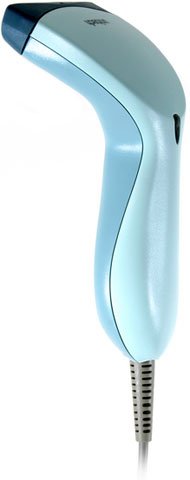

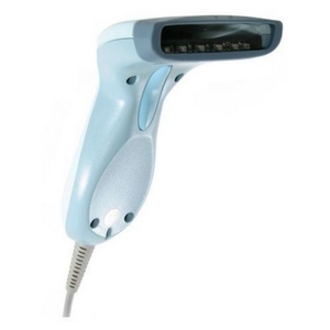

Unitech MS180 – Barcode Scanner – Corded – 1D

Part Number: MS180-1UG
Model: MS180
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
USB
Scanner Capability
1D

Product Description:

  Unitech MS180 Bar Code Reader - Wired - CCD

Unitech MS180 Barcode Scanner Model Overview

The Unitech MS180 features a flexible, multiple interface design that supports keyboard wedge, RS232, USB, wand emulation and sixteen popular terminals with an interchangeable cable. In addition, the IBM PC XT/AT keyboard wedge interface supports 8 different character sets. MS180's powerful built-in decoder reads and discriminates all major symbologies, thereby reducing processing time while increasing accuracy. The decoder also allows editing and modifying scanned data before sending it to the host device and hence reduces the labour costs.
Unitech MS180-1UG Barcode Scanner Overview

The MS180 Bar Code Reader's flexible, multiple interface design supports keyboard wedge, RS232, USB, wand emulation and sixteen popular terminals by simply replacing the cable. This feature also prevents downtime caused by damaged cables. In addition, the IBM PC XT/AT keyboard wedge interface supports 8 different character sets. The powerful built-in decoder reads and discriminates all major symbologies, reducing processing time and labor costs, while increasing accuracy.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • China Postal Code
  • Codabar
  • Code 11
  • Code 32
  • Code 39 Full ASCII
  • Code 39 (Standard)
  • Code 93
  • Code 128
  • EAN-8 with Add-on Code
  • EAN-13 with Add-on Code
  • EAN-128
  • Interleaved 2 of 5
  • ISBN / Bookland EAN
  • ISBT 128
  • Italian Pharmacy
  • Label Code IV
  • Label Code V
  • MSI/PLESSEY
  • Standard 2 of 5
  • Toshiba Code
  • UPC-A with Add-on Code
  • UPC-E with Add-on Code
  • Delta Code
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
45 scan/s
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 1"
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
2"
Width:
3.5"
Depth:
7.5"
Weight (Approximate):
4.40 oz
Miscellaneous
Package Contents:
  • MS180 Bar Code Reader
  • USB Interface Cable
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Serial
  • USB
  • Platform Supported:
    PC
    Certifications & Standards:
    • CE
    • BSMI
    • FCC Class A
    • RoHS Compliant
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Warranty
    Limited Warranty:
    1 Year
    Item Numbers
    GTIN: 0032169102042, 0778889870921
    UPC: 032169102042, 778889870921
    EAN: 0032169102042, 0778889870921
    UNSPSC: 43211701
