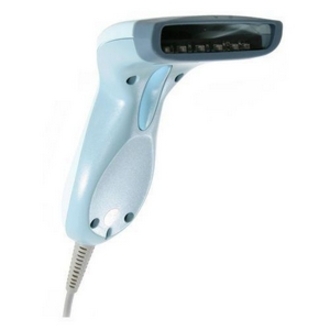

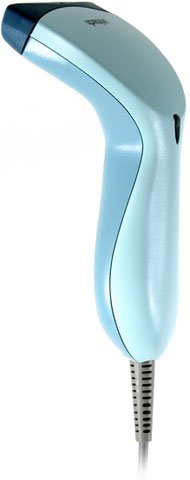

Unitech MS180-1K Barcode Scanner

Unitech AS10-P Barcode Scanner A newer version of this item is available.
It is replaced by the Unitech AS10-P Barcode Scanner.
Unitech MS180 - PS/2 Kit. CCD Contact Scanner, 3" Scan Width. Includes AT and PS/2 Cable. Color: Blue
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • LED aimer is a perfect choice for patient-facing applications
  • Scan barcodes with a staggering speed of 45 scan/s
Read More

Need a different version? See all Unitech MS180 Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Unitech MS180-1K Barcode Scanner
Unitech MS180-1K Barcode Scanner Unitech MS180-1K Barcode Scanner Unitech MS180-1K Barcode Scanner Unitech MS180-1K Barcode Scanner
Unitech MS180-1K Barcode Scanner
Unitech MS180-1K Barcode Scanner
Unitech MS180-1K Barcode Scanner

Full specifications (PDF)
Unitech MS180 Barcode Scanner Model Overview
The Unitech MS180 features a flexible, multiple interface design that supports keyboard wedge, RS232, USB, wand emulation and sixteen popular terminals with an interchangeable cable. In addition, the IBM PC XT/AT keyboard wedge interface supports 8 different character sets. MS180's powerful built-in decoder reads and discriminates all major symbologies, thereby reducing processing time while increasing accuracy. The decoder also allows editing and modifying scanned data before sending it to the host device and hence reduces the labour costs.
Unitech MS180-1K Barcode Scanner Overview

The MS180 Bar Code Reader's flexible, multiple interface design supports keyboard wedge, RS232, USB, wand emulation and sixteen popular terminals by simply replacing the cable. This feature also prevents downtime caused by damaged cables. In addition, the IBM PC XT/AT keyboard wedge interface supports 8 different character sets. The powerful built-in decoder reads and discriminates all major symbologies, reducing processing time and labor costs, while increasing accuracy.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • China Postal Code
  • Codabar
  • Code 11
  • Code 32
  • Code 39 Full ASCII
  • Code 39 (Standard)
  • Code 93
  • Code 128
  • EAN-8 with Add-on Code
  • EAN-13 with Add-on Code
  • EAN-128
  • Interleaved 2 of 5
  • ISBN / Bookland EAN
  • ISBT 128
  • Italian Pharmacy
  • Label Code IV
  • Label Code V
  • MSI/PLESSEY
  • Standard 2 of 5
  • Toshiba Code
  • UPC-A with Add-on Code
  • UPC-E with Add-on Code
  • Delta Code
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
45 scan/s
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 1"
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
3.2"
Width:
3.5"
Depth:
7.4"
Weight (Approximate):
4.40 oz
Miscellaneous
Package Contents:
  • MS180 Bar Code Reader
  • Universal AT & PS/2 interface cable (1550-210435)
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Serial
  • USB

    • Platform Supported:
    PC
    Certifications & Standards:
    • CE
    • FCC Class A
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    UNSPSC: 43211701
