Unitech MS146I-4UMG Barcode Card Reader

Unitech MS146-IUCB0M-SG Credit Card Reader A newer version of this item is available.
It is replaced by the Unitech MS146-IUCB0M-SG Credit Card Reader.
Unitech MS146 - Unitech MS146 Swipe Barcode Scanner - Cable Connectivity - Black - Cable Connectivity - 1D - Infrared - Black
  • Fit for reading any barcode ID cards, guaranteeing precise reading of both; visible and laminated cards
  • Perfect for applications that require direct association with a workstation or a notebook
  • Features Infrared light source scanning
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

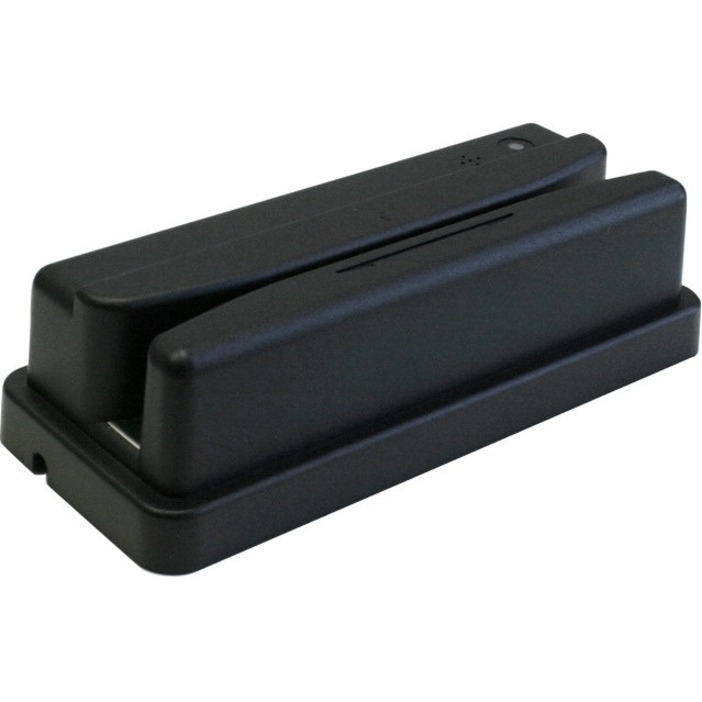

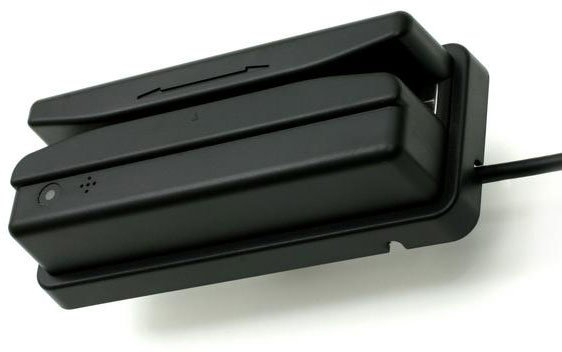

Unitech MS146 Barcode Card Reader Model Overview
The Unitech MS146 barcode slot reader is a flexible, cost effective solution when reliability is essential. With a resolution of up to 6 mils (0.15 mm), the MS146 is capable of reading any barcoded identification badge. The MS146's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. The convenient USB interface, water resistant base, rugged housing, and IP54 rated sealing make the MS146 a popular choice in any environment.
Unitech MS146I-4UMG Barcode Card Reader Overview

The MS146 barcode card reader is designed for time and attendance, security, and access control applications that use badges, cards, or forms.

Target Markets / Applications

The MS146 reader is versatile enough to fit applications across the board. It can read ID cards for check-in, check-out, and access control. The infrared MS146 reads barcodes that have been secured by black panels to prevent photocopying.

Libraries
  • Library Cards
  • Check-in/Check-out
Fitness Centers
  • Access Control
  • Time / Attendance
Features

Maximum Versatility

The MS146 barcode card reader is easy to integrate into your business. With a large reading slot, the MS146 is a suitable solution for cards of many different sizes and widths.

Multiple interface options and an infrared model ensures that there's an MS146 perfectly suited for your business. Mount the MS146 to a wall or desktop for easy access. The reader is multidirectional, making installation that much easier.

Durable

With the MS146 you can rest assured knowing you've made a lasting investment. The high-quality sealing on the optical system protects the device from dust, dirt, and even water spills.

The MS146 is at home in industrial settings, enduring repeated use and exposure to hazards without wearing out or degrading in any way.

Powerful Performance

The MS146 reads 2-27 inches per second at a high resolution and with a flexible reading angle. Advanced data editing is available on this device, enabling you to tailor your solution to your exact needs.

Summary

Multidirectional reading
Desktop or wall mountable
Multiple interface options
Withstands repeated 5-foot falls to concrete
Environmentally sealed against water and dust
Advanced data editing
IP54 environmental seal against moisture and dust
Warranty: 2 years

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • Code 39 standard and full ASCII
  • EAN-13
  • UPC-A
  • EAN-8
  • UPC-E
  • Standard 2 of 5
  • Code 128
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Delta Code
  • Label Code
  • Plessey Code
  • Codabar
Light Source:
Infrared
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Color:
Black
Height:
3.8"
Width:
1.4"
Depth:
1.9"
Weight (Approximate):
6.70 oz
Miscellaneous
Country of Origin:
Taiwan
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The Unitech MS146I-4UMG Barcode Card Reader is also known as UNI-MS146I-4UMG or MS146I4UMG.
