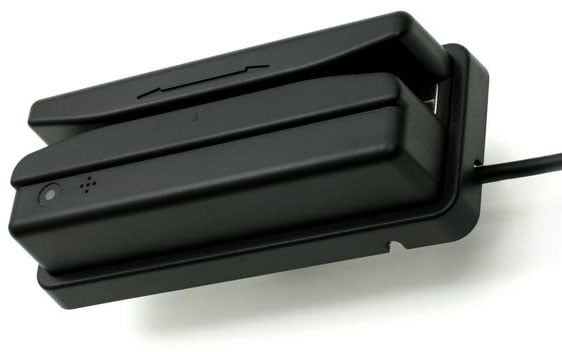

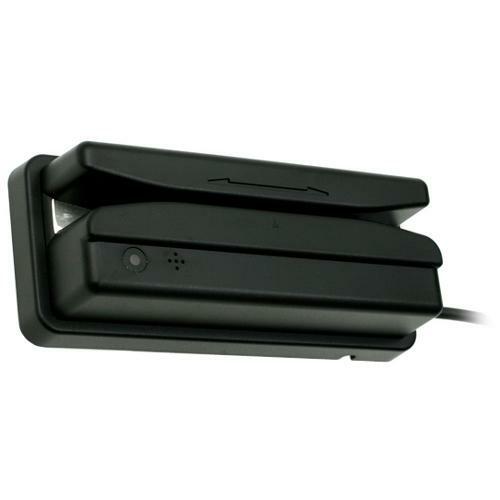

Unitech MS146I-3PS2G Barcode Card Reader

Part Number: MS146I-3PS2G
Model: MS146
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Barcode Symbology Supported
China Postal CodeCodabarCode 11Code 32Code 39 (Standard)Code 39 Full ASCIICode 93Code 128Delta CodeEAN-8 with Add-on CodeEAN-13 with Add-on CodeEAN-128Interleaved 2 of 5ISBN / Bookland EANISBT 128Italian PharmacyLabel Code IVLabel Code VMSI/PLESSEYStandard 2 of 5Toshiba CodeUPC-A with Add-on CodeUPC-E with Add-on Code
Light Source
LED
Maximum Scan Resolution
6 mil

Product Description:

  Unitech MS146 Bar Code Slot Reader - Wired - Photo Diode

Unitech MS146 Barcode Card Reader Model Overview

The MS146 Barcode Slot Reader by Unitech is a versatile solution designed for time control, security access, and attendance control applications. Engineered for durability, this device features a sealed optical system housed in an IP54-rated body, ensuring reliable performance even in harsh industrial settings. With a flexible reading angle and high-resolution capabilities, the MS146 is perfect for both desktop and side-mounted applications, making it ideal for locations with varying space requirements.


Key Features
  • Sealed optical system with IP54 rugged housing for durability
  • Wide barcode slot for flexible reading angles and higher resolution
  • Multi-directional installation options for convenience
  • User-configurable via PC programming
  • Compatible with all popular devices
  • Suitable for varying card dimensions and printing qualities
  • Available interfaces: TTL, keyboard wedge, RS232, and USB
  • Advanced data editing capabilities
  • Impressive scan rate: 50 mm to 700 mm/sec
  • Minimum resolution: 6 mil

Specifications
  • Optical Light Source: Infrared: 930 nm LED, Visible light: 660 nm LED
  • Sensor: Photo diode
  • Depth of field: 2 mm
  • Resolution: 6 mils (0.15 mm) minimum
  • Print Contrast: 0.6 minimum
  • Scan Speed: 700 mm/Sec
  • M.T.B.F: 25000 Hours
  • Dimensions: 128 mm (L) x 53 mm (W) x 33 mm (H)
  • Weight: 180 g
  • Power Consumption: 35 mA for TTL 5V DC, 70mA for Decoded version
  • Beep Sound Volume: >70dB
  • Operating Temperature: 0° to 50°C
  • Storage Temperature: -20° to 60°C
  • Humidity: 0% to 95% RH non-condensing
  • Mechanical Shock: 5 ft. (1.5 m) drop on concrete
  • Symbologies Supported: Code 39, EAN-13, UPC-A, and more
Unitech MS146I-3PS2G Barcode Card Reader Overview

The MS146 bar code slot readers is a flexible, cost effective solution when for a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS146 is capable of reading any bar coded identification badge. Its sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base, rugged housing, and IP54 rated sealing make the MS146 a popular choice in any environment. An optional mounting bracket is available to safely secure the unit in any direction. Decoded versions are easy to use and configure.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • China Postal Code
  • Codabar
  • Code 11
  • Code 32
  • Code 39 (Standard)
  • Code 39 Full ASCII
  • Code 93
  • Code 128
  • Delta Code
  • EAN-8 with Add-on Code
  • EAN-13 with Add-on Code
  • EAN-128
  • Interleaved 2 of 5
  • ISBN / Bookland EAN
  • ISBT 128
  • Italian Pharmacy
  • Label Code IV
  • Label Code V
  • MSI/PLESSEY
  • Standard 2 of 5
  • Toshiba Code
  • UPC-A with Add-on Code
  • UPC-E with Add-on Code
Light Source:
LED
Maximum Scan Resolution:
6 mil
Depth of Field:
  • 0mm - 2mm
Interfaces/Ports
Host Interface:
Keyboard Wedge
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
1.3"
Width:
2.1"
Depth:
5"
Weight (Approximate):
6.70 oz
Miscellaneous
Additional Information:
  • Environmental sealing: IP54
  • RoHS Compliance

USB Cable separate

Platform Supported:
  • PC
  • Mac
Certifications & Standards:
  • RoHS Compliance
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0012301570274, 0851295001353
UPC: 012301570274, 851295001353
EAN: 0012301570274, 0851295001353
UNSPSC: 43211701
