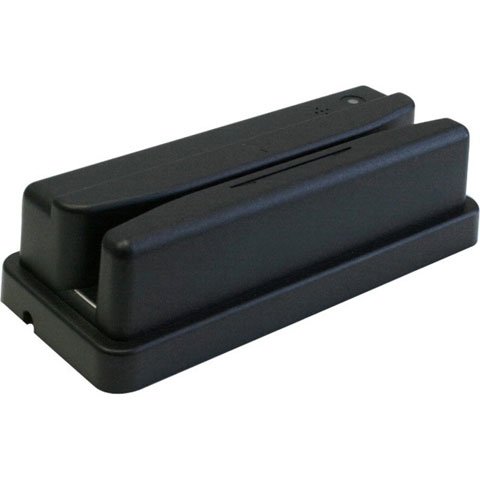

Unitech MS146-ITCB00-SG Credit Card Reader
Full specifications (PDF)
Unitech MS146 Barcode Card Reader Model Overview
The MS146 Barcode Slot Reader by Unitech is a versatile solution designed for time control, security access, and attendance control applications. Engineered for durability, this device features a sealed optical system housed in an IP54-rated body, ensuring reliable performance even in harsh industrial settings. With a flexible reading angle and high-resolution capabilities, the MS146 is perfect for both desktop and side-mounted applications, making it ideal for locations with varying space requirements.
Key Features
- Sealed optical system with IP54 rugged housing for durability
- Wide barcode slot for flexible reading angles and higher resolution
- Multi-directional installation options for convenience
- User-configurable via PC programming
- Compatible with all popular devices
- Suitable for varying card dimensions and printing qualities
- Available interfaces: TTL, keyboard wedge, RS232, and USB
- Advanced data editing capabilities
- Impressive scan rate: 50 mm to 700 mm/sec
- Minimum resolution: 6 mil
Specifications
- Optical Light Source: Infrared: 930 nm LED, Visible light: 660 nm LED
- Sensor: Photo diode
- Depth of field: 2 mm
- Resolution: 6 mils (0.15 mm) minimum
- Print Contrast: 0.6 minimum
- Scan Speed: 700 mm/Sec
- M.T.B.F: 25000 Hours
- Dimensions: 128 mm (L) x 53 mm (W) x 33 mm (H)
- Weight: 180 g
- Power Consumption: 35 mA for TTL 5V DC, 70mA for Decoded version
- Beep Sound Volume: >70dB
- Operating Temperature: 0° to 50°C
- Storage Temperature: -20° to 60°C
- Humidity: 0% to 95% RH non-condensing
- Mechanical Shock: 5 ft. (1.5 m) drop on concrete
- Symbologies Supported: Code 39, EAN-13, UPC-A, and more
Recommended Accessories
Category
- Cables, Connectors, and Adapters (2)
- Credit Card Reader Accessories (3)
- Power Device (2)
Recommended Accessories for Model: Unitech MS146-ITCB00-SG Credit Card Reader
Top Cables, Connectors, and Adapters Purchased With Unitech MS146-ITCB00-SG
-
Unitech 5610679000 Cables, Connectors, and AdaptersCable, Unitech RS232, 68", Straight, Beige, for MSR206Item on backorder — chat for lead time$18.20 -
Unitech 5611481000-R Cables, Connectors, and AdaptersCable, Unitech USB Data Transfer Cable for MSR206Item on backorder — chat for lead time$25.12
Top Credit Card Reader Accessories Purchased With Unitech MS146-ITCB00-SG
-
Unitech 3290001000 AccessoryPower Supply for the MSR206 only.Item on backorder — chat for lead time$24.29 -
Unitech 400140-Z010 AccessoryMS140 Mounting Brackets (set of 2)Item on backorder — chat for lead timePlease Call for Pricing or to Purchase -
Unitech 5200-381680G AccessoryMOUNTING KIT FOR MS146$6.50
Top Power Device Purchased With Unitech MS146-ITCB00-SG
-
Unitech 101000-0150 Power DevicePower Supply, Unitech Power Adapter, 110V for RS232 CCD ScannerItem on backorder — chat for lead time$33.15 -
Unitech 1010-601873G Power DevicePower Supply, Unitech Universal AC Adapter for ScannersItem on backorder — chat for lead time$13.00
Frequently Asked Questions
What barcode symbologies does the Unitech MS146 support?
The MS146 supports a comprehensive range of 1D barcode symbologies including Codabar, Code 11, Code 32, Code 39 (Standard and Full ASCII), Code 93, Code 128, Delta Code, EAN-8, EAN-13, Label Code IV and V, MSI Code, Plessey Code, Standard 2 of 5, UPC-A, and UPC-E. This makes it an excellent choice for reading identification badges and barcoded materials across multiple industries. We offer the MS146 as a reliable solution for diverse barcode reading needs.
What is the resolution capability of the MS146 barcode reader?
The Unitech MS146 offers a resolution of up to 6 mils (0.15 mm), enabling it to read fine barcode details on identification badges and other applications requiring precision scanning. This resolution ensures accurate reads even on densely printed or small barcode formats. Contact us today if you need a reader capable of handling high-resolution barcode applications.
How does the MS146 perform in harsh or wet environments?
The MS146 features a sealed optical system with IP54 rated sealing and a water-resistant base, making it suitable for challenging environmental conditions. The rugged ABS plastic housing and durable construction ensure reliable performance in various workplace settings. We offer the MS146 for environments where weather resistance and durability are essential requirements.
What connectivity options are available for the MS146?
The MS146 connects via a convenient USB interface with a 72-inch straight cord, making it easy to integrate into modern workstations and POS systems. The USB connection provides both data transmission and power delivery, simplifying installation. Visit barcodesinc.com to explore our full range of connectivity options for card readers and badge scanners.
What is the read accuracy rate of the Unitech MS146?
The MS146 delivers less than 1 error in 100,000 bits on cards conforming to ISO 7811 standards (not operator-induced), ensuring highly reliable barcode reading performance. This error rate makes it suitable for critical applications where accuracy is essential. We offer the MS146 as a cost-effective solution that does not compromise on reliability.
Can the MS146 read both visible and laminated identification badges?
Yes, the MS146 is available with an infrared optical system specifically designed to accurately read both visible and laminated badges. The infrared sealed optical system ensures consistent performance regardless of badge surface characteristics. Contact us today to select the infrared configuration that best fits your badge identification requirements.
